Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A276 SS316l |
| Minimum Order Quantity: | 100KG |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to client requirements/wooden case packing |
| Delivery Time: | 5-80 Days |
| Payment Terms: | L/C AT SIGHT, T/T |
| Supply Ability: | 1500 tons per month |
| Product Name: | Stainless Steel Round Bar | Standard: | AISI, ASTM, GB, DIN, EN |
|---|---|---|---|
| Material: | SS316L | Shape: | Round |
| Technique: | Hot Rolled, Cold Drawn | Package: | Standard Seaworthy Package |
| Application: | Electric Tower, Bridge Manufacturing, Chemical Engineering, Railway Construction, Etc. | ||
| High Light: | TP316L stainless steel round bar,ASTM A276 stainless steel round bar,ASTM A276 TP316L steel round bar |
||

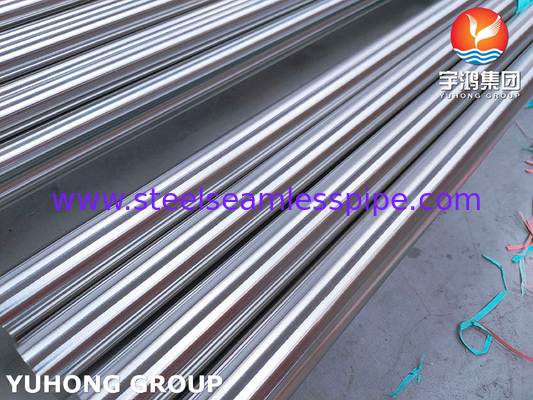

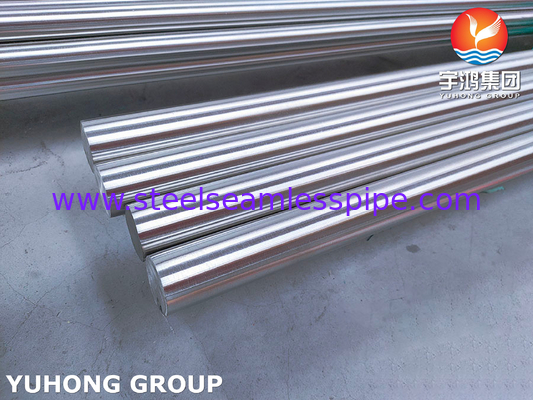

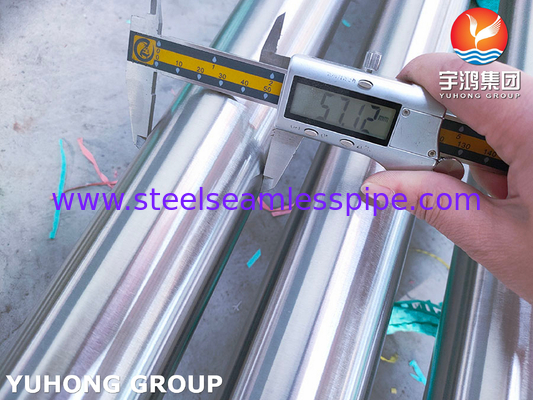

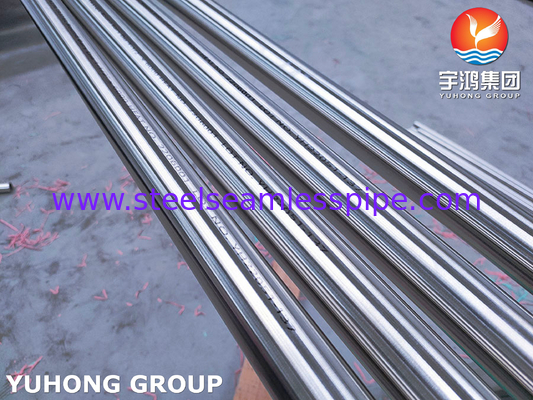

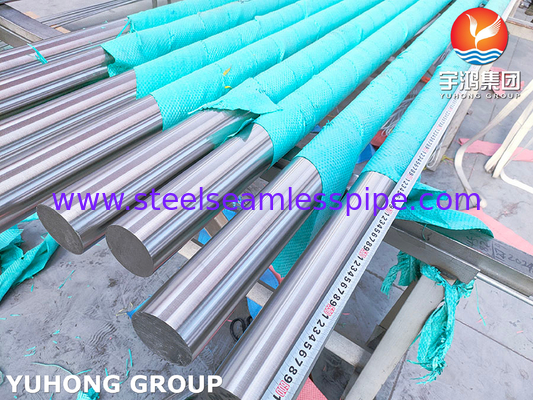

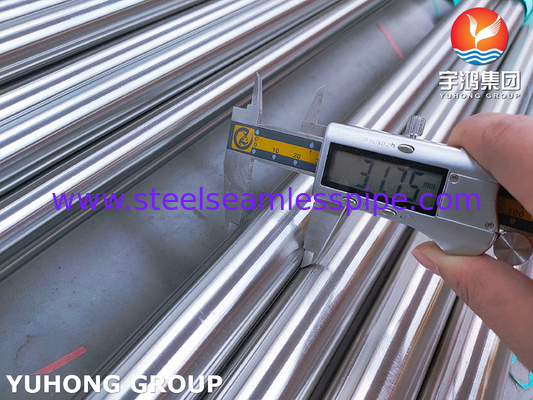

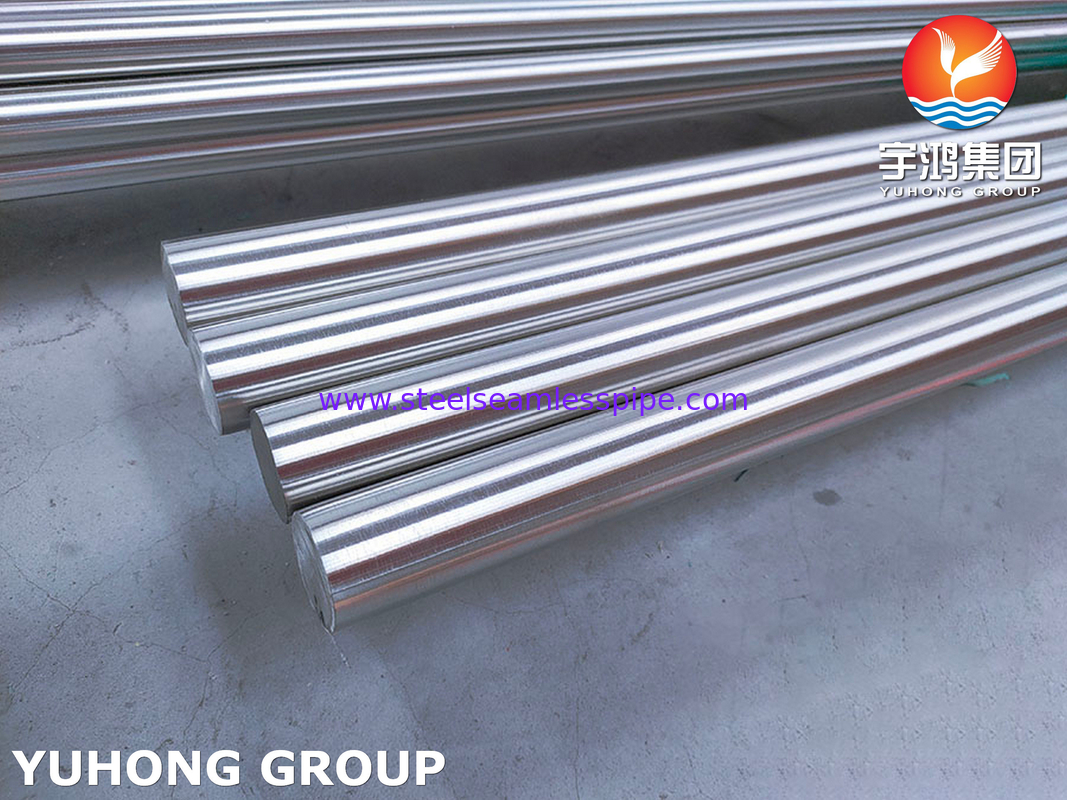

ASTM A276 TP316L Round Bar
YUHONG GROUP deal with stainless steel seamless pipe and tube already more than 33 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 65 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
Description
ASTM A276 TP316L is a specification for stainless steel round bars that are made from grade 316L stainless steel. This grade of stainless steel is a low carbon version of 316 stainless steel, which is highly corrosion resistant and has excellent mechanical properties.
The ASTM A276 specification covers hot-finished or cold-finished stainless steel bars in various shapes, including round bars. These bars are typically used in applications that require high strength, corrosion resistance, and good formability.
ASTM A276 TP316L round bars are commonly used in industries such as chemical processing, food processing, pharmaceuticals, and marine applications. They are available in various sizes and lengths to suit different application requirements
.
ASTM A276 TP316L round bars are a versatile and reliable option for a wide range of applications that require high-quality stainless steel bars.
The chemical composition of grade Stainless Steel 316L Round Bar is outlined in the following table
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
The mechanical properties of grade A276 316L Round Bar are displayed in the following table.
| Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
Physical properties of 316L grade stainless steel in the annealed condition
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Application
· Oil & Gas Industrires
· Chemical Industries
· Construction Industries
· In Offshore Pipelines, Pipe Works
· Petrochemical Industry
· Shipbuilding Industries
· Hydraulic Applications
· Piping Systems
