| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, DNV, GL, LR, SGS, IEI |
| Model Number: | ASTM A335 P11,ASTM A335 P22, ASTM A335 P5, ASTM A335 P9, ASTM A335 P91 |
| Minimum Order Quantity: | 100KGS |
|---|---|

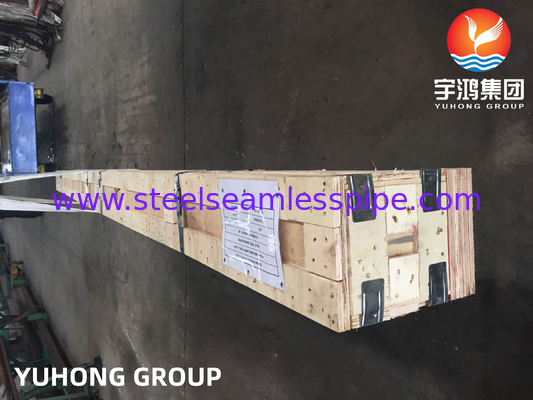

| Packaging Details: | BUNDLE,PLYWOOD CASE |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800Tons/ month |
| MATERIAL: | P1, P11, P22, P23, P5, P9, P91, P92 | SURFACE: | BLACK VANISH |
|---|---|---|---|
| STANDARD: | ASTM A335, ASME SA335 | OD: | 1/2" TO 48 " |
| LENGTH: | Single Random, Double Random & Cut Length. | END: | PLAIN, BEVELED |
| NDT: | UT , ET, HT, PT , MT | Application: | Heating, Furance , Boiler, Power Plant, Petrochemical , Energy |
| High Light: | High Temperature Steel Seamless Pipe,A335 P11 Steel Seamless Pipe |
||
ASTM A335 P11 Seamless Ferritic Alloy Steel Seamless Pipe For High Temperature Service
Chromium and molybdenum are important elements of P11. Chromium, or chrome, improves high-temperature strength, increases oxidation resistance and raises the tensile, yield and hardness at room temperatures. Molybdenum increases the strength, elastic limit, resistance to wear, impact qualities and hardenability. It increases the resistance to softening, restrains grain growth and makes chromium steel less susceptible to embrittlement. Moly is also the most effective additive for increasing high temperature creep strength, or creep resistance. It also enhances the corrosion resistance of steel and inhibits pitting.
| Alloy steel seamless pipe/tube | |
| PIPES & TUBES | : ASTM A335, ASTM A213, ASTM A691 |
| PIPES FITTINGS | : ASTM A234 |
| FITTINGS & FLANGES | : ASTM A182 |
| GRADES | : P1/P5/P9/P11/P12/P22/P91 & T5/T9/T11/T22/T91 |
| FORM (PIPES) | : SEAMLESS / E.R.W / EFSW |
|
Yuhong Special Steel is Exporters & Supplier of alloy steel seamless pipe, alloy steel pipe gr p5, alloy steel pipe gr p11, alloy steel pipe gr p9, alloy steel pipe gr p22, alloy steel pipe gr p91, ASTM A335, ASTM A213, ASTM A691. |
|
| Available Shapes : | |
|
Tubes & Pipes (SEAMLESS ) up to 30". Tubes & Pipes (ERW ) up to 60". Sheets / plates up to 150 MM. Rod / Bar up to 350 MM. Circle up to 1000 & Above as per your requirements. thickness up to 200 MM & Above as per requirements. |
|
Alloy Steel Seamless Pipe
Size : 1/2" TO 24 "IN OD & NB
Schedule: SCH20, SCH30, SCH40.
Type : Seamless / Fabricated
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.
MATERIALS :
Alloy Steel Seamless Pipe – AS Seamless Pipe
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P91
Alloy Steel Pipe A 335 /ASME SA335 P5
Size : 1/2" TO 24 "IN OD & NB
Schedule: SCH20, SCH30, SCH40.
Type : Seamless / Fabricated
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.
MATERIALS :
Alloy Steel Pipe A335 P5 – AS Pipe A335 P5
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P91
Alloy Steel Pipe A 335 / ASME SA335 P9
Size : 1/2" TO 24 "IN OD & NB
Schedule: SCH20, SCH30, SCH40.
Type : Fabricated / Seamless
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.
MATERIALS :
Alloy Steel Pipe A335 P9 – AS Pipe A335 P9
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P91
Alloy Steel Pipe A 335 / ASME SA335 P11
Size : 1/2" TO 24 "IN OD & NB
Schedule: SCH20, SCH30, SCH40.
Type : Fabricated / Seamless
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.
MATERIALS :
Alloy Steel Pipe A335 P11 – AS Pipe A335 P11
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P91
Alloy Steel Pipe A 335/ ASME SA335 P12
Size : 1/2" TO 24 "IN OD & NB
Schedule: SCH20, SCH30, SCH40
Type : Fabricated / Seamless
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.
MATERIALS :
Alloy Steel Pipe A335 P12 – AS Pipe A335 P12
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P97
Alloy Steel Pipe A 335/ ASME SA335 P22
Size : 1/2" TO 24 "IN OD & NB
Schedule: SCH20, SCH30, SCH40
Type : Fabricated / Seamless
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.
MATERIALS :
Alloy Steel Pipe A335 P22 – AS Pipe A335 P22
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P91
Alloy Steel Pipe A 335/ ASME SA335 P91
Size : 1/2" TO 24 "IN OD & NB
Schedule: SCH20, SCH30, SCH40.
Type : Welded / Fabricated / Seamless
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.
MATERIALS :
Alloy Steel Pipe A335 P91 – AS Pipe A335 P91
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P91
Chemical composition(%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo |
| P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P22 | 0.05-0.16 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 |
| P5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 |
| P9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.020/0.010 | 0.020/0.010 | 0.02-0.50 | 8.00-9.50 | 0.85-1.05 |
| P92 | 0.07-0.13 | 0.30-0.60 | 0.020/0.010 | 0.020/0.010 | ≤0.50 | 8.50-9.50 | 0.30-0.60 |
Mechanical properties
| Grade | Tensile strength | Yield strength | Elongation |
| P11, P22, P5, P9 | ≥415 | ≥205 | ≥30/20 |
| P91 | ≥585 | ≥415 | ≥20 |
| P92 | ≥620 | ≥440 | ≥20 |
