Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | Low Fin Tube T-Type Fin Tube |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Packaging Details: | PLYWOOD CASE |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| MATERIAL: | TP304,TP304L,TP316L,TP317L | OD: | 20mm OD Min To 219mm OD Max. |
|---|---|---|---|
| WT: | Minimum 2mm Up To 16mm | Titanium: | Gr. 2,Gr.7,GR.12 |
| Aluminum: | Alu.1100,Alu.1060 | Length: | Customized |
| Fin Height Tolerance: | Customized | Fin Length: | Customized |
| Fin Material: | Stainless Steel, Carbon Steel, Alloy | Base Tube Materical: | Stainless Steel, Carbon Steel, Alloy |
| High Light: | Stainless Steel Finned Tube,Low Finned Tube,Heat Exchanger Finned Tube |
||

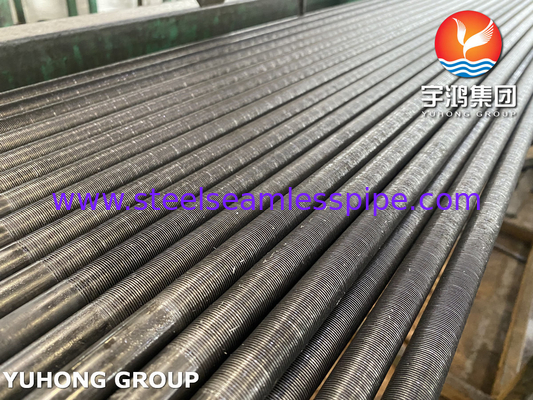

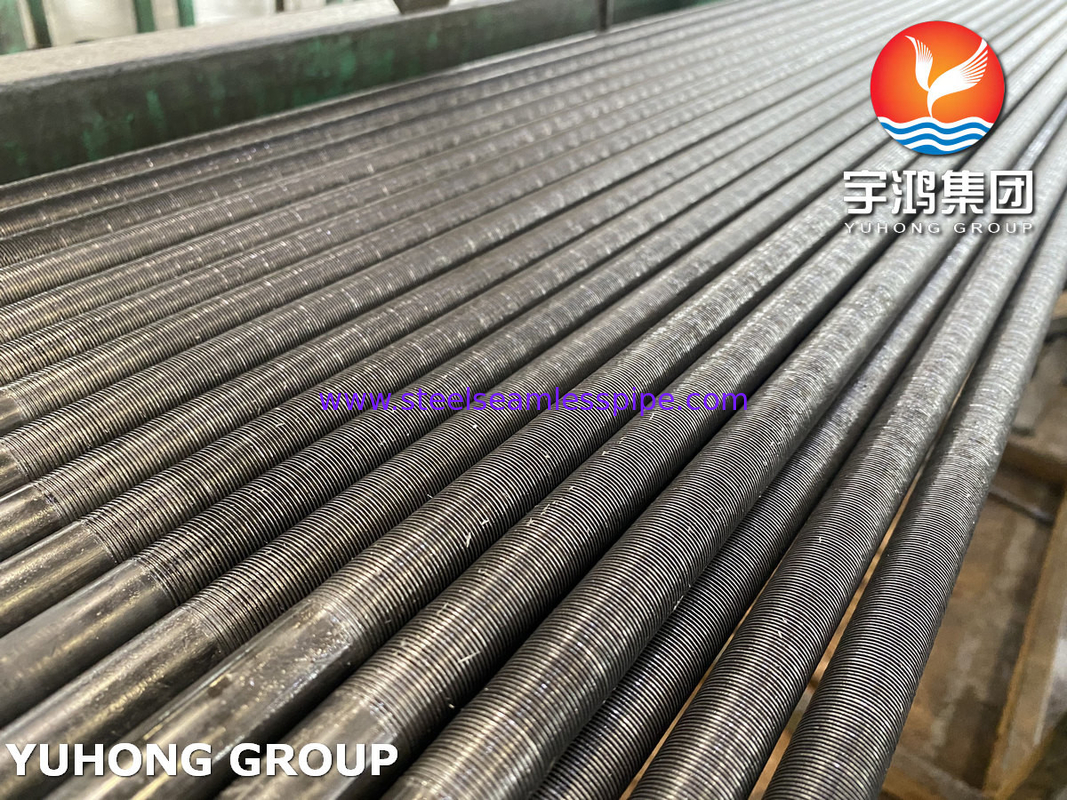

Low Finned Tube Stainless Steel Extruded Fin Tube For Heat Exchanger
Overview
Aluminium extruded finned tube adopts the form of base tube covered aluminium tube (base tube can be carbon steel, stainless steel, copper) to form the fins through machine extrusion, and the fin base and the outer wall of the tube are tightly fitted, and the control of the finned tube can make the finned tube have high heat transfer coefficient and heat transfer performance.
Aluminium extruded finned tube, also known as "Integral finned tube", adopts the form of base tube clad with aluminium tube (base tube can be carbon steel, stainless steel, copper), and is extruded by machine to form the fins, and the fin base is tightly fitted with the outer wall of the tube, and the control of this kind of finned tube can make the finned tube have a high heat transfer coefficient and heat transfer performance. Extruded finned tube can be rolled from iron tube, copper tube or aluminium tube composite, which has the advantages of close bonding, small thermal resistance, good heat transfer performance, high strength, small flow loss, strong corrosion resistance, not easy to be deformed under long term hot and cold conditions, and long service life.
What's Fin Tube ?
Low-fin (integral) tube is an extruded tube composed of short and low fins, and a high-efficiency heat-exchange tube type in which threaded fins are formed on the outer surface of the heat-exchange tube by rolling. The tube and fin are in the same piece of tube, also known as "N" fin type.
Because Low Finned Tube is an integral tube, there is only one material for the tube and fins
We offer you a wide range of materials and can expand our offering at any time to meet your specific needs in terms of thermal conductivity, mechanical properties or corrosion resistance.
Extruded finned tube advantages
Compared with the common wound finned tube, the contact thermal resistance is stable with the change of temperature, so the heat transfer performance of the bimetallic aluminum extruded finned tube is better than that of the spiral finned tube in the limit wall temperature range.
In addition, compared with the spiral tube, the bimetallic aluminum extrusion fin tube has outstanding corrosion resistance and high strength, it can withstand the water pressure cleaning of 4.0MPa, and the fin will still not fall off the base of the bimetallic aluminum extrusion tube. The pipe can be selected according to the corrosion of the fluid in the pipe and the processing technology. The base tube can be carbon steel, copper, stainless steel, etc.
The performance degradation of a heat exchanger is essentially due to two phenomenons which occurs over time :
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1-5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6-2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8-30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8-30 | 5-35 | φ5-20 | |
The common application fields are:
