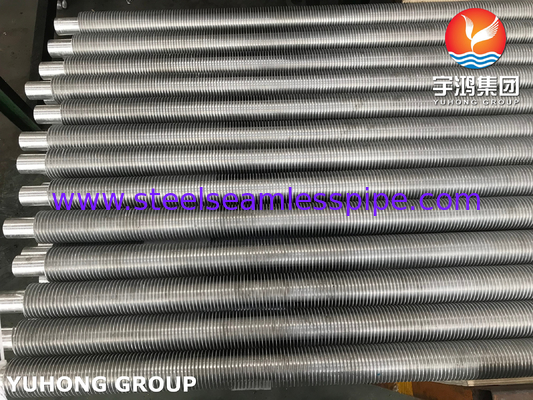

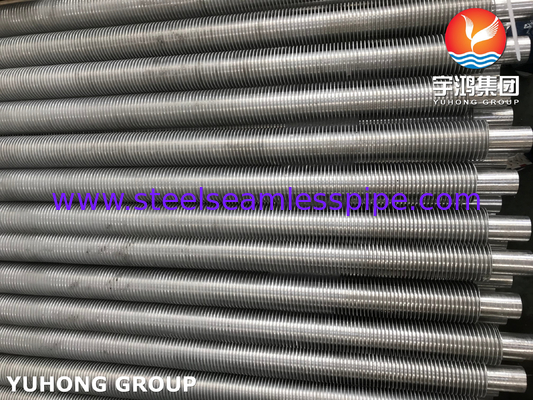

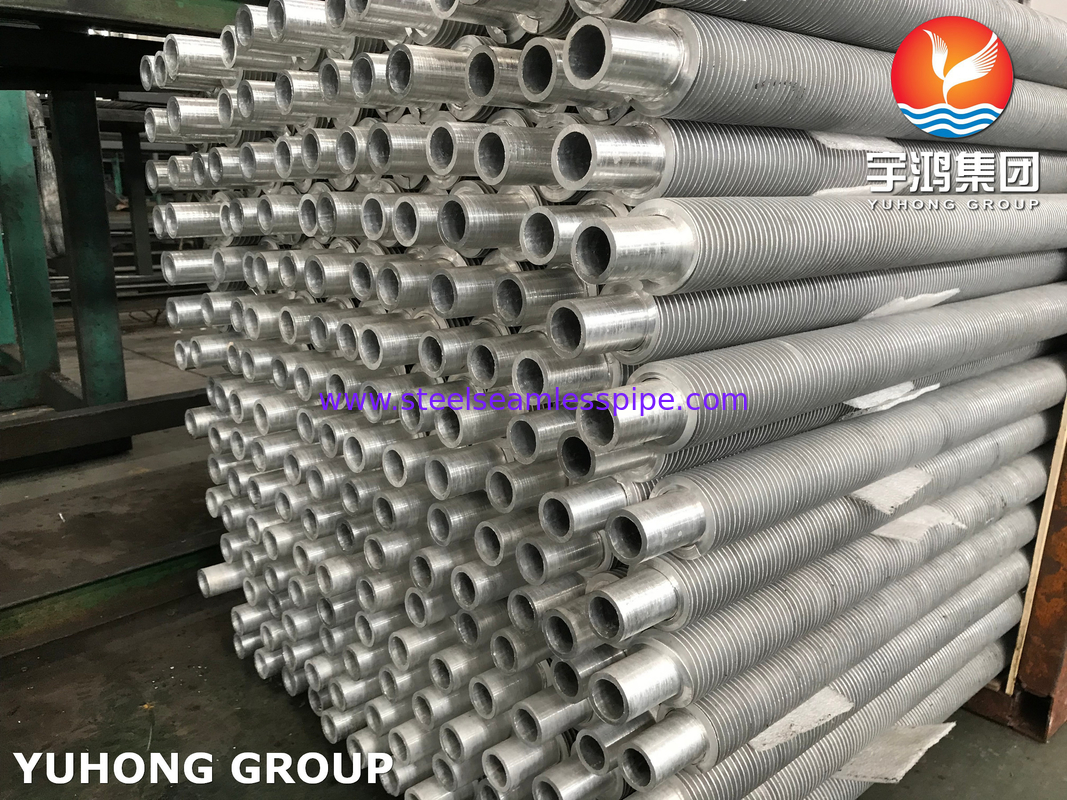

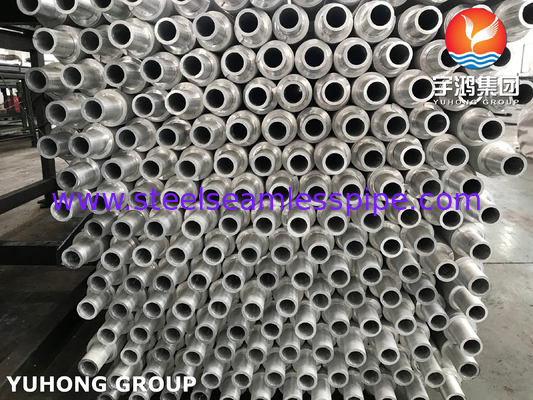

Stainless Steel High Frequency Welding Finned Tube Spiral Solid Finned Tube For Heaters

Stainless Steel High Frequency Welding Finned Tube, Spiral Solid Finned Tube For Heaters

High Frequency Welded Finned Tube, also known as Solid Fin Tube, uses carbon steel, alloy steel or stainless steel strip directly welded to tube surface by HFW, which can improve heat transfer efficiency much more than bare tube. Fin type have Serrated fin and flat fin.

Stainless steel high frequency welding spiral finned tubes are a type of heat exchanger tube that is used in various industrial applications. These finned tubes are made of high-quality stainless steel and feature a spiral fin design that increases the heat transfer efficiency of the tube. The high-frequency welding process used to manufacture these tubes ensures a strong and durable bond between the fins and tube, providing excellent thermal conductivity and resistance to corrosion, which makes them ideal for use in applications where high temperatures and corrosive environments are present. The spiral fin design of these tubes also provides a larger surface area for heat transfer, allowing for more efficient heat exchange between the fluid inside the tube and the surrounding environment. This results in improved energy efficiency and lower operating costs for industrial processes. Stainless steel high frequency welding finned tubes are a reliable and efficient solution for a wide range of heat exchange applications in industries such as petrochemical, power generation, and HVAC. With their high-quality construction and superior performance, these HFW finned tubes are a cost-effective choice for any heat transfer system.

Base Tube And Fin Materials:

Stainless Steel: ASME SA213 TP304, TP304L, TP316, TP316L, TP321, TP310S, TP317

Carbon Ssteel: ASME SA106 Gr.B Gr.C, ASME SA179, ASME SA192

Alloy Steel: ASME SA213 T1, T2, T5, T9, T11, T12, T22, T91, T92; ASME SA335 PP1, P2, P5, P9, P11, P22, P91, P92

Features Of HFW Finned Tubes:

1. High Frequency Welding: The finned tube is manufactured using high frequency welding technology, which ensures a strong and durable bond between the fin and the tube. This results in a reliable and efficient heat transfer performance.

2. Stainless Steel Construction: The finned tube is made of high-quality stainless steel, which offers excellent corrosion resistance and long-lasting durability. Stainless steel is also known for its high heat transfer efficiency, making it an ideal material for finned tube applications.

3. Enhanced Heat Transfer: The finned design of the tube increases the surface area available for heat transfer, allowing for efficient cooling or heating of fluids. This results in improved energy efficiency and reduced operating costs.

4. Versatile Applications: Stainless steel high frequency welding finned tubes are suitable for a wide range of applications, including HVAC systems, heat exchangers, boilers, and industrial process equipment. They can be customized to meet specific requirements and performance needs.

5. Easy Installation and Maintenance: The finned tube is easy to install and requires minimal maintenance, making it a cost-effective solution for heating and cooling applications. The stainless steel construction also ensures long-term performance with minimal maintenance requirements.

6. High Quality Standards: Stainless steel high frequency welding finned tubes are manufactured to high quality standards, ensuring reliable performance and durability in demanding operating conditions. They are designed to meet industry specifications and regulations for safety and performance.

7. Cost-Effective Solution: Stainless steel high frequency welding finned tubes offer a cost-effective solution for heat transfer applications, providing efficient performance and long-term durability. They are a reliable and efficient option for a wide range of industrial and commercial applications.

Applications Of HFW Finned Tubes:

1. Heat Exchangers: Stainless steel high frequency welding spiral finned tubes are commonly used in heat exchangers due to their high thermal efficiency and corrosion resistance. They are used in various industries such as petrochemical, power generation, HVAC, and food processing.

2. Boilers: Stainless steel high frequency welding spiral finned tubes are also widely used in boilers for their ability to increase the heat transfer surface area, resulting in improved efficiency and reduced fuel consumption.

3. Air Coolers: These tubes are used in air coolers to transfer heat between a hot fluid and ambient air. The spiral fin design increases the heat transfer efficiency, making them ideal for applications where compact size and high performance are required.

4. Refrigeration Systems: Stainless steel high frequency welding spiral finned tubes are used in refrigeration systems to transfer heat between the refrigerant and the surrounding environment. The fins help to improve the heat transfer efficiency, allowing for faster cooling and improved energy efficiency.

5. Waste Heat Recovery Systems: These tubes are used in waste heat recovery systems to capture and utilize waste heat from industrial processes. The high thermal efficiency of stainless steel spiral finned tubes makes them an ideal choice for such applications.

6. Power Plants: Stainless steel high frequency welding spiral finned tubes are used in power plants for various heat transfer applications, such as condensers, economizers, and air preheaters. Their corrosion resistance and high thermal conductivity make them a popular choice in these demanding environments.

If you have requirements about finned tubes, please send your detailed enquiry including:

• Base Tube Material

• Base Tube Size (OD, WT, Length)

• Fin Material

• Fin Type(Embedded, Extruded, Wound, HFW, Serrated, Low Fin Tube, Etc.)

• Fin Height

• Fin Thickness

• Fin Pitch

• Lenght Of Unfinned Ends

• Quantity

• Drawings(If you have)
