Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS |
| Model Number: | ASTM B111 C68700 |
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Specification: | ASTM B111 | Grade: | C68700 |
|---|---|---|---|
| Surface: | Polished | Test: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test |
| Finish: | Cold Drawn | Application: | Air Condition Or Refrigerator,Water Tube,water Pipe,Oil Cooler Pipe,Water Heater |
| High Light: | C68700 Seamless U Bend Tube,Good Thermal Conductivity U Bend Tube,ASTM B111 C68700 U Bend Tube |
||

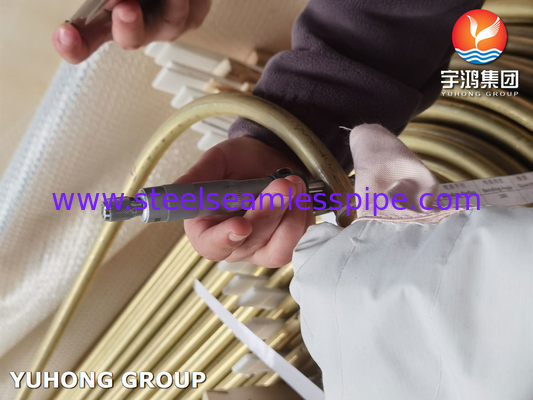

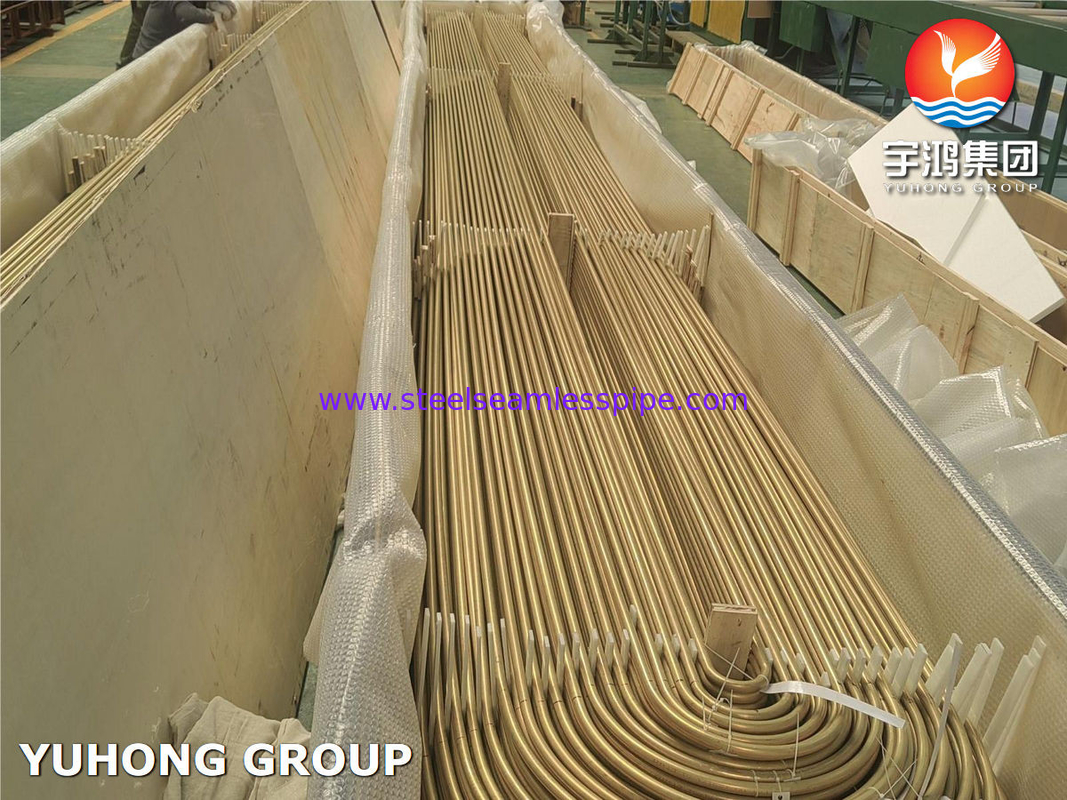

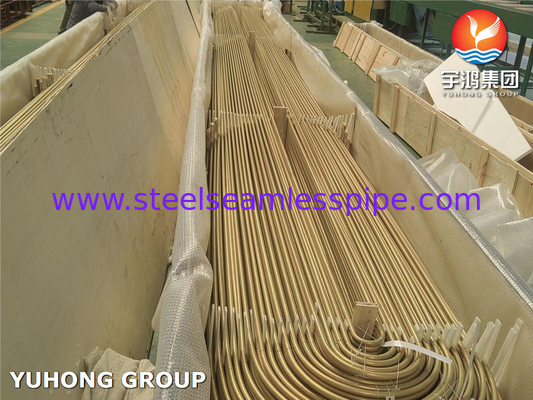

Good Thermal Conductivity ASTM B111 C68700 Seamless U Bend Tube
What is ASTM B111 C68700 tube?
B111 C68700 copper alloy seamless condenser tube is a high-performance copper alloy tube that is widely used in refrigeration equipment such as condensers and evaporators. Due to its excellent thermal conductivity, corrosion resistance and good mechanical properties, it has been widely used in the refrigeration industry.
This copper alloy is mainly composed of copper, aluminum, nickel and other elements, of which copper has the highest content, reaching more than 95%. The addition of aluminum and nickel not only improves the strength and hardness of copper alloy, but also enhances its corrosion resistance. In addition, a small amount of iron, manganese, silicon and other elements are added to the copper alloy to further improve its overall performance.
C68700 Chemical Composition:
| Chemical Composition | |
| Elements | Composition, % |
| Cu, incl. Ag | 76.0-79.0 |
| Sn | – |
| Al | 1.8-2.5 |
| Ni, incl. Co | – |
| Pb | 0.07 max |
| Fe | 0.06 max |
| Zn | Balance |
| Mn | 0.02-0.06 |
Equivalent Material:
|
Material Designation |
Corresponding Material Symbol |
||||
|
GB/T8890 |
ASTM B111 |
BS2871 |
JIS H3300 |
DIN1785 |
|
|
Aluminums Brass |
HAL77-2 |
C68700 |
CZ110 |
C6870 |
CuZn20Al2 |
Tensile Requirements:
| Copper or Copper Alloy UNS NO. | Temper Designation | Tensile Strength | Yield Strength | |
| Standard | Former | Min. ksi | Min. ksi | |
| C68700 | O61 | Annealed | 50 | 18 |
ASTM B111 C68700 Mechanical Properties:
| Copper or Copper Alloy UNS No. | Temper Designation | Annealing temperature, °C | Tensile Strength, min | Yield Strength, min | HV | |||
| Code | Name | ksi | Mpa | ksi | Mpa | |||
| C68700 | O61 | Annealed | above 650 | 50 | 345 | 18 | 125 | 150 |
Material Testing
-Mechanical Testing Such as Tensile of Area
-Hardness Test
-Chemical Analysis – Spectro Analysis
-Positive Material Identification – PMI Testing

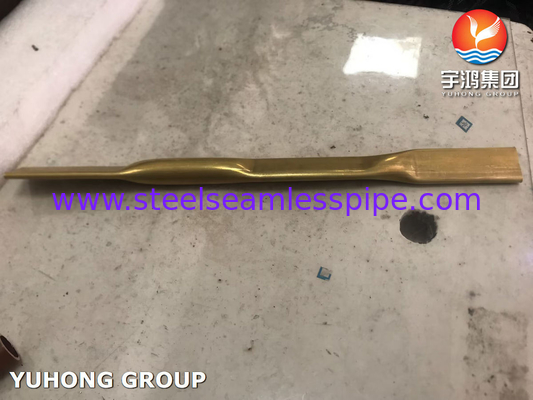

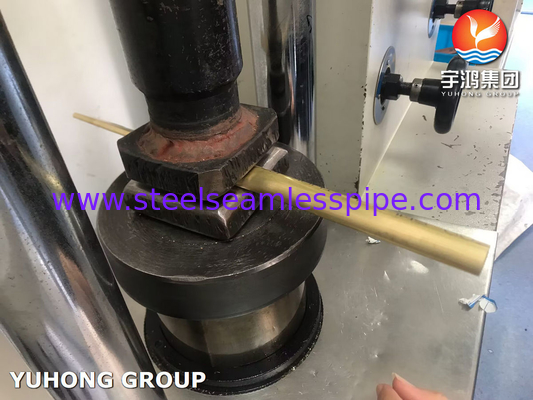

-Flattening Test
-Micro and MacroTest
-Pitting Resistance Test
-Flaring Test
-Intergranular Corrosion (IGC) Test
In addition to refrigeration equipment, B111 C68700 copper alloy seamless condenser tubes can also be used in other fields. For example, in petrochemical, marine engineering and other fields, corrosion-resistant, high-strength copper alloy pipes are also needed.
B111 C68700 copper alloy seamless condenser tube has become a leader in copper alloy tubes due to its excellent performance and wide range of applications.
Applications:
-Food Processing Industry
-Fabrication Industry
-Oil and Gas Industry
-Chemical Industry
-Plumbing
-General Purpose Applications
-Heating
-Water Supply Systems
-Power Plant
-Paper & Pulp Industry
