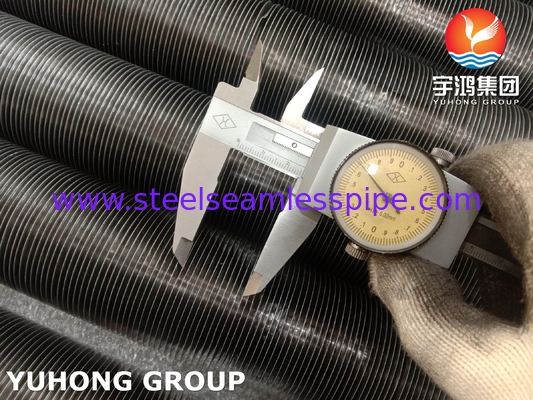

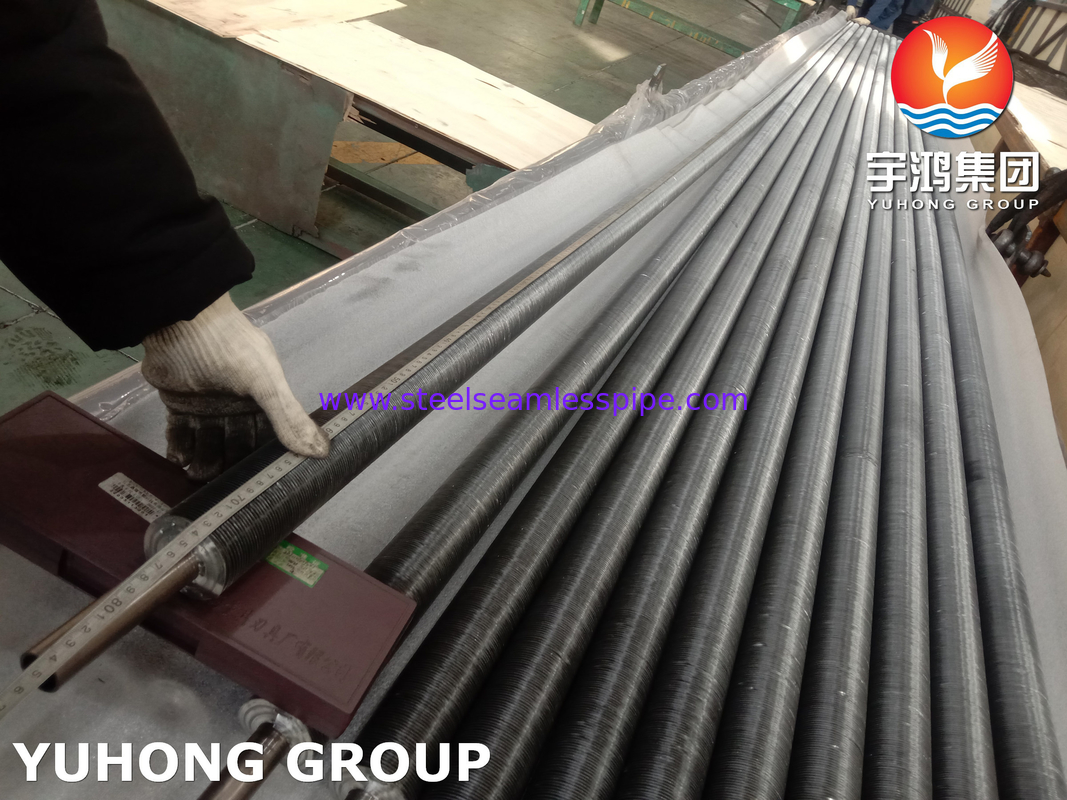

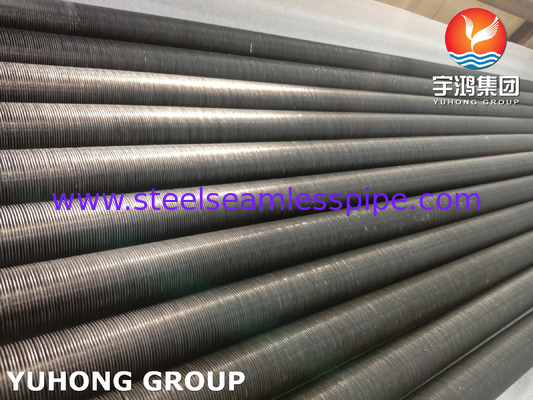

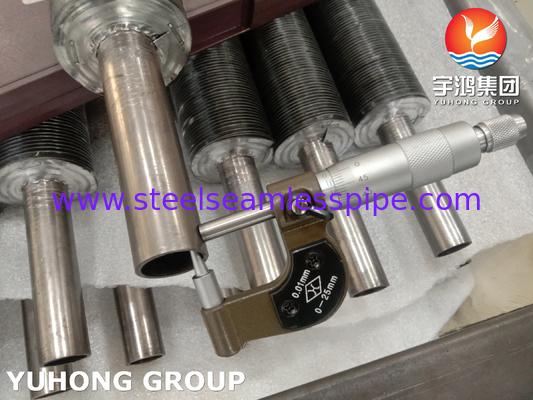

Embedded G Type Finned Tube ASTM B163 UNS N04400 Nickel Alloy Tube With Aluminum Fins

Embedded G Type Finned Tube, ASTM B163 UNS N04400 Nickel Alloy Tube with Aluminum Fins

The base tube material is Monel400. Then the fin strip is wound into a machined groove and securely locked into place by back filling with base tube, which ensuring that maximum heat transfer is maintained at high tube metal temperatures. Monel400 is a corrosion-resistant alloy. This alloy has excellent corrosion resistance. It generally doesn’t produce stress corrosion cracks and has good cutting performance. After finning services, the alloy tube with GType fins can have better heat transfer efficiency than normal straight base tube.

ASTM B163 UNS N04400 is a specification for nickel-iron-chromium alloy tubes, commonly known as Monel 400. Embedded G type finned tubes are tubes with fins that are attached to the outer surface of the tube in a G-shaped pattern. These finned tubes are used in various heat transfer applications where increased surface area is needed for enhanced heat transfer efficiency. The G type fins provide a larger surface area compared to plain tubes, allowing for better heat transfer between the fluid inside the tube and the surrounding environment. The use of Monel 400 alloy in these finned tubes provides excellent corrosion resistance and high strength, making them suitable for use in harsh environments. The ASTM B163 specification ensures that the tubes meet certain quality and dimensional standards to ensure their performance and longevity in service. ASTM B163 UNS N04400 embedded G type finned tubes are a reliable and efficient choice for heat transfer applications in industries such as chemical processing, petroleum refining, and power generation.

Equivalent Material:

Some features of Embedded G Type Finned Tube include:

1. High Heat Transfer Efficiency: The finned design increases the surface area of the tube, resulting in improved heat transfer performance.

2. Enhanced Strength and Durability: The fins are securely embedded into the tube, providing additional strength and durability.

3. Corrosion Resistance: The materials used in embedded G type finned tubes are often resistant to corrosion, making them suitable for use in harsh environments.

4. Compact Design: The embedded fins allow for a compact design, making them ideal for applications where space is limited.

5. Easy Installation: Embedded G type finned tubes can be easily installed using standard tube fittings.

6. Versatile Applications: These tubes can be used in a wide range of applications, including heat exchangers, air coolers, and refrigeration systems.

7. Cost-effective: The high heat transfer efficiency of embedded G type finned tubes can help reduce energy costs and improve overall system performance.

Chemical Requirements:

Mechanical properties:

Applications:

Embedded G Type Finned Tubes are commonly used in various industries for efficient heat transfer applications. Some of the common applications of embedded G type finned tubes include:

1. Heat exchangers: Embedded G type finned tubes are used in heat exchangers to increase the surface area for heat transfer. They are commonly used in air-cooled heat exchangers, where the fins help to enhance heat transfer between the hot fluid flowing inside the tube and the surrounding air.

2. HVAC systems: Embedded G type finned tubes are used in HVAC systems for heating, ventilation, and air conditioning applications. They are commonly used in heat exchangers, coils, and radiators to improve the efficiency of heat transfer and enhance the overall performance of the system.

3. Boilers: Embedded G type finned tubes are used in boilers to increase the heat transfer efficiency and improve the overall thermal performance of the system. The fins help to increase the surface area available for heat transfer, resulting in improved energy efficiency and reduced operating costs.

4. Refrigeration systems: Embedded G type finned tubes are used in refrigeration systems for heat exchange applications. They are commonly used in evaporators and condensers to enhance heat transfer and improve the overall efficiency of the system.

5. Power plants: Embedded G type finned tubes are used in power plants for heat transfer applications. They are commonly used in heat exchangers, condensers, and boilers to improve the efficiency of heat transfer and enhance the overall performance of the plant.

Overall, Embedded G Type Finned Tubes are versatile components that are widely used in various industries for efficient heat transfer applications. Their ability to increase the surface area available for heat transfer makes them an ideal choice for enhancing the thermal performance of heat exchange systems.
