Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China, Korea |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | StuddedTube , Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiable |

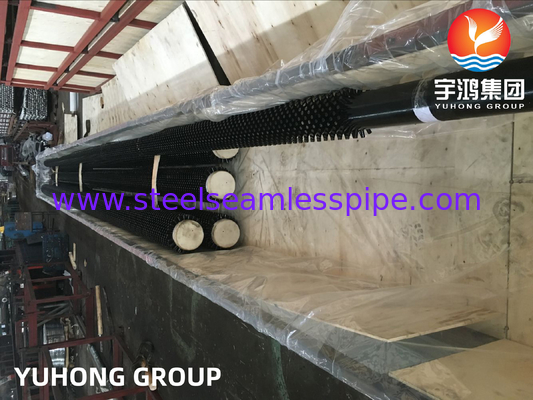

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Base Tube Grade: | ASME SA335 P9, ASTM A335 P9, ASME SA213 T9, ASTM A213 T9 | Stud Material Grade: | 1Cr13, 2Cr13, 3Cr13, 11Cr, 13Cr, SS409, SS410 , SS304 , Carbon Steel , Alloy Steel |
|---|---|---|---|

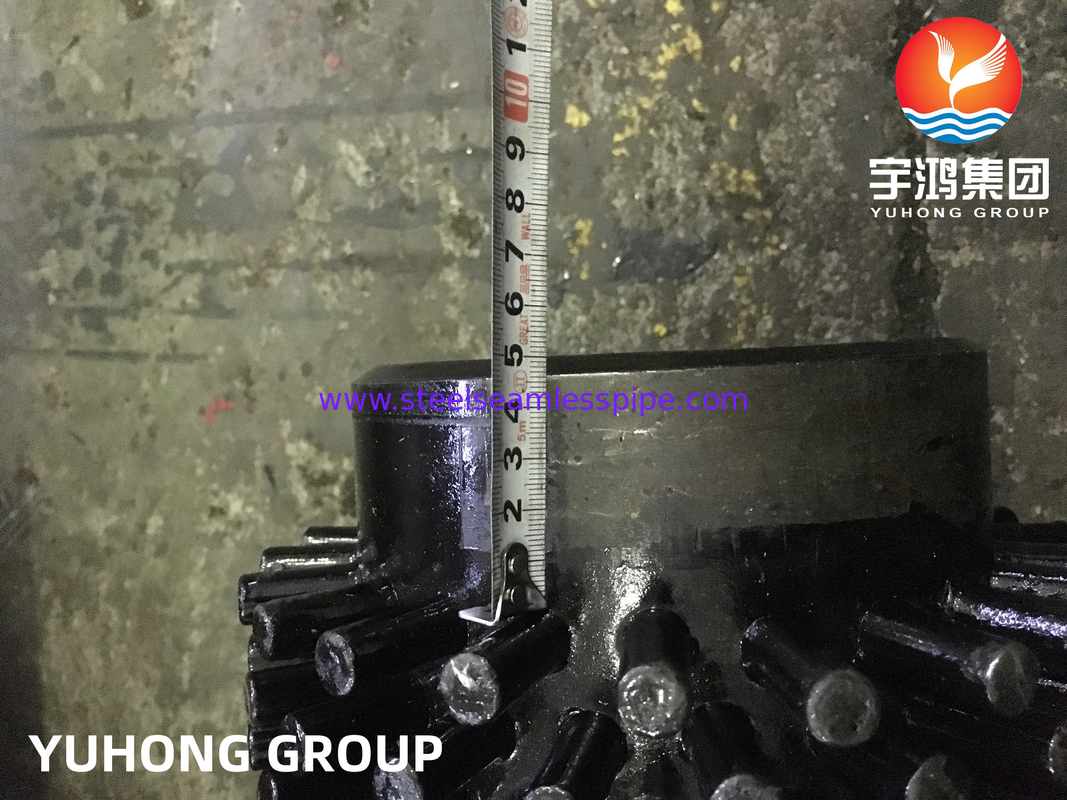

| Stud Hight: | 1/2inch(12.7mm), 5/8inch（15.875mm）, 3/4inch (19.05mm), 7/8inch(22.23mm), 1inch (25.4mm),... | Stud Dia.: | 12.7mm, 15.88mm ,... |
| Fin Type: | Solid Fin , High Frequence Weldding , HFW, .. | Application: | Oil Furnace Tube , Steam Furnace Tube, Reforming Tube |
| Color: | Black | Material: | Printed |
| High Light: | Studded Tube Alloy Steel Pipe,Steam Reforming Furnace Alloy Steel Pipe,SS410 Alloy Steel Pipe |
||

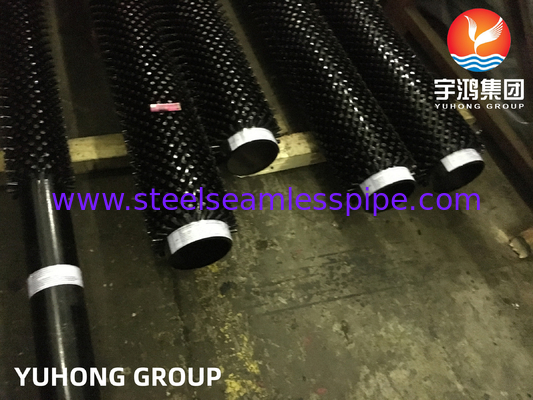

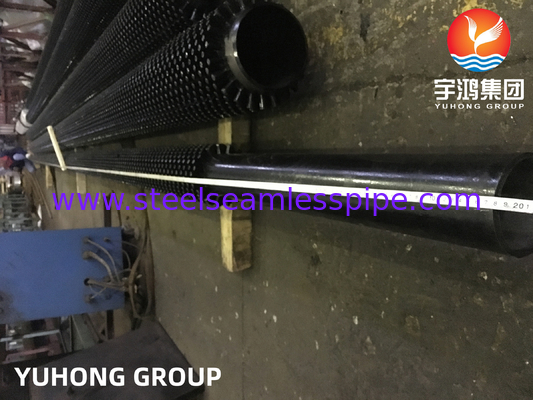

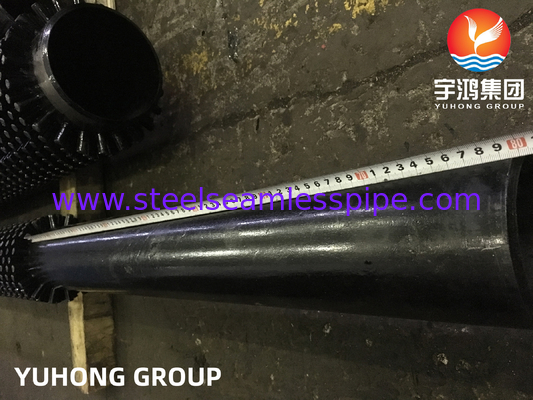

ASME SA335 P9 Alloy Steel Pipe with 13 Cr (SS410) Steam Reforming Furnace Studded Tube
| Base Tube Grade: | SATM A106 Gr. A, Gr. B , Gr. C , 20#, P11, P22, P5, P9, P91 | Standard: | ASTM A213, ASTM A312, ASTM A335 , ASTM A790 , ASTM A106, ASME SA213, ASME SA312, ASME SA376, ASME SA790 , ASME SA106, ASME SA335 |
|---|---|---|---|
| Stud Material Grade: | 1Cr13, 2Cr13, 3Cr13, 11Cr, 13Cr, SS409, SS410 , SS304 , Carbon Steel , Alloy Steel | Stud Hight: | 1/2inch(12.7mm), 5/8inch(15.875mm), 3/4inch (19.05mm), 7/8inch(22.23mm), 1inch (25.4mm),... |
| Stud Dia.: | 12.7mm, 15.88mm ,... | Fin Type: | Solid Fin , High Frequence Weldding , HFW, .. |
| Fin Tube | |||||||||
| Base Tube Part | Fin Part | ||||||||
| Specification | Material Grade | Major Sizes | Material Grade | Fin Type | Fin Hight | Fin Thickness | Fin Qty | Fin Dia. | Bare Length |
| ASTM A213 ; ASME SA213; ASTM A249; ASME SA249; ASTM A269; ASME SA269; ASTM A312; ASME SA312; ASTM A376; ASME SA376; ASTM A789; ASME SA789; ASTM A790; ASME SA790 | TP304, TP304L, TP304H, TP310S, TP310H, TP316L, TP317L, TP321, TP321H, TP347, TP347H , S31803, S32205, S32750, S32760 | Tube Size: 15.875 X 1.65; 15.875 X 2.11; 15.875 X 2.77; 19.05 X 1.65; 19.05 X 2.11; 19.05 X 2.77; 25.4 X 2.11; 25.4 X 2.77; 25.4 X 3.05; 25.4 X 3.4; 31.75 X 2.11; 31.75 X 2.77; 31.75 X 3.05; 31.75 X 3.4; 38.1 X 2.11; 38.1 X 2.77; 38.1 X 3.05; 38.1 X 3.4; 44.45 X 2.11; 44.45 X 2.77; 44.45 X 3.05; 44.45 X 3.4; 44.45 X 3.81; 44.45 X 4.57; 50.8 X 2.11; 50.8 X 2.77; 50.8 X 3.05; 50.8 X 3.4; 50.8 X 3.81; 50.8 X 4.57; 57.15 X 2.11; 57.15 X 2.77; 57.15 X 3.05; 57.15 X 3.4; 57.15 X 3.81; 57.15 X 4.57; 63.5 X 2.11; 63.5 X 2.77; 63.5 X 3.05; 63.5 X 3.4; 63.5 X 3.81; 63.5 X 4.57; Pipe Size: 2 1/2" SCH40 (73.03 X 5.16); 2 1/2" SCH80 (73.03 X 7.01); 3" SCH40 (88.9 X 5.49); 3" SCH40 (88.9 X 7.62); 3 1/2" SCH40 (101.6 X 5.74); 3 1/2" SCH80 (101.6 X 8.18); 4" SCH40 (114.3 X 6.02); 4" SCH80 (114.3 X 8.56); 5" SCH40 (141.3 X 6.55); 5" SCH80 (141.3 X 9.27); 6" SCH40 (168.3 X 7.11); 6" SCH80 (168.3 X 10.97); 8" SCH40 (219.1 X 8.18); 8" SCH80 (219.1 X 12.7); Length Max.: 25M/PC; other sizes depend on customer requst | Stainless Steel: SS304, SS304L, SS316L, SS317L, SS347, SS310; SS409 (1CR12), SS410(1Cr13); Carbon Steel(CS) , Alloy Steel: ASTM A387 Gr.A, Gr.B, Gr.C; Aluminum ASTM A209 / ASME SA209 AL1060, Gr.6061; ASME SA210/ ASTM A210 AL1060 , AL1100, Gr.6061, Gr.6063, ASTM A221/ ASME SA221 AL 1060 , Gr.6061, Gr.6063 Alloy Steel: P11, P22, P5, P9 | Solid Fin : High Frequency Weldding(HFW), Serrated Fin Tube, Studded Tube /Pin Tube, Square Fin Tube, H Type Fin tube, HH type Fin tube; Embedded : G Type Fin Tube; Wound: L, LL, KL ; Extruded; Thread Fin tube ; Low Fin tube; Corrguated Fin Tube; Bamboo Tube; U bend Fin tube | 1.6mm ~60mm | 0.2mm~3.0mm | Depend on client request | 12.7mm~25.4mm | 40mm~client request |
| EN10216-5; EN10217-7; DIN 17456; DIN17457; DIN17458 | 1.4301,1.4305, 1.4306, 1.4307, 1.4571,1.4401, 1.4404, 1.4541, 1.4948, 1.4550, 1.4912, 1.4845, 1.4462, 1.4539, 1.4438, 1.4501 | ||||||||
| ASTM A335; ASME SA335; ASTM A213; ASME SA213 | T1, T11, T12, T22, T23, T5, T9, T91, T92, P1, P11, P12, P22, P23, P5, P9, P91, P92 | ||||||||
| ASTM A53; ASTM A106, ASME SA106 | GR.A, GR.B, GR.C | ||||||||
| ASTM A178; ASME SA178; ASTM A179, ASME SA179; ASTM A192; ASME SA192; ASTM A209; ASME SA209; ASTM A210; ASME SA210; ASTM A 214; ASME SA214; ASTM A333; ASME SA333 | Gr.A, Gr.B, Gr.C, A179, A192, T1a, T1b Gr.A1, Gr.1, Gr.3, Gr.6 | ||||||||
| ASTM B161; ASME SB161; ASTM B163; ASME SB163; ASTM B164; ASME SB164; ASTM B165; ASME SB165; ASTM B167; ASME SB167; ASTM B407; ASME SB407; ASTM B444; ASME SB444; ASTM B622; ASME SB622; ASTM B388; ASME SB388 | Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500. Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840. Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Titanium : Gr.2 , Gr.5, Gr.7, Gr.9 ; | ||||||||
Feel free to provide the following details for the finned tube offer:
Contact Person: Max Zhang
Tel: +8615381964640
Fax: 0086-574-88017980
