Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YuHong |
| Certification: | ABS, BV, ISO, ASTM, SGS |
| Model Number: | ASTM B111 O61 C70600 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Material: | C70600 | Standard: | ASME SB111-17 |
|---|---|---|---|
| Certificate: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 | Application: | Boilier,heat Exchanger |
| Surface: | Bright Surface | Third Party Inspection: | BV,SGS,ASP |
| High Light: | C70600 Seamless Copper Alloy Tube,ASME B111 Copper Alloy Tube,C70600 Copper Alloy Heat Exchanger Tube |
||

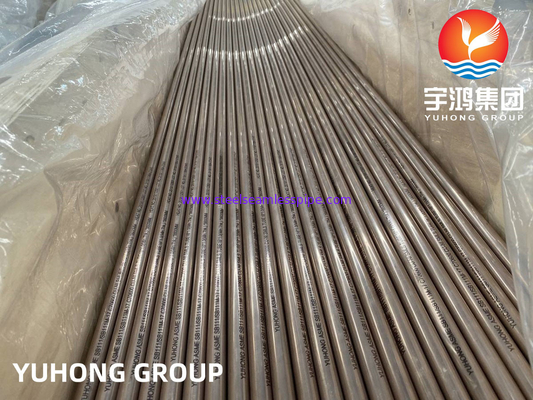

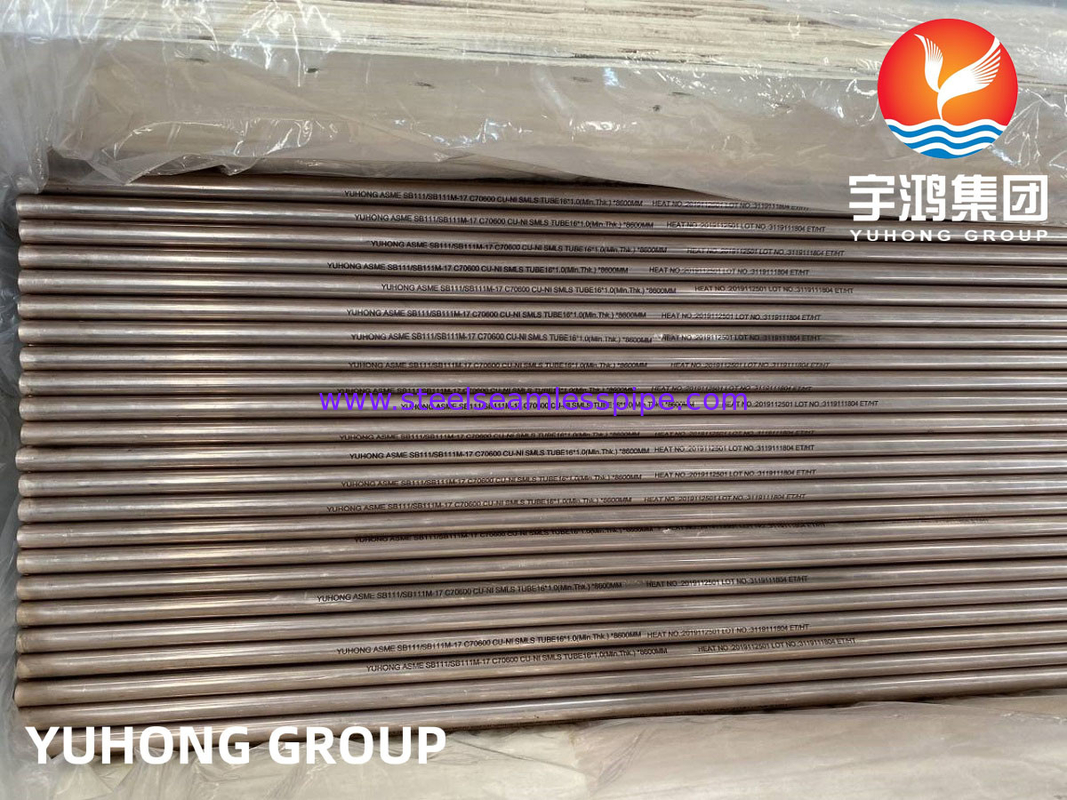

ASME B111 C70600 Copper Alloy Tube Seamless Tube 16''*1'' MIn.Wall thickness for heat exchanger
Cooper Nicekl Alloy Tube For Heat Exchanger ASME SB111-( 90CU10NI)C70600
Copper Nickel C70600 is also known as Copper Nickel 90/10 because it is made up of 10% nickel or as ASTM B111 and ASME SB111. C70600 is known for its moderate strength, weldability, and formability. The inclusion of controlled quantities of iron and manganese also give the 90/10 alloy an extraordinary resistance to general corrosion and stress cracking, as well as to erosion and impingement due to turbulent water containing air bubbles and silt flowing at high velocities.
C70600 Copper Nickel Applications •Desalination
• Underwater tubing
• Exchangers
• Marine hardware
Contact me today to inquire as to assist you in your copper nickel 90/10 needs!
List of standard C70600 sizes
Round Bar: ¼” Dia. thru 10”
Sheet: .065”, .125”
Plate: 3/16” thick thru 3”
Tube: Condenser tube
Pipe: ¼” Standard (SCH 40) thru 10”
¼” Extra Heavy (SCH 80) thru 4”
½” Class 200 Mil-T-16420 K thru 10”
Fittings: Class 200, SCH 40, SCH 80, Butt-weld Fittings
Threaded and Socket-weld Fittings, 3000#/6000#
C96200 400# Socket-weld Fittings
Flanges: Slip-on, threaded, blind, Weld-neck Flanges
Joining Technique | Suitability |
|---|---|
| Soldering | Excellent |
| Brazing | Excellent |
| Oxyacetylene Welding | Fair |
| Gas Shielded Arc Welding | Excellent |
| Coated Metal Arc Welding | Good |
| Spot Weld | Good |
| Seam Weld | Good |
| Butt Weld | Excellent |
| Capacity for Being Cold Worked | Good |
| Capacity for Being Hot Formed | Good |
| Machinability Rating | 20 |
| Cu(1) | Fe | Pb | Mn | Ni(2) | Zn |
|---|---|---|---|---|---|---|
| Min./Max. | Rem. | 1.0-1.8 | 0.05 | 1.0 | 9.0-11.0 | 1.0 |
| Nominal | 88.6 | 1.4 | - | - | 10.0 | - |
Properties of Copper-Nickel Tube
Alloy C70600 is normally supplied as redrawn tubing in the annealed condition. The combination of strength and good ductility give excellent formability.
As copper-nickel is softer than steel, it was first feared that fretting might be a problem. Experience has shown this is not the case.
Corrosion Resistance
For many years prior to its application as a brake tubing material, alloy C70600 had been used in ships, power station condensers and hydraulic lines on tankers, and had displayed excellent resistance to saline conditions. Early tests revealed that copper-nickel has almost the same resistance to burst pressure as steel. In testing, however, when exposed to salt spray over 180 days, steel's burst strength decreases significantly. The copper alloy remains consistently resistant.
