| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | ASTM A106 Gr. B |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Bundle/Ply Wooden Case |
| Delivery Time: | 5-80 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Certification: | API, CE, ISO, Etc. | Product: | SMLS Pipe |
|---|---|---|---|
| Standard: | ASTM A106 | Grade: | Gr. B |
| Material: | Carbon Steel | Color: | Black |
| Shape: | Round | Package: | Standard Seaworthy Package |
| High Light: | Round Carbon Steel Seamless Pipe,GrB Carbon Steel Pipe,Chemical High Temperature Carbon Steel Pipe |
||

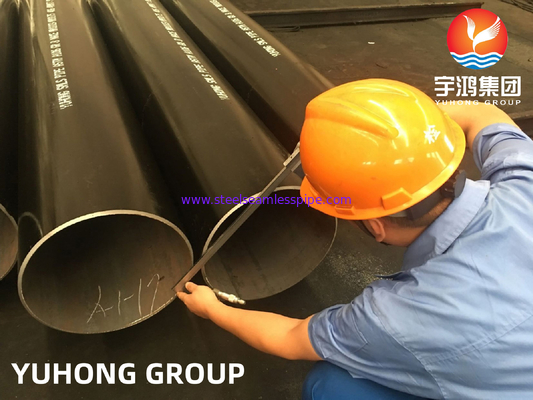

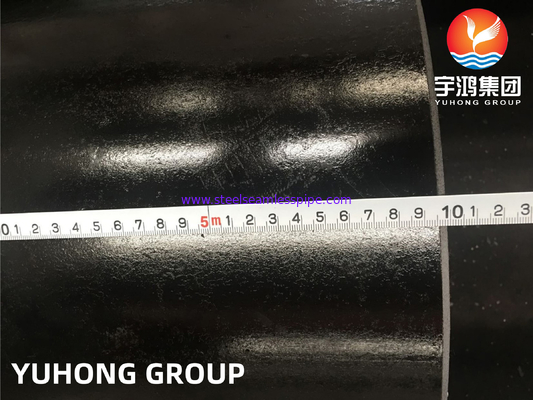

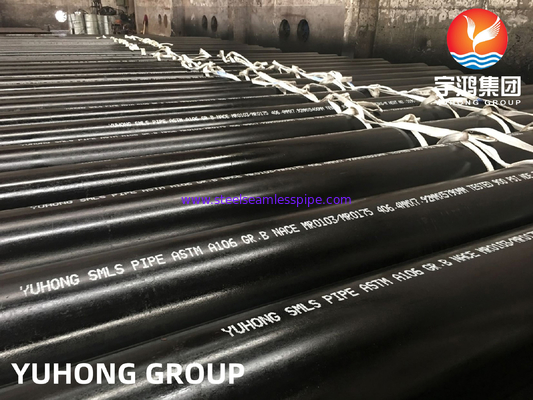

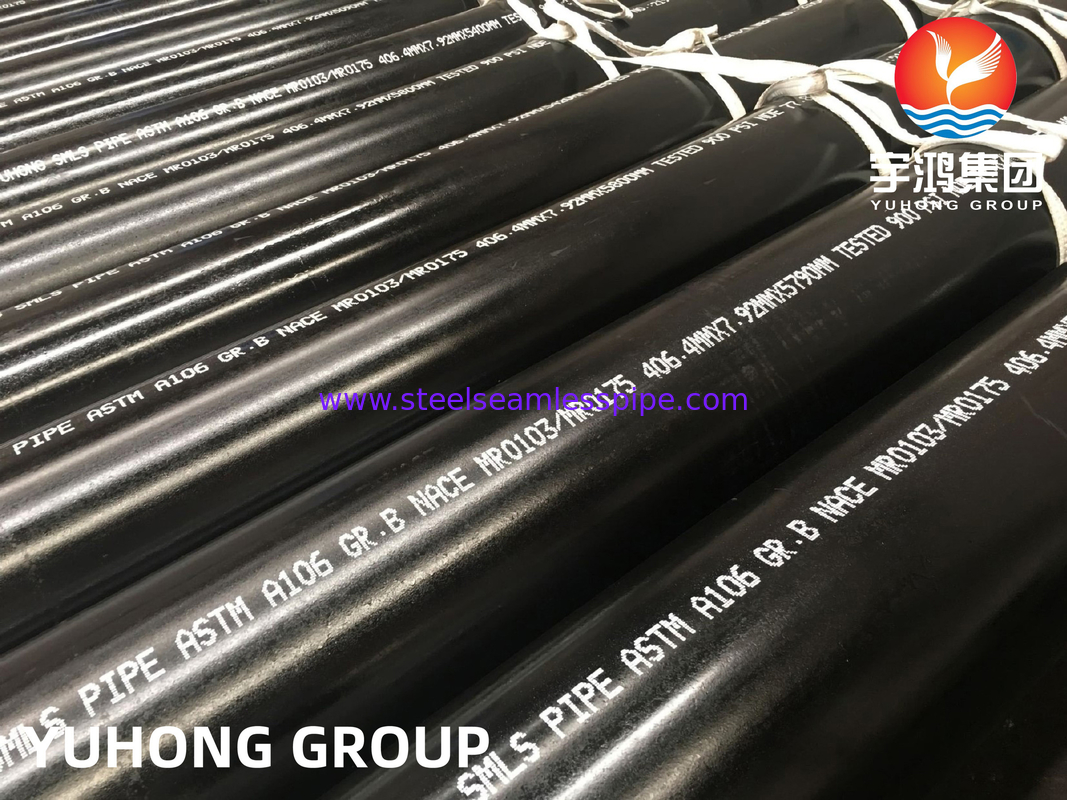

ASTM A106 Gr. B SMLS Black Carbon Steel Pipe (Tubería Sin Costura)
YuHong supplies ASTM A106/ASME SA106 carbon steel pipes, ASTM A106/ASME SA106 is the standard specification for seamless carbon steel pipe applied for high temperature services. It includes three grades A, B and C, and common use grade is A106 Grade B. It used in different industries not only for pipeline systems like oil and gas, water, mineral slurry transmission, but also for boiler, construction, structural purposes.
ASTM A106 Grade B pipe is equivalent to ASTM A53 Grade B and API 5L B on chemical position and mechanical properties, in general use carbon steel and yiled strength minimum 240 MPa, tensile strength 415 MPa.
Specification Of ASTM A106 Gr. B SMLS Pipe
| Standards | ASTM, ASME and API, ANSI B 36.10 |
| Craft | Cold rolled and Cold drawn |
| ANSI Standard | B1.20. |
| Grades | ASTM A106 Grade A, Grade B, Grade C |
| Type | ERW / Seamless / Fabricated / Welded |
| Size | 1/2” NB to 36” NB |
| Length | Minimum 3 Meters, Maximum 18 Meters |
| Thickness | 3-12mm |
| Specialized in | Large Diameter ASTM A106 Grade B Pipe |
| Schedules | Schedule 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier |
| ASME Standard | B36.10M |
| Tolerance | Cold drawn pipe: +/-0.1mm |
| Cold rolled pipe: +/-0.05mm | |
| End | Plain End, Beveled End, Treaded |
Chemical Composition Of ASTM A106 Gr. B SMLS Pipe
| Element | Content, % |
| Nickel [Ni] Mx. | 0.4 |
| Chromium [Cr] Mx. | 0.4 |
| Phosphorus [P] Mx. | 0.035 |
| Manganese [Mn] Mx. | 0.29-1.06 |
| Carbon [C] Mn. | 0.3 |
| Silicon [Si] Mx. | 0.10 |
| Sulfur [S] Mx. | 0.035 |
Mechanical Properties Of ASTM A106 Gr. B SMLS Pipe
| Element | ASTM A106 Carbon Steel Gr. B |
| Tensile Strength | 60,000 (415) MPa |
| Yield Strength (0.2%Offset) | 35,000 (240) MPa |
