| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N06625 Gr.2 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 60 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Requirements |
| Standard: | ASTM B444, ASME SB444 | Material Grade: | UNS N06625 Gr.2 |
|---|---|---|---|
| Product Name: | Nickel Alloy U Bend Tube | Sizes: | According To Client's Request |
| Type: | Seamless | Applications: | Heat Exchanger, Boiler, Air Coolers, Power Generation, Etc. |
| High Light: | Nickel Alloy Seamless U Bend Tube,Seamless Heat Exchanger U Bend Tube,UNS N06625 U Bend Pipe |
||

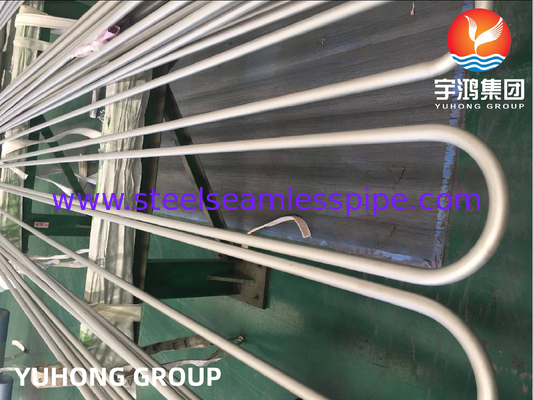

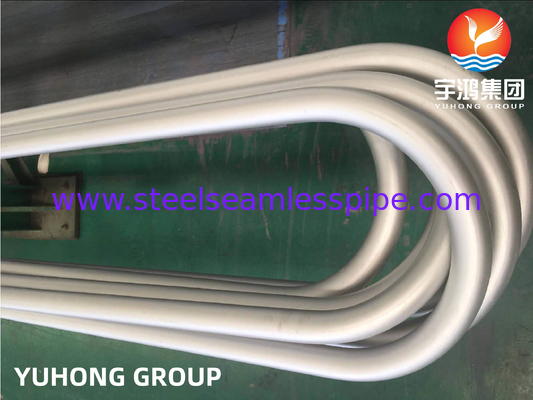

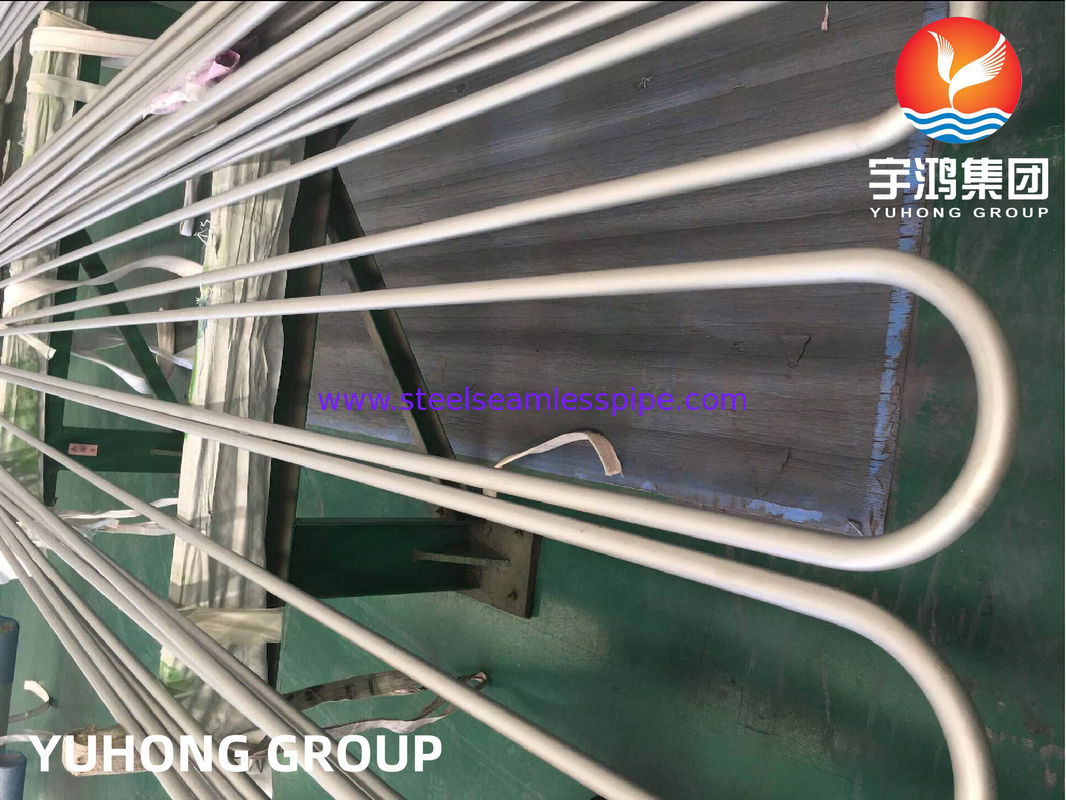

Heat Exchanger Tube, ASTM B444 UNS N06625 Grade 2 Nickel Alloy Seamless U Bend Tube
UNS N06625(Inconel 625) has excellent strength at temperatures up to 816℃. At higher temperatures, its strength is generally lower than that of other solid solution strengthened alloys. Alloy625 has good oxidation resistance at temperature up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.
ASTM B444 Inconel 625 Nickel Alloy Seamless U Bend Tube is made up of a corrosion resistant alloy that is also resistant to oxidation. The nickel alloy has excellent aqueous corrosion resistance and high strength. The Inconel 625 seamless tube is made up of a material that has nickel, chromium and molybdenum in it. The material is stabilized with niobium so that it becomes even stronger and corrosion resistant. Inconel 625 Tube belongs to different specifications such as the B444, B829 while the welded tubes are of B705 or B775 specifications. The tubes have 880Mpa minimum tensile strength and 460MPa minimum yield strength. The tubes can operate up to 982 degrees Celsius. There are grade 1 and 2 in this material.
Chemical Composition:
| Nickel | 58 min |
| Chromium | 20 - 23 |
| Columbium + Titanium | 3.15 - 4.15 |
| Carbon | 0.1 max |
| Manganese | 0.5 max |
| Silicon | 0.5 max |
| Phosphorous | 0.015 max |
| Sulfur | 0.015 max |
| Cobalt | 1 max |
| Iron | 5 max |
| Aluminum | 0.4 max |
| Titanium | 0.4 max |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Applications:
Boilers
Shell And Tube Heat Exchangers
Chemical Process Industry
Sea Water Systems
Pickling Operations
Sulfur Dioxide Cooling Towers
Pharmaceutical Industry
Flue Gas Scrubber Systems
Nuclear Fuel Reprocessing
