Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 TP444 |
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Specification: | ASTM A213, ASME SA213 | Grade: | TP444 |
|---|---|---|---|
| Type: | Seamless | Surface: | Pickled And Annealed, Polished, Bright Annealed |
| Non Destructive Test: | Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213 | Size Standard: | ASTM B16.10 & B16.19 & Customized |

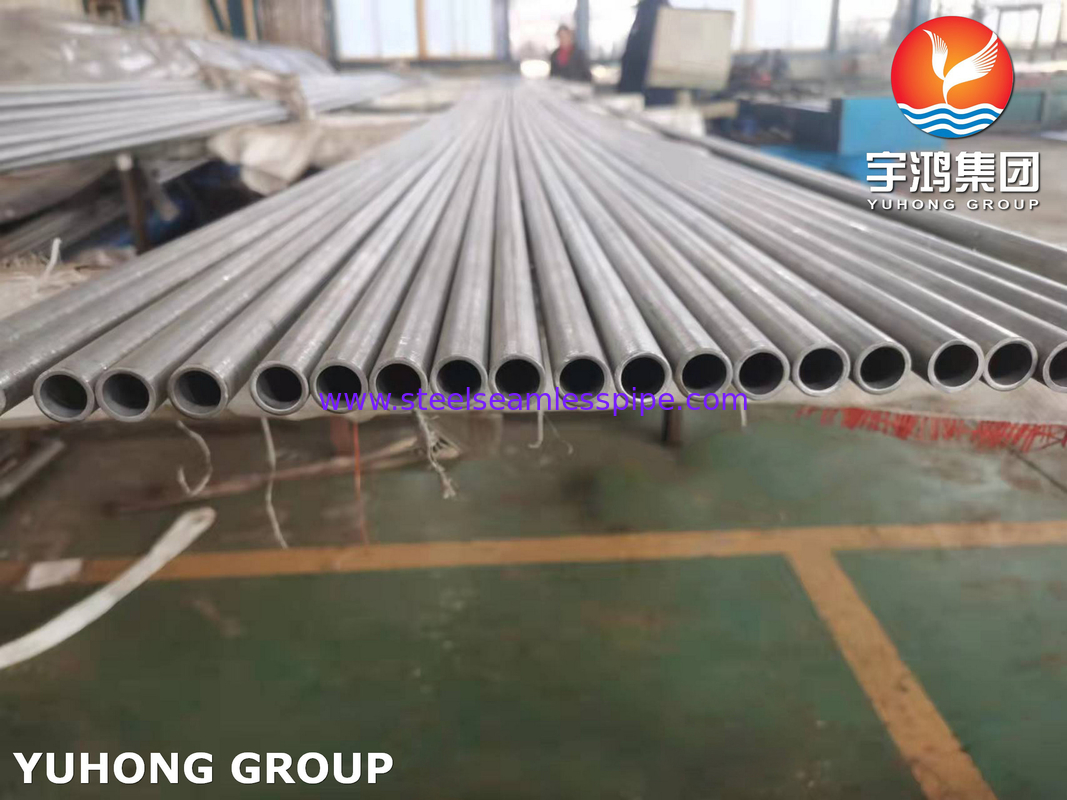

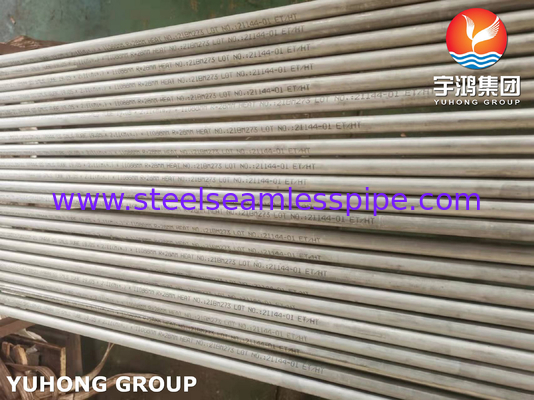

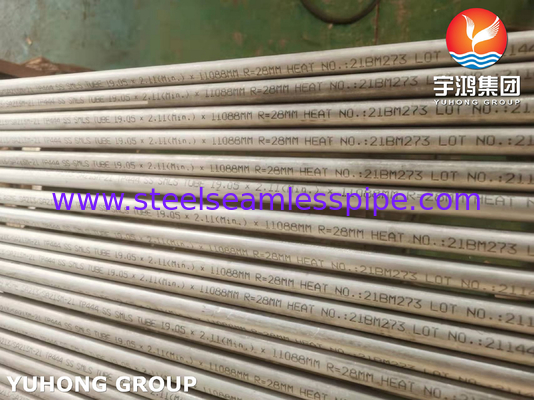

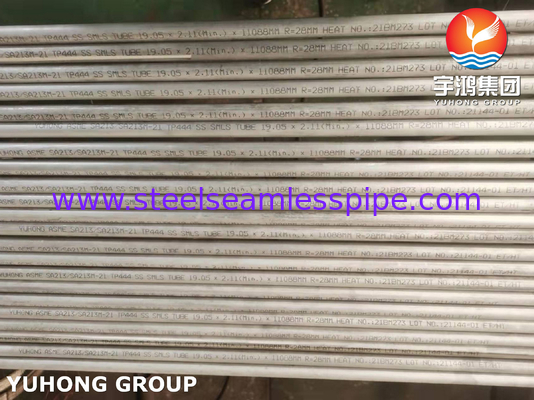

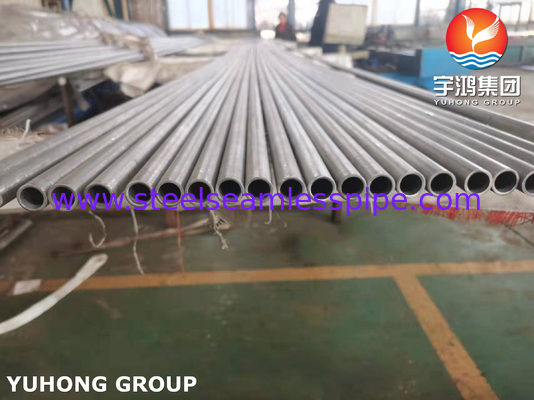

High Thermal Conductivity ASTM A213 TP444 1.4521 UNS S44400 Seamless Tube
What is ASTM A213?
This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes. Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H.
These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. The tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified.
TP444 Features
TP444 is made of high-purity ferritic stainless steel. Compared with austenitic stainless steel, ferritic stainless steel has excellent stress corrosion resistance, hydrogen sulfide, chloride ion stress corrosion and pitting corrosion resistance, high thermal conductivity, small thermal expansion coefficient, very It is suitable for manufacturing heat exchangers for petrochemical and other industries.
Chemical Composition of TP444
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum | Nitrogen |
| 0.03 | 1.00 | 0.04 | 0.03 | 1.00 | 17.5-19.5 | K | 1.75-2.50 | 0.035 |
Mechanical Properties
| Tensile Strength, min, ksi [MPa] | Yield Strength, min, ksi [MPa] | Elongation in 2 in. or 50 mm, min, %B,C | Hardness | |
| Brinell | Rockwell | |||
| 60 [515] | 40 [275] | 20 | 217 HBWI 230 HV | 96 HRB |
Equivalent Material:
| Grade | WERKSTOFF NR. | UNS | GB | JIS |
| TP444 | 1.4521 | S44400 | 019Cr19Mo2NbTi | SUS444 |
Applications:
-Chemical Equipment
-Heat Exchangers
-Condensers
-Oil Drilling Companies
-Power Generation
-Petrochemicals
