Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SB111/ ASTM B111 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply- Wooden Case/Plastic Bag / Plastic Cap |
| Delivery Time: | 10-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Application: | Industrial, Machinery, Etc. | Material: | Copper Alloy |
|---|---|---|---|
| Elongation: | Customized | Hardness: | Customized |
| Heat Treatment: | Annealing, Quenching, Etc. | Length: | Customized |
| Outer Diameter: | Customized | Shape: | Tube |
| Surface Treatment: | Polishing, Sandblasting, Anodizing, Etc. | Tensile Strength: | Customized |
| Tolerance: | Customized | Wall Thickness: | Customized |

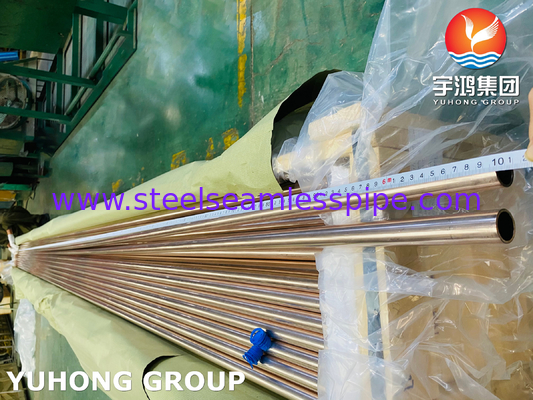

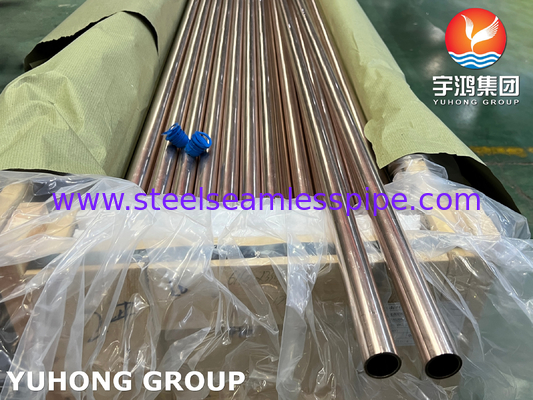

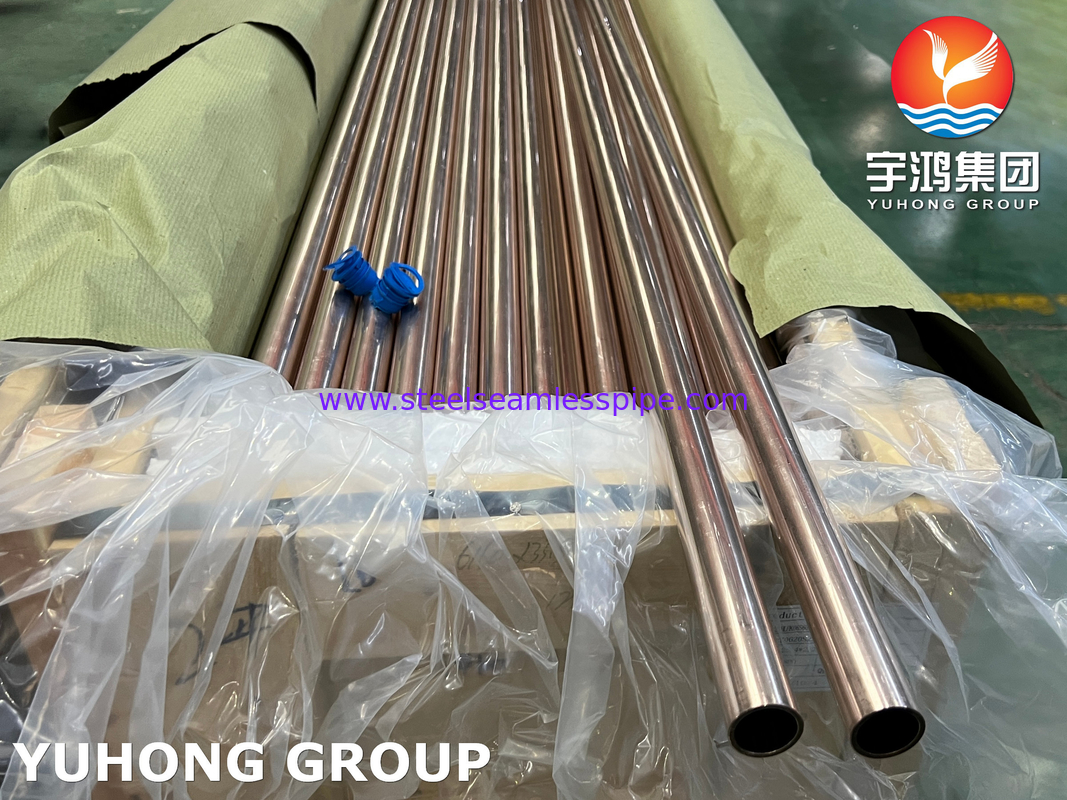

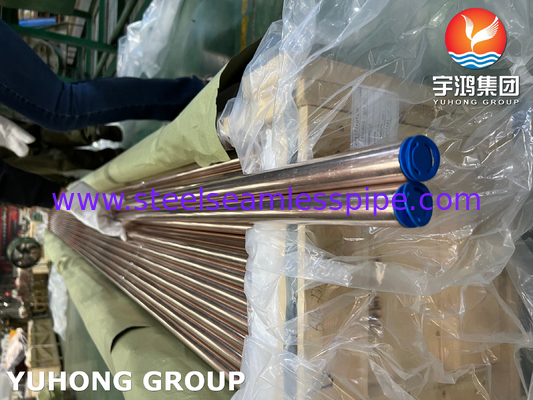

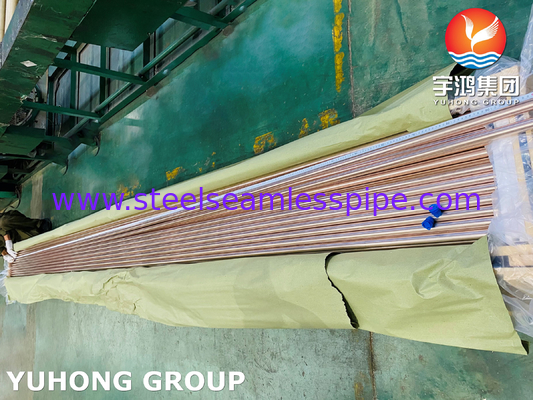

ASME SB111/ASTM B111 C70600 Copper Nickel Tube for Heating Systems
Description
ASME SB111 SB 466 C70600 Pipe Copper Nickel Alloy, prevents against seawater corrosion, high anti-fouling properties against sea microorganism. Widely applied to offshore and related industries such as ship-building & repairing, petrochemical, natural gas and so on. C70600 Copper Nickel Tubes / Copper-Nickel 90/10 Seamless Pipe have good corrosion resistance, especially in sea water.
UNS C70600 copper nickel alloy are annealed at temperatures between 593 and 816°C (1100 and 1500°F). UNS C70600 copper nickel alloys have good cold working capacity. Suitable for high temperature service.
Chemical Composition
| Element | Content (%) |
|---|---|
| Cu | 88.7 |
| Fe | 13 |
| Ni | 10 |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.94 g/cm3 | 0.323 lb/in³ |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 303-414 MPa | 43900-60000 psi |
| Yield strength (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42% | 42% |
| Elastic modulus | 117 GPa | 17000 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Machinability (UNS C36000 (free-cutting brass) = 100) | 20 | 20 |
| Shear modulus | 52.0 GPa | 7540 ksi |
How to test the performance of SB111 C706600?
The following test methods help to determine the quality properties of SB111 C70600 material:
· Hydraulic test
Hydraulic test to determine whether there are leakage points on the material.
This is crucial when manufacturing products such as pipes and pipes through which fluids flow.
· Pneumatic test
The purpose of this test is to determine the maximum pressure point that the SB111C70600 material can withstand.
This is done by testing a material that exceeds a given pressure limit.
Checking this test is critical because it helps determine the fluid pressure flow through SB111 C70600 tubes and pipes.
· Tensile test
This test helps to understand the different properties of SB111C70600 material.
They include yield strength, flexibility, strain hardening and elasticity.
With tensile testing, you can learn about these properties and better help your material manufacturing.
· Expansion test
The expansion test determines the maximum temperature and pressure that a particular SB111C70600 material can withstand without breaking.
Through this test, you can understand the temperature and pressure that the product of this material can withstand.
· Flattening test
This test examines the maximum weight that a given SB111C70600 material can bear without collapsing along its edge.
It is crucial in determining the installation point of products manufactured with this material.
Applications
The Integral Low Finned Tubes find the preference in the following industrial sectors:
