Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | A268 TP405 TP410 TP430 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton per month |
| Type: | Seamless &Welded | Material: | TP405 TP409 TP403Ti TP405 TP409 TP410 TP430 |
|---|---|---|---|
| Size: | According To Client's Request | Application: | Heat Exchanger,Boiler ,Cooling System |
| Outside Diameter | 6-203mm |
| Wall Thickness | 0.5-25mm |
| Length | Up to 25m |
| Standard | ASTM A268, ASME SA268 |
| Grade | TP410/TP405/TP420/TP430/TP430Ti/TP403/TP409/TP444/TP439/TP446,etc. |
| Delivery Condition | Pickled, Polished, Bright Annealed |
| Technique | Seamless/Welded |
| Application | Heat Exchanger, Heater, Condenser, Machining, Bearing Machining, API Service… |
| Marking | Standard, Grade, Size, Heat Number, Lot Number ... |

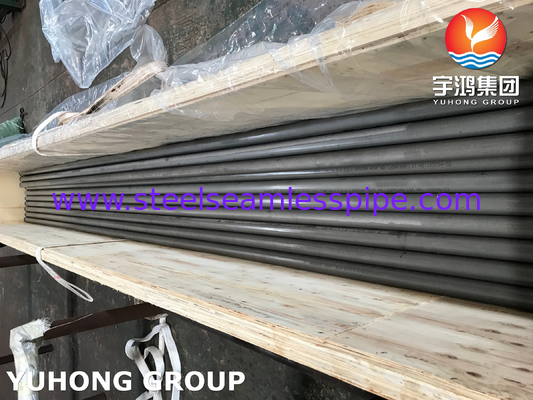

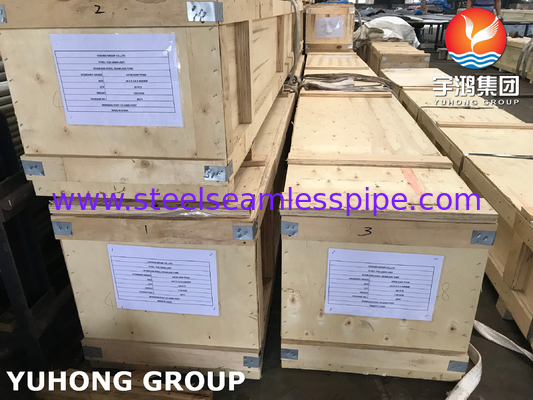

| Package | Bundle with plastic Cap, Plywood case, or as per customer's requirement. |
| Quality Requirement | Mill Test Certificate (EN 10204/3.1); 3.2, Third Part Inspection is acceptable. |
ASTM A268 TP410 Stainless Steel Tube Equivalent Grades
| Grade | UNS No | Euronorm | Swedish | Japanese | ||
| No | Name | SS | JIS | |||
| 410 | S41000 | 1.4006 | X12Cr13 | - | SUS410 | |
ASTM A268 TP410 Stainless Steel Tube Chemical compositions
| Grade | C | Si | Mn | P | S | Cr | Ni | N |
| TP410, UNS S41000 | 0.15 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 11.5~13.5 | - | - |
ASTM A268 TP410 Stainless Steel Tube Mechanical properities
|
Tensile strength (MPa) min. |
Yield strength (MPa) min. |
Elongation (%)min. |
Hardness | |
|
Rockwell B (HR B) max |
Brinell (HB) max |
|||
| 415 | 205 | 20 | 95 | 207 |
Other Material Grades
|
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
|
GOST |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МД |
