Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP316Ti, UNS S31635 |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM A269, ASME SA269 | Material Grade: | TP316Ti, UNS S31635 |
|---|---|---|---|
| Type: | Seamless,Welded | Outer Diameter: | 6mm-630mm Or Customized |
| Length: | 6 Meters Or Customized | Thickness: | 1mm-60mm |
| Technique: | Cold Rolled Hot Rolled | Application: | Decoration,Construction,boiler,oil And Gas,electric |

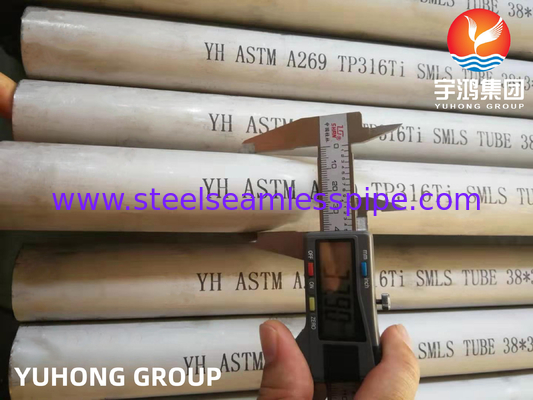

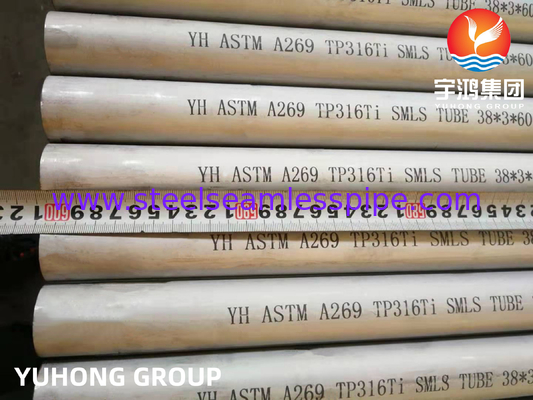

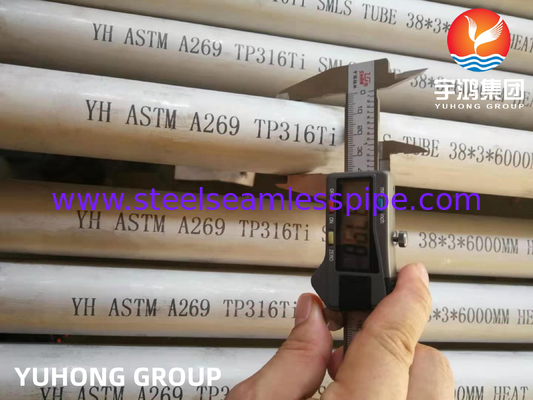

ASTM A269 TP316Ti, UNS S31635 Stainless Steel Seamless Tube For Heat Exchangers Boilers
ASTM A269 TP316Ti (UNS S31635) is a version of TP316 molybdenum-containing austenitic stainless steel with titanium stabilised . The ASTM A269 TP316 is resistant to general corrosion and pitting or crevice corrosion. They also have high creep, stress-rupture and tensile strength at high temperature.
Features:
High Durability
Great Ductility
High Tensile Strength
Good General Corrosion
Resistance To Stress Corrosion
| Specifications | ASTM A269 / ASME SA269 |
| Dimensions | ASTM, ASME and API |
| Size Range | 1/2" - 48" |
| Length | 6M or As Custom, Single Random, Double Random & Required Length |
| Schedule | SCH10 To SCH XXS |
| Type | Seamless |
| Forms | Round Tube, Square Tube, Rectangular Tube |
| Ends | Plain Ends, Beveled Ends, Treaded |
Equivalent Grades:
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 316TI | S31635 | 1.4571 | SUS 316TI | Z6CNDT17‐12 | 320S31 | 08Ch17N13M2T | X6CrNiMoTi17-12-2 |
Chemical Composition:
| Ni | 10 – 14 |
| N | 0.1 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| M | 2 – 3 |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8000 kg/m3 | 1399 °C (2550 °F) | 75000Psi, 515MPa | 30000Psi, 205MPa | 35 % |
Applications:
Food Processing Equipments
Chemical Containers
Heat Exchangers
Threaded Fasteners
Ship Building Equipments
Paper and Pulp Plants
Oil and Gas Plants
