Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 TP304 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1000tons/month |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Material: | Stainless Steel | Packaging: | Standard Export Packing |
|---|---|---|---|
| Shape: | Seamless Tube | Standard: | ASTM, AISI, DIN, EN, GB, JIS |
| Surface Treatment: | Polished | ||
| High Light: | Boiler Polished Stainless Steel Seamless Tube,TP304 Stainless Steel Seamless Round Tube,Heat Exchanger Seamless Round Tube |
||
| Product Name: | Heat Exchanger Tube | Standard: | ASTM A213 / ASME SA213 |
|---|---|---|---|
| Material: | Stainless Steel | Length: | Single Random, Double Random & Cut Length. |
| Form: | Straight &U Bend | Surface: | Oil-dip, Varnish, Passivation, Phosphating |
| End: | Plain Ends / Beveled Ends | Type: | Seamless |
| Packing: | Plywood Case,Bundle | ||
| High Light: |
ASME SA213 Stainless Steel Tube,Stainless Steel Seamless Tube, Heat Exchanger Tube,Boiler Tube |
||

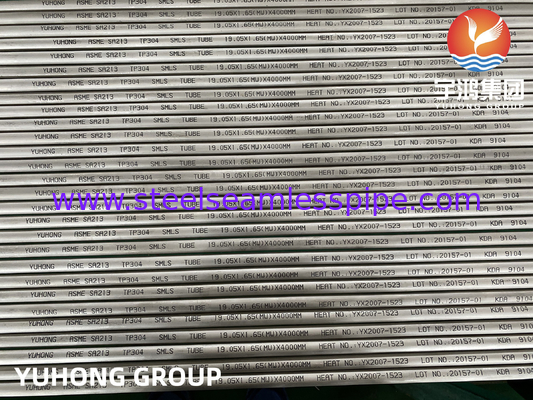

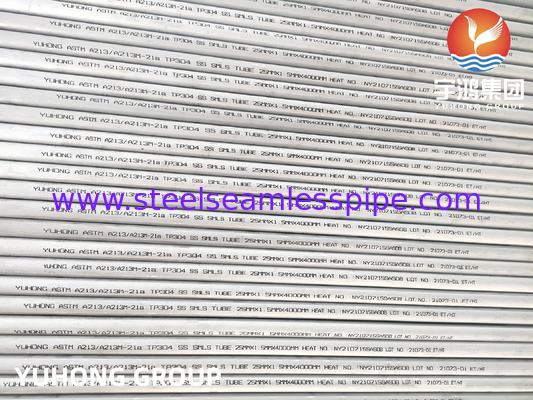

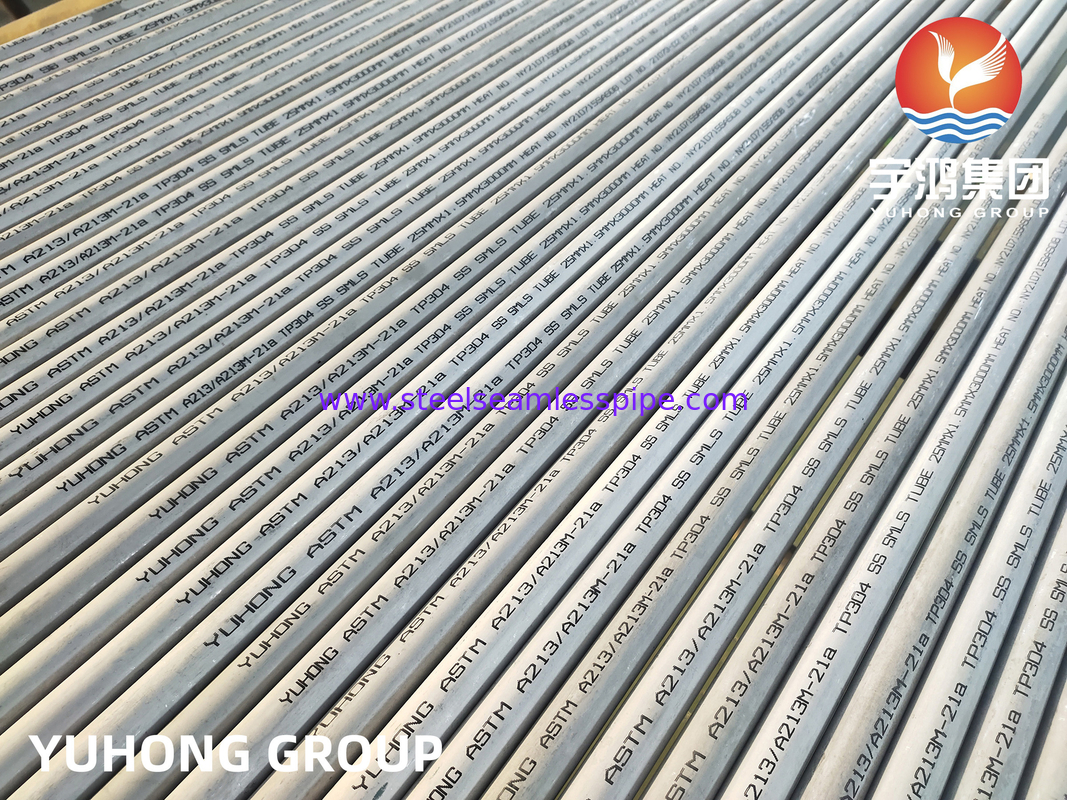

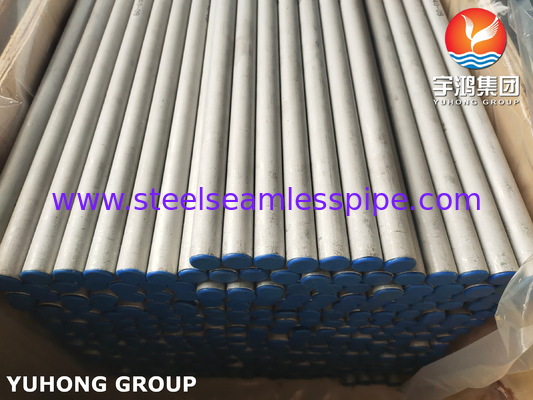

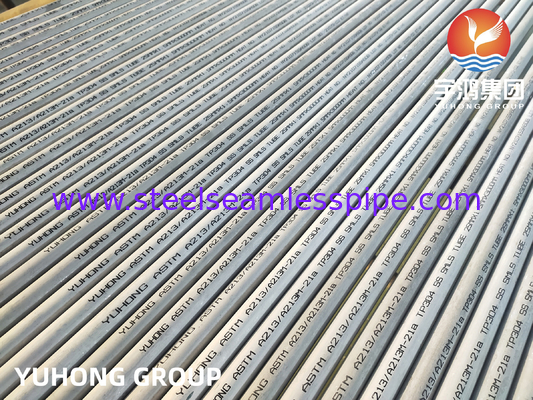

ASTM A213 / ASME SA213 TP304 Stainless Steel Seamless Tube
Overview
TP304 stainless steel is primarily composed of iron (Fe), chromium (Cr), and nickel (Ni). It typically contains a minimum of 18% chromium and 8% nickel, providing its excellent corrosion resistance properties.The mechanical properties of TP304 include tensile strength, yield strength, elongation, and hardness. These properties are essential for determining the material's strength and its ability to withstand various stresses.
ASTM A213 TP304 specifies the dimensions, tolerances, and sizes of the tubes. It provides requirements for the outside diameter (OD), wall thickness, and length of the tubes used in boiler, superheater, and heat-exchanger applications.
TP304 tubes may undergo different heat treatments such as normalization, quenching, and tempering to enhance their mechanical properties and improve their resistance to stress corrosion cracking.The standard defines various tests and inspections to ensure the quality of TP304 tubes. These include hydrostatic testing, non-destructive examination (such as eddy current or ultrasonic testing), and tensile tests.
Chemical Composition of ASTM A213 TP304
| Grade | C | Mn | Si | P | S | Ni | Cr | |
| TP304 | Min | 8.0 | 18.0 | |||||
| Max | 0.08 | 2.0 | 1.0 | 0.045 | 0.03 | 11.0 | 20.0 |
Mechanical Properies of ASME SA213 TP304
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) | Hardness | |
| Rockwell (HRB) | Brinell(HBW) | ||||
| TP304 | ≥70(485) | ≥25(170) | ≥35 | ≤90 | ≤192 |
Wall Thickness Tolerance of ASME SA213
| Welded, Hot-Finished Tubes | Type | Wall Thickness Tolerance |
| OD Range | Average(-) | |
| 6~65mm(Incl.) | SMLS&WLD | (-12.5%,+20%) |
| >65mm | SMLS&WLD t/D≤5% | (-12.5%,+22.5%) |
| >65mm | SMLS&WLD t/D>5% | (-12.5%,+15%) |
Uses&Application:
1>.Power Generation: TP304 tubes are used in power plants for boilers, superheaters, and heat exchangers to transfer heat and generate steam.
2>.Petrochemical Industry: TP304 tubes are used for heat transfer in refineries, processing plants, and petrochemical facilities.
3>.Food Industry: TP304 tubes are utilized in food processing equipment, such as heat exchangers, evaporators, and pasteurizers.
4>.Pharmaceutical Industry: TP304 tubes are used for the production and transfer of pharmaceutical products, including heat exchangers and process piping.
5>.Oil and Gas Industry: TP304 tubes are utilized in oil and gas refineries, offshore platforms, and pipelines for various applications, including heat exchangers and process piping.
