Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B163 N02200 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Product Name: | Heat Exchanger Tube | Standard: | ASTM B163/ASME SB163 |
|---|---|---|---|
| Material: | Nickel Alloy Steel | End: | Plain Ends/ Beveled Ends |
| Type: | Seamless | ||
| High Light: | ASTM B163 Nickel Alloy Steel Tube,ASTM B163 UNS N02200 Alloy Steel Tube, Heat Exchanger Tube,Condenser Tube | ||

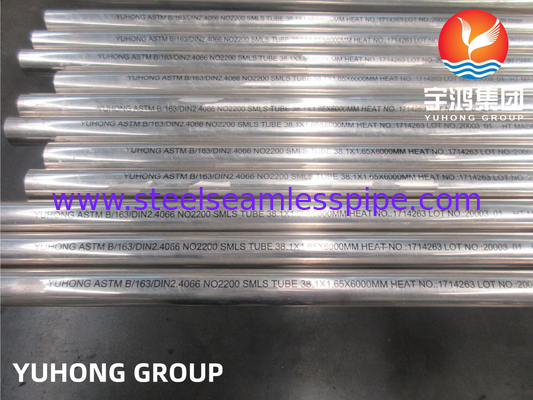

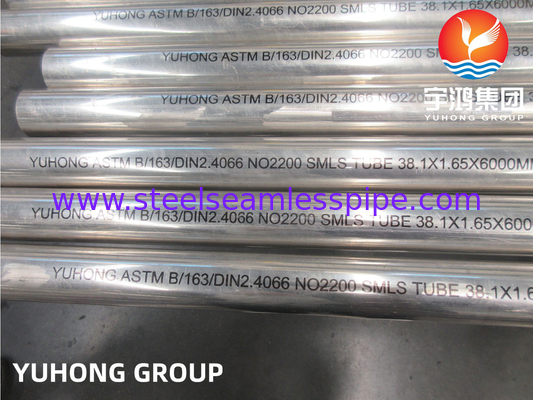

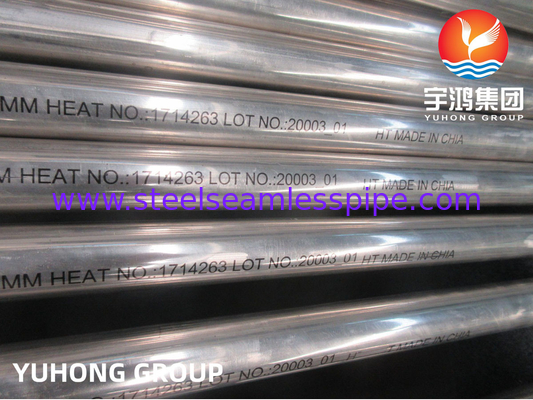

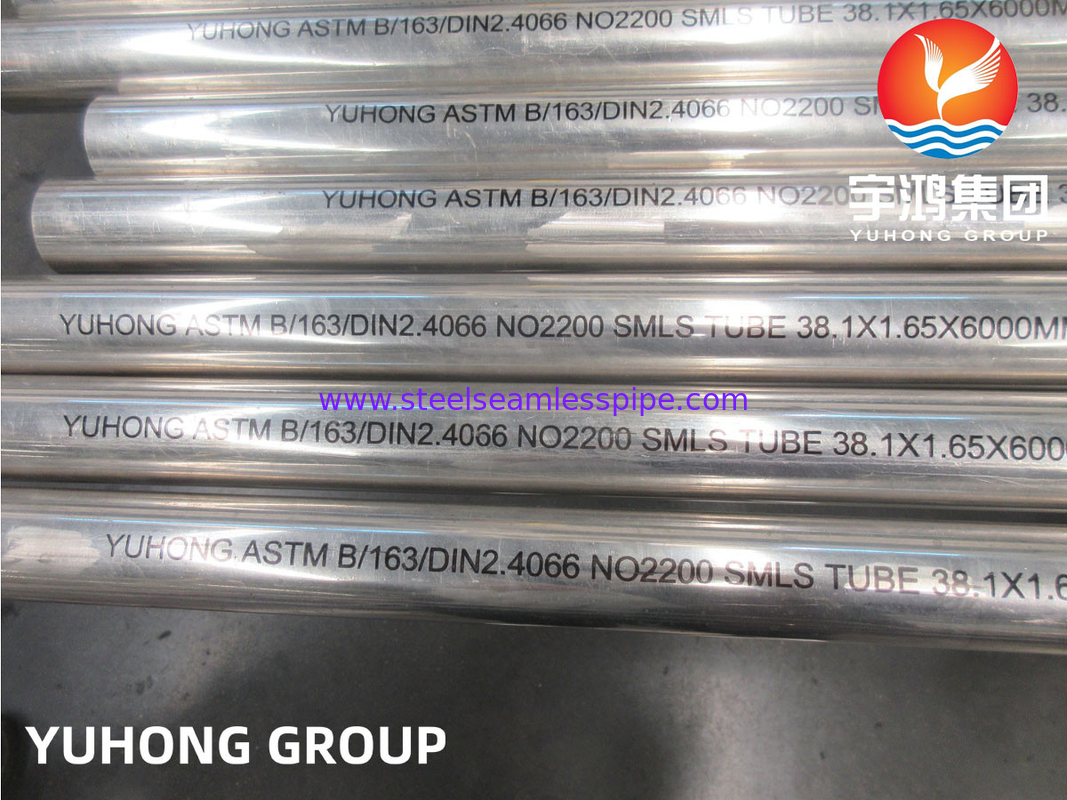

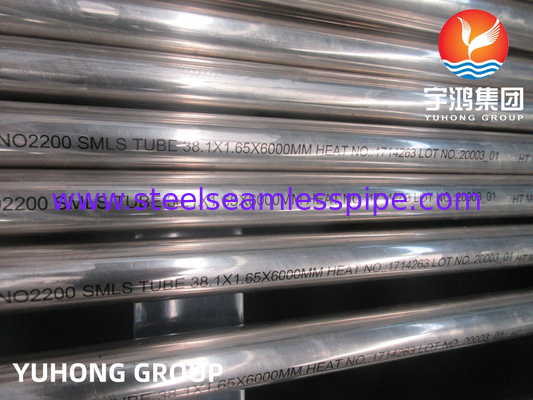

ASTM B163 UNS N02200 Nickel Alloy Steel Tube
Overview
ASTM B163 UNS N02200 refers to a specification for seamless nickel and nickel alloy condenser and heat-exchanger tubes. UNS N02200 is a designation for commercially pure (99.6%) nickel, which is a commonly used material in various industrial applications due to its excellent corrosion resistance and high thermal conductivity. The ASTM B163 specification outlines the requirements for the chemical composition, mechanical properties, dimensions, and tolerances of the seamless tubes made from UNS N02200 and other nickel alloys.
Chemical Composition of ASTM B163 UNS N02200
| Grade | Cu | Iron | Mn | C | Si | Ni | S | |
| N02200 | Min | 99.0 | ||||||
| Max | 0.25 | 0.40 | 0.35 | 0.15 | 0.35 | 0.01 |
Mechanical Properies of ASTM B163 UNS N02200
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) | Rockwell C(HRC) |
| N02200 | ≥55(379) | ≥15(103) | ≥40 | ≥65 |
Uses&Application
1>.Heat exchangers and condensers in chemical processing plants
2>.Power generation equipment such as boilers, heat exchangers, and steam generators
3>.Aerospace and defense applications such as aircraft engines and missile systems
4>.Oil and gas processing equipment such as pipelines, refineries, and offshore platforms
5>.Food processing equipment such as dairy and beverage processing plants
