Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B163 N06601 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Product Name: | Heat Exchanger Tube | Standard: | ASTM B163/ASME SB163 |
|---|---|---|---|
| Material: | Nickel Alloy Steel | End: | Plain Ends/ Beveled Ends |
| Type: | Seamless | ||
| High Light: | ASTM B163 Nickel Alloy Steel Tube,ASTM B163 UNS N06601 Alloy Steel Tube, Heat Exchanger Tube,Condenser Tube | ||

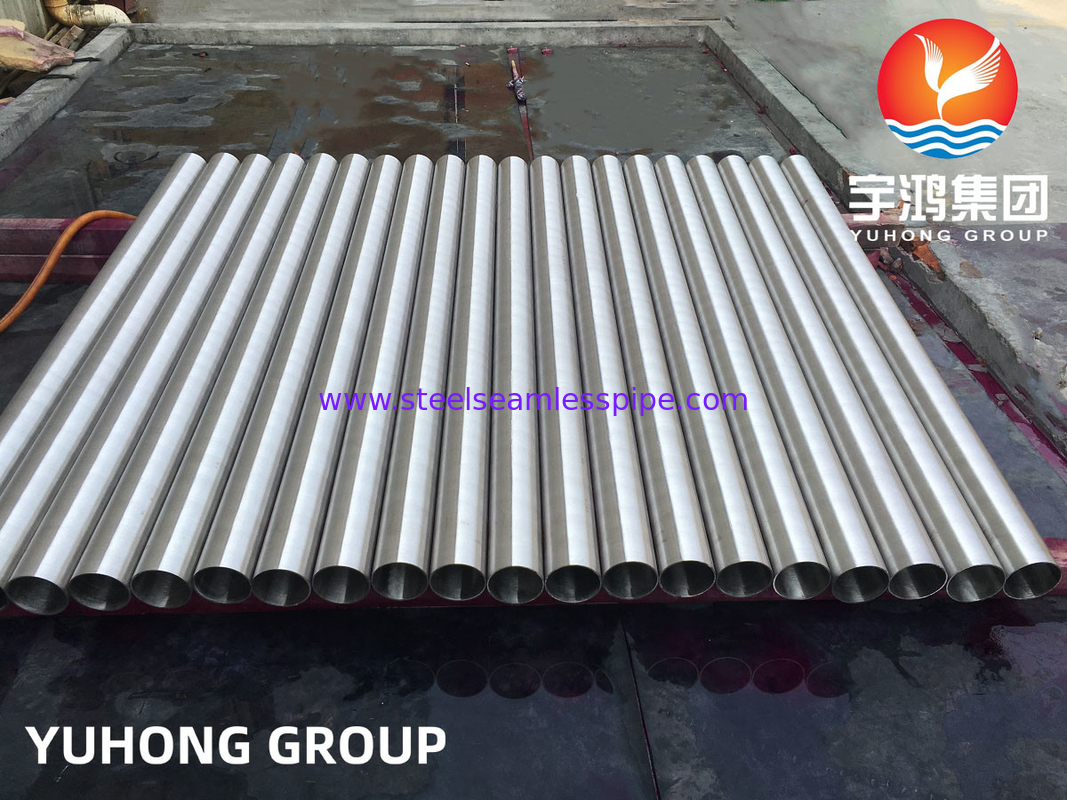

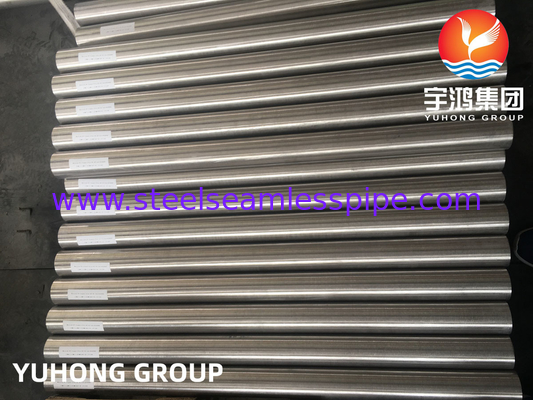

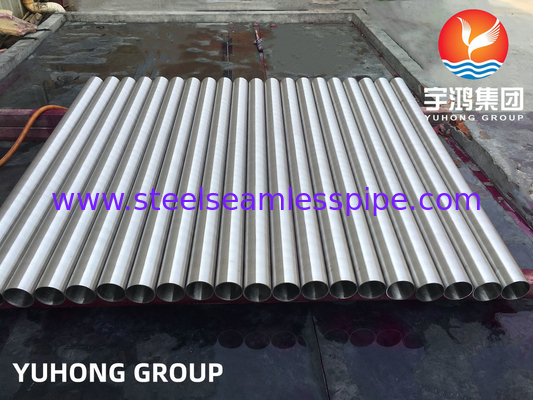

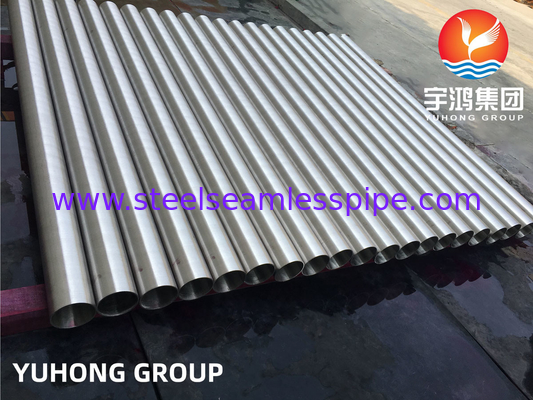

ASTM B163 UNS N06601 Nickel Alloy Steel Tube
Overview
ASTM B163 N06601 is a standard specification for seamless nickel and nickel alloy condenser and heat-exchanger tubes. The N06601 designation refers to a specific grade of nickel alloy, which is also known as Inconel 601. This alloy is a high-temperature material that is resistant to oxidation, corrosion, and stress cracking in a wide range of environments. The ASTM B163 standard covers the dimensions, tolerances, and mechanical properties of seamless tubes made from Inconel 601 and other nickel alloys, and it is commonly used in the chemical processing, petrochemical, and power generation industries.
Chemical Composition of ASTM B163 UNS N06601
| Grade | Cu | Iron | Mn | C | Si | Ni | S | Cr | Al | |
| N06601 | Min | 58.0 | 21.0 | 1.0 | ||||||
| Max | 1.0 | Remainder | 1.0 | 0.10 | 0.50 | 63.0 | 0.015 | 25.0 | 1.7 |
Mechanical Properies of ASTM B163 UNS N06601
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
| N06601 | ≥80(552) | ≥30(207) | ≥30 |
Uses&Application
1>.Heat exchangers: Inconel 601 is often used in the construction of heat exchangers due to its excellent resistance to high-temperature corrosion and oxidation.
2>.Furnace components: The alloy's high-temperature strength and resistance to thermal fatigue make it an ideal material for use in furnace components such as radiant tubes, muffles, and retorts.
3>.Chemical processing equipment: Inconel 601 is frequently used in the construction of chemical processing equipment such as reactors, distillation columns, and piping systems due to its excellent resistance to corrosion and high-temperature environments.
4>.Aerospace components: The alloy's high-temperature strength and resistance to oxidation make it a popular choice for use in aerospace components such as jet engine exhaust systems and turbine blades.
