Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | T5, 1.7362, UNS K41545 |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle With Plastic Cap / Woven Bag |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A213, ASME SA213 | Material Grade: | T5, 1.7362, UNS K41545 |
|---|---|---|---|
| Product Name: | Alloy Steel Tube | Type: | Seamless |
| O.D: | 1/2" To 30" | Thickness: | 1.5 - 63.5 Mm |
| Technique: | Hot Finished, Cold Drawn | Applications: | Boiler, Heat Exchanger, Superhester, Petrochemical Industry, Etc. |

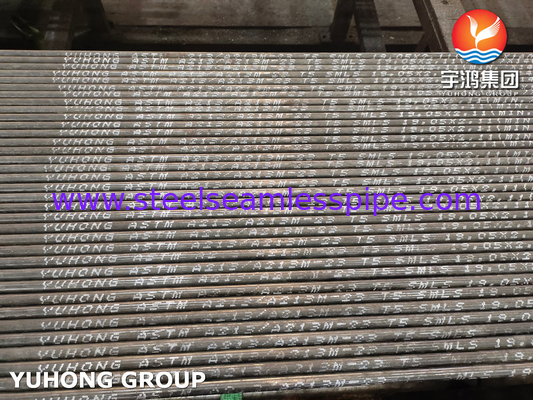

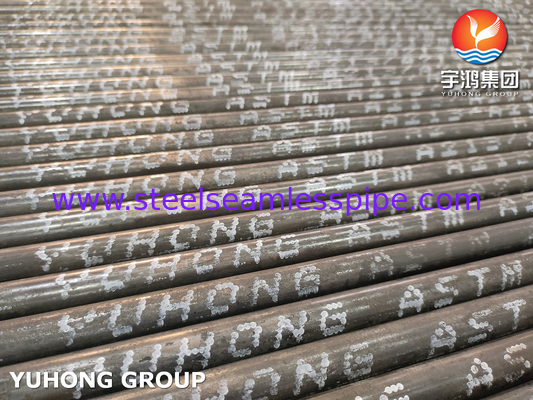

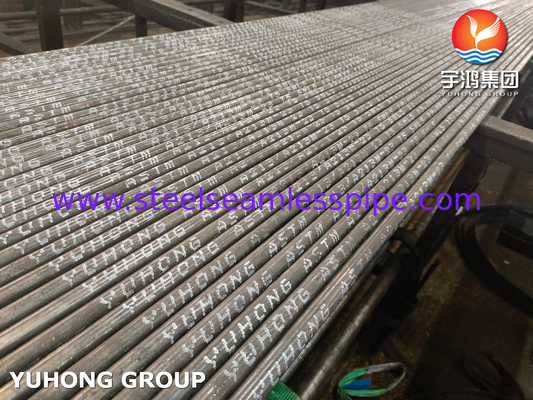

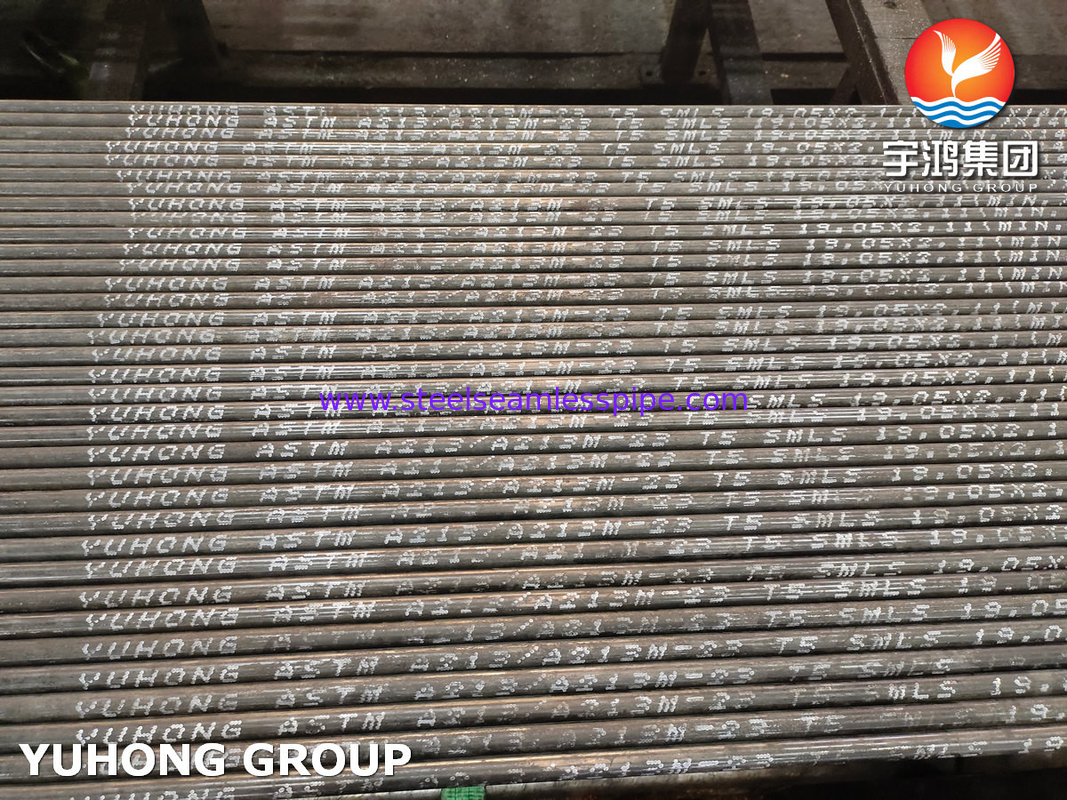

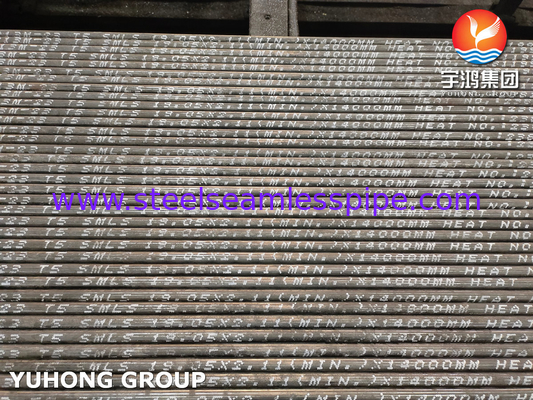

ASTM A213 T5, 1.7362 Alloy Steel Seamless Tube For Boilers And Heat Exchangers
ASTM A213 T5 Alloy Steel Seamless Tubes are resistant to corrosion and oxidation. ASTM A213 T5 Alloy steel Seamless Round Tubes contains substantial amounts of nickel, chromium, tungsten, molybdenum, silicon, manganese, sulphur, phosphorus and silicon. ASTM A213 Grade T5 High Pressure Tubes offer excellent features like rugged construction and corrosion resistance. ASTM A213 T5 alloy steel seamless tube has excellent heat resistance and corrosion resistance in hot petroleum media, and has good cold and hot processing performance. It is widely used in industrial heat exchangers in petrochemical engineering.
Specifications:
| Specifications | ASTM A213 / ASME SA213 |
| Dimensions | ASTM, ASME and API |
| OD | 1 / 2” To 30” |
| WT | 1.5-63.5mm |
| Type | Seamless |
| Form | Round |
| Length | 6M Or Single Random, Double Random, Cut Length. |
| Ends | Plain End, Beveled End, Treaded |
Chemical Components (%):
| Grade | C | Mn | P | S | Si | Cr | Mo |
| T5 | 0.15 | 0.30-0.60 | ≤0.025 | ≤0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
Mechanical Properties:
| Tensile Strength, MPa | 415 min |
| Yield Strength, MPa | 205 min |
| Elongation % | 30 min |
| Hardness, HB | 179 min |
Applications:
Boilers
Power Plants
Petrochemical Equipment
Gas Processing Plant
Chemical Equipment
Heat Exchangers
Condensers
Oil Drilling Industries
Heat Exchangers
Condensers
