ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SA213 TP347

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	15-20 Days
Payment Terms:	L/C, T/T
Supply Ability:	800 Tons/ Month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Standard:	ASME SA213	Grade:	TP347, TP304, TP310S, TP316L
Application:	Condenser, Boiler, Heat Exchanger	Test:	Hydrostatic Test, Nondestructive Electric Test, Grain Size(ASTM E112), Flattening Test, Flaring Test
Type:	Seamless	Condition:	Hot Finished, Cold Finished
Highlight:	S34700 Stainless Steel Seamless Tube , Condenser Stainless Steel Seamless Tube

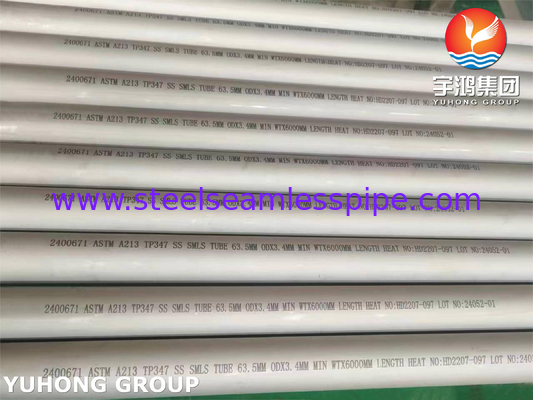

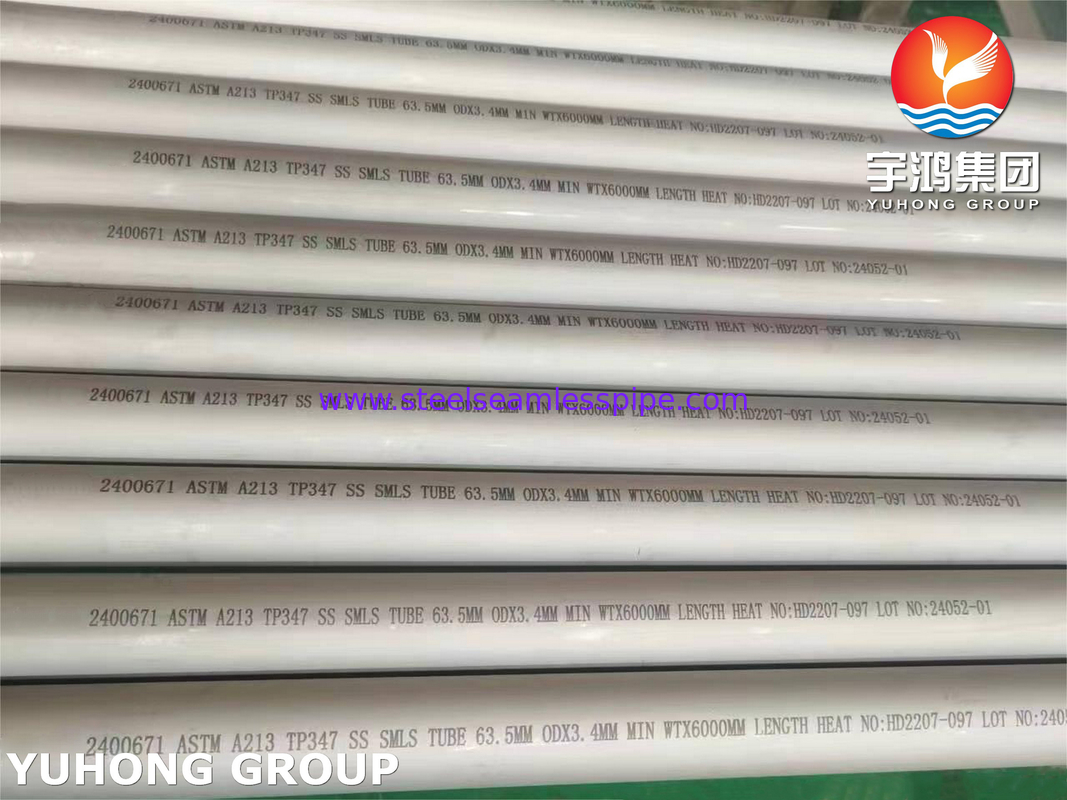

ASME SA213 TP347 S34700 Stainless Steel Seamless Tube for Condenser Application

Yuhong specializes in ASME SA213 TP347 (UNS S34700) stainless steel seamless tubes for condensers. With deep expertise in austenitic stainless steel pipes, we strictly follow the ASME SA213 standard.
We serve over 85 countries, customizing sizes for efficient heat transfer and leakage - free, safe condenser operation in power, refrigeration, and industrial setups.
Choose Yuhong for quality, performance, and tailored solutions to optimize your condenser systems.

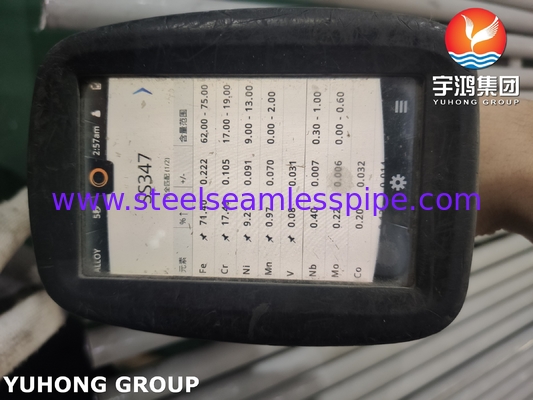

ASME SA213 TP347 Chemical Composition

Grade	UNS	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Chromium	Nickel	Niobium
TP347	S34700	0.08	2	0.045	0.03	1	17.0 - 20.0	9.0 - 13.0	10xC–1.10

Heat Treatment and Grain Size Requirements

Grade	UNS Number	Heat Treat Type	Austenitizing/Solutionizing/Stabilizing Temperature	Cooling Media
TP347	S34700	solution treatment	1900 [1040]°^F,H	water or other rapid cool

Tensile and Hardness Requirements

Grade	UNS	Tensile Strength	Yield Strength	Elongation	Hardness
TP347	S34700	min, ksi[MPa]	min, ksi[MPa]	in 2 in. or 50 mm, min, %	Brinell/Vickers	Rockwell
		75[515]	30[205]	35	192 HBW	90 HRB
					200 HV

ASME SA213 TP347 Equivalent specification

Region	Standard Designation
China	GB 06Cr18Ni11Nb
Japan	CNS 347; JIS SUS 347
South Korea	KS STS 347
USA	ASTM/AISI 347; UNS S34700
ISO	ISO 68CrNiNb 18 - 10
Germany	DIN EN/DIN X6CrNiNb 18 - 10 (X10CrNiNb18 - 9); W - Nr. 1.4550
France	NF EN/NF Z6CNNb 18 - 10
Euro Standard	EN X6CrNiNb 18 - 10; Digital Number 1.4550
Russia	GOST 08X18H12Б
Sweden	SS 2338
UK	BS EN/BS 347S17; 347S31

ASME SA213 TP347 S34700 Stainless Steel Seamless Tube for Condenser Application

ASME SA213 TP347 (UNS S34700) stainless steel seamless tubes, compliant with the ASME SA213 standard, excel in condenser applications due to their unique material properties. The niobium-stabilized austenitic structure provides excellent resistance to intergranular corrosion, crucial for withstanding the corrosive effects of coolants and condensate in condensers. Their high-temperature strength and oxidation resistance ensure reliable performance during thermal cycling, while the seamless construction minimizes leakage risks. These tubes efficiently facilitate heat transfer between steam and cooling media, maintaining optimal condenser efficiency and longevity in power plant, refrigeration, and industrial systems.
