ASTM A358 CLASS 1 TP316L Stainless Steel Welded Pipes High Temperature Industry

ASTM A358 CLASS 1 TP316L Stainless Steel Welded Pipes High Temperature Industry

ASTM A358 CLASS 1 TP316L Stainless Steel Welded Pipes High Temperature Industry
video
ASTM A358 CLASS 1 TP316L Stainless Steel Welded Pipes High Temperature Industry
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: ASTM A358 CLASS 1 / 2 / 3 / 4 / 5 TP316L
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: Negotiable

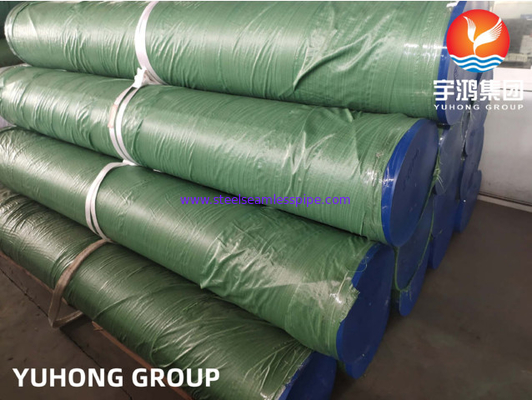

Packaging Details: According to Client Requirements/Wooden Case Packing/Woven Bag Packing
Delivery Time: 15-60 Days
Payment Terms: T/T, L/C
Supply Ability: According to Client Requirements
Contact Now
Detailed Product Description
Standard: ASTM A358 CLASS 1 / 2 / 3 / 4 / 5 Material Grade: TP316L / 1.4404
Type: Welded Outer Diameter: 6mm-630mm Or Customized
Thickness: 0.4-30mm Length: 6 Meters Or Customized
Surface: Polished, Pickled , Bright Annealed Applications: Construction,Decoration,Industry,boiler,Railing & Baluster Constrcution Decoration
High Light:

stainless steel welded pipe

,

welded pipes

ASTM A358 CLASS 1 TP316L Stainless Steel Welded Pipes High Temperature Industry



ASTM A358 CL.1 TP316/316L Stainless Steel Welded Pipe serves the demand of gas and oil industry, power plants, shipbuilding, automotive and many other industries. This type of alloy is leading in the transportation industry for carrying water, gas, oil, etc..



Five Class:

Class 1: pipe is double welded by using filler metal in all passes and completely radiographed.

Class 2: pipes is double welded using filler metal in all passes with no radiography.

Class 3: pipes are single welded

Class 4 pipes are single welded, however the weld pass of Class 4 exposed to the inside pipe surface may be without filler metal addition.

Class 5: pipes are double welded using filler metal and is spot radiographed.



Standard Specification:

Specification ASTM A358 / ASME SA358
Standard ASTM, ASME and API
Size 1” To 48”
Types Electric-Fusion-Welded
Length 6 Meters, Single Random Length, Double Random Length And Customize Size.
Wall Thickness SCH10 - SCHXXS
End Plain End, Beveled End, Treaded
Class CLASS 1, CLASS 2, CLASS 3, CLASS 4, CLASS 5





Equivalent Grades:

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17-11-02 / Z3CND18-14-03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3



Chemical Composition:

% SS 316L
C 0.035 max
Mn 2.0 max
Si 1.0 max
P 0.045 max
S 0.03 max
Cr 16.00 - 18.00
Ni 10.00 - 14.00
Mo 2.00 - 3.00
Fe 68.89 min



Mechanical Properties:

Grade Tensile Str
(MPa) min
Yield Str
0.2% Proof
(MPa) min
Elong
(% in 50mm) min
Hardness
Rockwell B (HR B) max Brinell (HB) max
SS316L 485 170 40 95 217



Applications:
Food & Beverage Industry
Construction Industry
Thermal & Power Plants
Petrochemical, Boilers
Cement Industry
Geothermal Plants
Heat Exchangers
Instrumentation
Mechanical Industry
Oil and Gas Equipments
