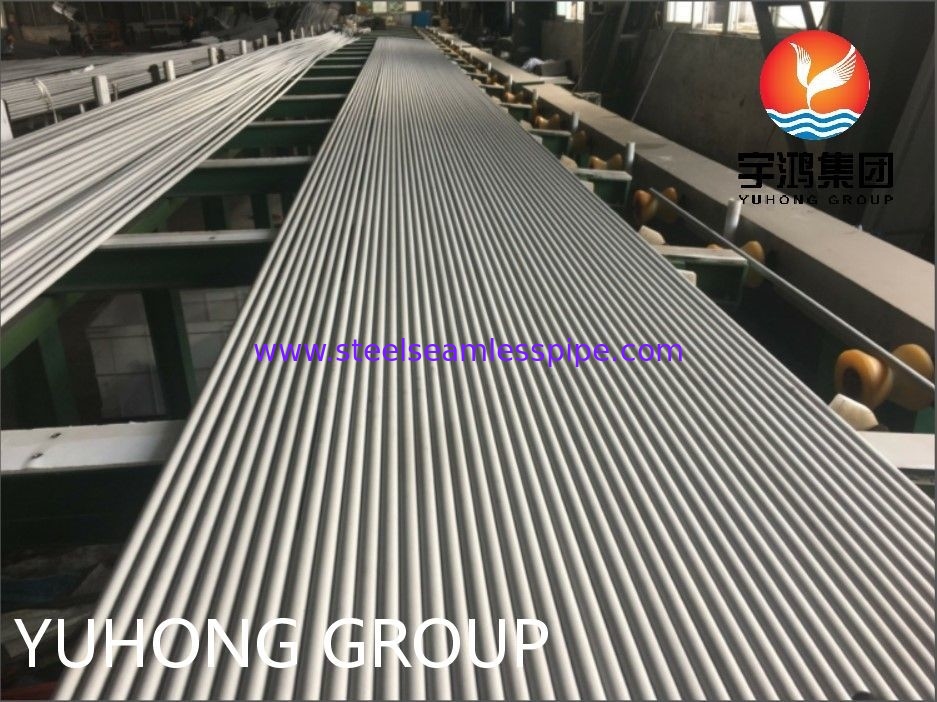

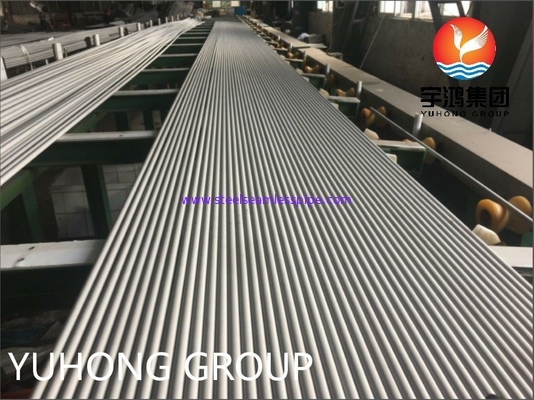

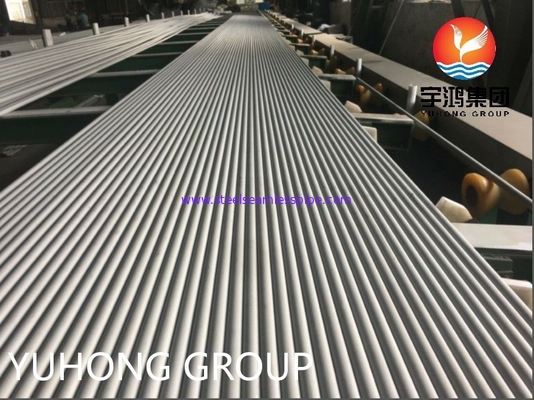

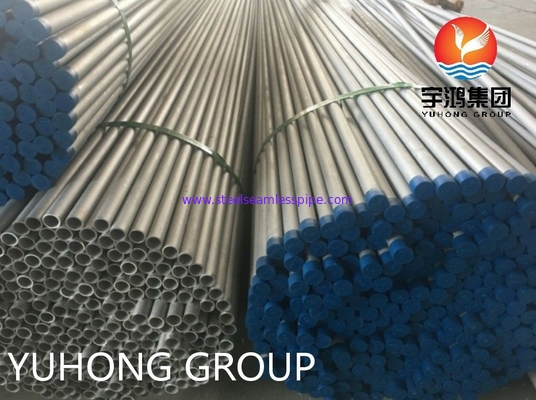

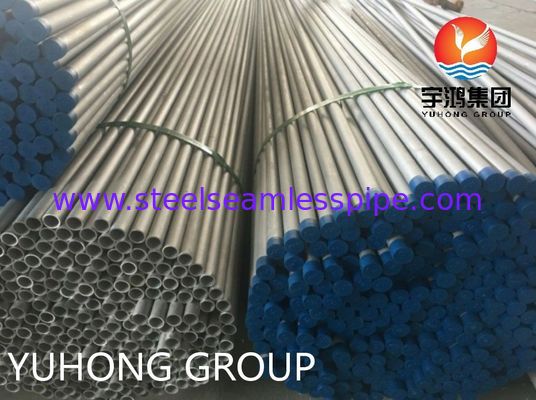

ASME SA213 TP304 Stainless Steel Seamless Tube Bright Annealed
Yuhong Special Steel has over 25 years of experience in supplying seamless and welded pipes made from austenitic stainless steel and nickel alloy steel (including Hastelloy, Monel, Inconel). With annual sales exceeding 80,000 tons of steel pipes and pipelines, our customer base spans more than 45 countries worldwide including the United States, Canada, the United Kingdom, Germany, Italy, Chile, Colombia, Saudi Arabia, South Korea, Singapore, Australia, Poland, and France.
Standard Specifications
- ASTM A213 / A213M-11a: Standard Specification for Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat Exchanger Tubes
- ASTM A269-10: Standard Specification for General Seamless and Welded Austenitic Stainless Steel Pipe
- ASTM A312 / A312M-12: Standard Specification for Seamless, Welded, and Re-cold Worked Austenitic Stainless Steel Pipe
- ASTM A511 / A511M-12: Standard Specification for Seamless Stainless Steel Mechanical Pipe
- ASTM A789/A789M-10a: Standard Specification for General Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
- ASTM A790/A790M-11: Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
- DIN 17456-2010: Universal seamless round stainless steel pipe
- DIN 17458-2010: Seamless round austenitic stainless steel tube
- EN10216-5 CT 1/2: Stainless steel seamless pipes and tubes
- GOST 9941-81: Seamless cold-worked and warm-worked tubes made of corrosion-resistant steel
- Other standards such as BS and JIS can be supplied
Material Grades
Chemical Composition - TP304 (UNS S30400)
| Element |
Content (%) |
| Carbon | 0.08 |
| Manganese | 2.00 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Silicon | 1.00 |
| Chromium | 16.0-20.0 |
| Nickel | 8.0-11.0 |
Available Material Grades
American Standard: Austenitic Steel: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L; Duplex Steel: S31803, S32101, S32205, S32304, S32750, S32760; Others: TP405, TP409, TP410, TP430, TP439
European Standard: 1.4162, 1.4301, 1.4307, 1.4362, 1.4401, 1.4404, 1.4410, 1.4438, 1.4462, 1.4501, 1.4539, 1.4541, 1.4550, 1.4571, 1.4841, 1.4845, 1.4878, 1.4948
GOST Standard: 08Х17Т, 08Х13, 12Х13, 12Х17, 15Х25Т, 04Х18Н10, 08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18, 08Х18Н10, 08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т, 12Х18Н10Т, 12Х18Н12Т, 12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ
Mechanical Properties - TP321 Stainless Steel
| Property |
Imperial (Psi) |
Metric (MPa) |
| Tensile Strength | 75,000 | 515 |
| Yield Strength (0.2% Offset) | 30,000 | 205 |
| Elongation | 35% |
Size Range
| Production |
Outside Diameter |
Wall Thickness |
| Seamless Pipe | 6.00mm - 830mm | 0.5mm - 48mm |
Standard tubing sizes range from 1⁄8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter, with wall thickness from 0.015 to 0.500 in. [0.4 to 12.7 mm]. Other diameters can be furnished provided they comply with all other specification requirements.
Applications
- Food processing equipment, especially beer brewing, milk processing and wine making
- Kitchen benches, sinks, equipment and appliances
- Building paneling, railings and decoration
- Chemical containers, including for transportation
- Heat exchangers
- Woven or welded screens for mining, quarrying and water filtration
- Threaded fasteners
- Springs
- Other industrial applications
