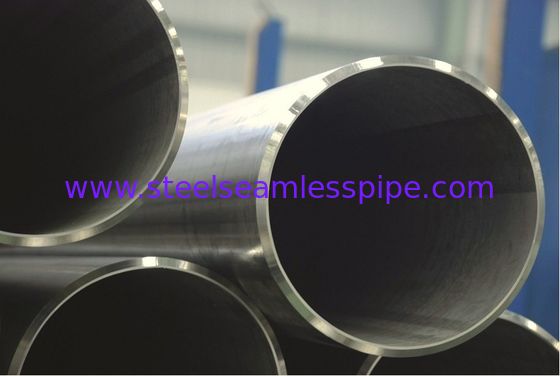

Duplex Stainless Steel Pipe ,A/SA789, A/SA790, A/SA928,DIN17456/17458,EN10216-5 UNS S31803, S32205, S32101, S32304, S32750

Duplex and Super Duplex Pipes and Tubes

Duplex Stainless Steel  have a structure that contains both ferrite and austenite. Duplex alloys have higher strength and better stress corrosion cracking resistance than most austenitic alloys and greater toughness than ferritic alloys, especially at low temperatures. The corrosion resistance of duplex alloys depends primarily on their composition, especially the amount of chromium, molybdenum, and nitrogen they contain.



Duplex Stainless Steel Pipe ,A/SA789, A/SA790, A/SA928,DIN17456/17458,EN10216-5 UNS S31803,S32205,S32101,S32304,S32750 0



Duplex Stainless Steel Pipe ,A/SA789, A/SA790, A/SA928,DIN17456/17458,EN10216-5 UNS S31803,S32205,S32101,S32304,S32750 1

Duplex Stainless Steel Pipe ,A/SA789, A/SA790, A/SA928,DIN17456/17458,EN10216-5 UNS S31803,S32205,S32101,S32304,S32750 2

 Duplex Stainless Steel Pipe ,A/SA789, A/SA790, A/SA928,DIN17456/17458,EN10216-5 UNS S31803,S32205,S32101,S32304,S32750 0

UNS S31803 Pipe&Tube

UNS S32205 Pipe&Tube

UNS S32750 Pipe&Tube

U Bend Duplex Tube



Standard: ASTM/ASME A/SA789, A/SA790, A/SA928, DIN17456/17458, EN10216-5. After negotiation, we can supply pipe with customers'requirement.

Material Grade:UNS S31803,S32205,S32101,S32304,S32750,S32760,1.4462,1.4410etc.

Size Range:



Stainless Steel Seamless Tube

ASTM A789/A789M: OD: Φ12.7mm-Φ203mm; WT:0.5mm-6.35mm

Stainless Steel Seamless Pipe

ASTM A790/A790M: OD: Φ6mm-Φ325mm; WT:0.5mm-30mm

Stainless Steel Welded Tube

ASTM A789/A789M: OD: Φ12.7mm-Φ203mm; WT:0.5mm-4.0mm



Stainless Steel Welded Pipe

ASTM A790/A790M: OD: Φ10mm-Φ2000mm; WT:0.5mm-40mm

(OD≤630mm for single seam; OD>Φ630mm For circumferential seam)

ASTM A928/A928M: OD: Φ10mm-Φ406mm; WT:0.5mm-10mm



U Bend Duplex Tube

Duplex Stainless Steel Pipe ,A/SA789, A/SA790, A/SA928,DIN17456/17458,EN10216-5 UNS S31803,S32205,S32101,S32304,S32750 4

U Bend Duplex Tube

Standard: ASTM/ASME A/SA789, A/SA790, A/SA928, DIN17456/17458, EN10216-5. After negotiation, we can supply pipe with customers'requirement.

Material Grade:

UNS

EN

DIN

C %

Cr%

Ni%

Mo%

N%

Other %

S31803

1.4462

X2CrNiMoN22-5-3

0.030max

21.0-23.0

4.5-6.5

2.5-3.5

0.08-0.20

/

S32205

1.4462

X2CrNiMoN22-5-3

0.030max

22.0-23.0

4.5-6.5

3.0-3.5

0.14-0.20

/

S32101

1.4162



0.040max

21.0-22.0

1.35-1.70

0.10-0.80

0.20-0.25

Cu 0.10-0.80

S32304





0.030max

21.5-24.5

3.0-5.5

0.05-0.60

0.15-0.20

Cu 0.05-0.60

S32750

1.4410

X2CrNiMoN25-7-4

0.030max

24.0-26.0

6.0-8.0

3.0-5.0

0.24-0.32

Cu 0.50max

S32760





0.050max

24.0-26.0

6.0-8.0

3.0-4.0

0.20-0.30

Cu 0.50-1.00





Mechanical  Property:



UNS

Tensile Strength
 Min, Mpa

Yield Strength
Min, Mpa

Elongation in 2 in Or 50mm  Min, %

Hardness Max,
HRC

S31803

620

450

25

30

S32205

655

485

25

30

S32101

700

530

30

30

S32304

690

450

25

30

S32750

800

550

15

32

S32760

750

550

25

32





Size Range:



Stainless Steel Seamless Tube

ASTM A789/A789M: OD: Φ12.7mm-Φ203mm; WT:0.5mm-6.35mm

Stainless Steel Welded Tube

ASTM A789/A789M: OD: Φ12.7mm-Φ203mm; WT:0.5mm-4.0mm
