| Place of Origin: | China , USA, UK |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | API, PED |
| Model Number: | ASTM A403 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGITABLE |
| Packaging Details: | PLY-WOODEN CASE |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T , L/C at sight |
| Supply Ability: | 100 TONS PER MONTH |
| Size: | 2'' | W.T.: | SCH 80 |
|---|---|---|---|
| TYPE: | SMLS | Inspection: | UT, PT |
| High Light: | stainless steel flanges,carbon steel flanges |
||

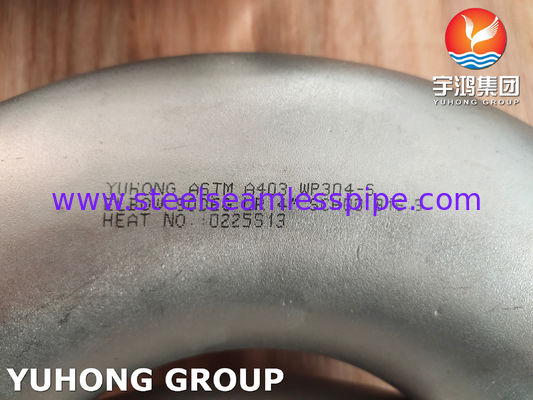

90DEG LR Elbow ASTM A403 WP304-S SMLS Pipeline Engineering Oil Gas Valve Chemical
Overwiew:
Seamless elbow is a kind of pipe fitting used in the bend of the pipeline. In the pipeline system more than the use of all pipe fittings, the largest proportion, about 80%. Usually, different forming processes are selected for elbows of different material cargo wall thickness. Manufacturing plants commonly used seamless elbow forming process are hot push, stamping, extrusion, etc.
Chemical properties of ASTM A403 WP304-S
| Chemical Composition and Mechanical Property for 304 304L | |||||||||||
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | N | Mo | Tensile Strength (Min) |
Yield Strength (Min) |
|
| Mpa | Mpa | ||||||||||
| 304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–10.5 | 18.0–20.0 | 0.1 | / | 515 | 205 |
| 304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–12.0 | 18.0–20.0 | 0.1 | / | 485 | 170 |
Mechanical Properties of ASTM A403 WP304-S
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 515 (Mpa) | 205 (Mpa) | 40 (%) |
Physical Properties of ASTM A403 WP304-S
| Grade | Density(kg/m 3) | Modulus of elasticity (GPa) | Average coefficient of thermal expansion ( μ m/m/°C) | Thermal conductivity (W/mK) | Specific heat0-100 ℃(J/kg.K) | Resistivity (n Ω .m) | |||
| 0-100℃ | 0-315℃ | 0-538℃ | 100°C 时 | 500°C 时 | |||||
| 304/304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
APPLICATION Of ASTM A403 WP304-S
Pipeline
Engineering
Oil Gas
Valve
Chemical
