Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | A860 WPHY60 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PLYWOOD CASE,BUNDLE,WOODEN PALLET |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C at sight, T/T |
| Supply Ability: | 10000 pcs per month |
| MATERIAL: | A860 WPHY60 | Type: | Equal/Reducing/Elbow |
|---|---|---|---|
| OD: | 1/4" To 100" | SURFACE: | Black Painting Or Other Color Coating |
| WT: | Sch10s To XXS | STANDARD: | ANSI B16.9, MSS SP 43 |
| Material: | Carbon Steel | Keyword: | Carbon Steel Pipe Elbow,Pipe Fitting,90 Degree Elbow |
| High Light: | stainless steel pipe fitting,stainless pipe fittings |
||
Yuhong is one of the biggest projects pipeline products supplier in China, Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Abstract of A860
ASTM A860 is the standard specification for wrought high-strength ferritic steel butt-welding fittings of seamless and electric fusion-welded construction. These pipe fittings shall be furnished in accordance with the dimensions of ASME B16.9(for sizes NPS 14 and smaller) or MSS SP 75(for sizes NPS 16 through NPS 48). They can be further categorized into 6 grades: WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70. Pipe fittings manufactured to ASTM A860 are usually used with API 5L line pipes and ASTM A694 high-strength forged flanges in high-pressure gas and oil transmission and distribution systems.
This specification covers wrought high-strength low-alloy butt-welding steel fittings of seamless and electric fusion-welded construction for applications in high-pressure gas and oil transmission and distribution systems. Starting materials shall consist of plate, sheet, forgings, forging quality bar, and seamless or fusion-welded tubular products with filler metal added. Materials shall be heat treated by normalizing, quenching, and tempering or stress relieving. Specimens shall conform to required values of chemical composition and mechanical properties, namely: yield strength, tensile strength, elongation, notch toughness, and hardness. This specification does not require hydrostatic testing.

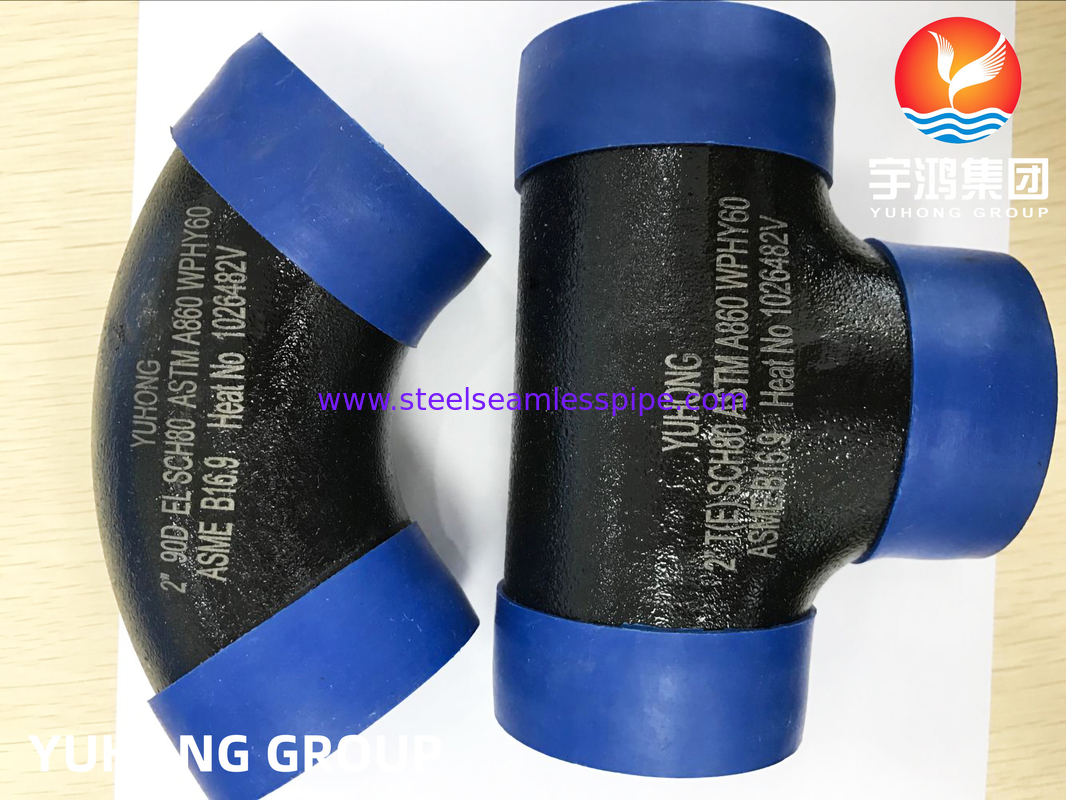

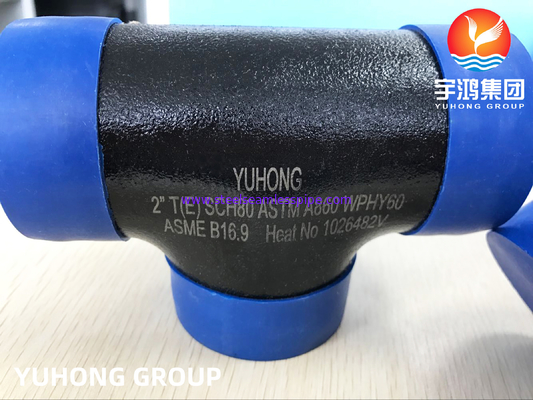

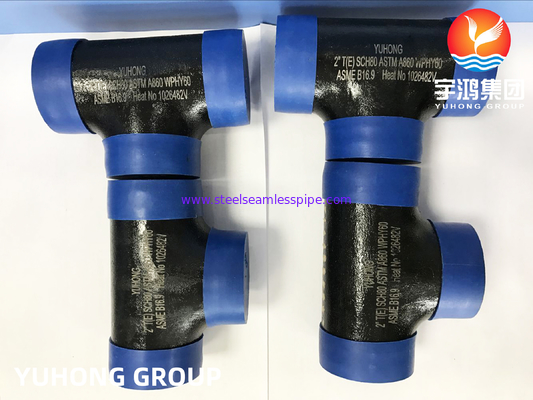

Equal Tee and Reducing Tee

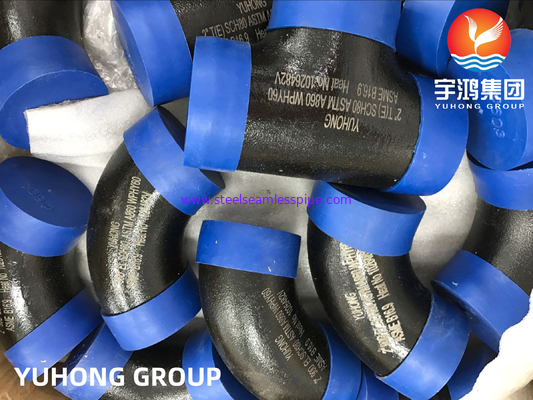

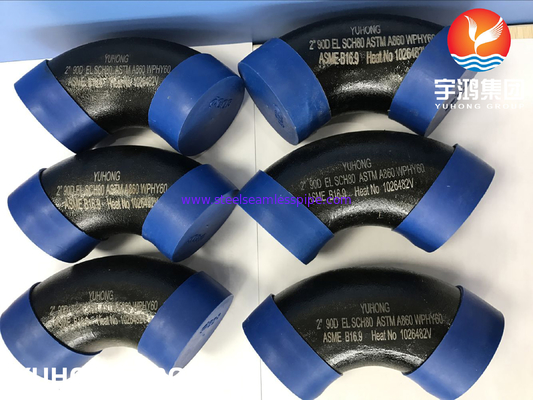

90 Degree Elbow, 45 Degree Elbow, Long Radius Elbow, Short Radius Elbow.
Concentric Reducer and Eccentric Reducer
End Cap, Seamless Cap and Welded Cap
Type A Stub End, Type B Stub End, Type C Stub End.
Chemical Composition
|
Grade
|
C
|
Mn
|
P
|
S
|
Si
|
Ni
|
Cr
|
Mo
|
Cu
|
Ti
|
V
|
Cb
|
Al
|
| A860 WPHY 60 |
0.20
|
1.00-1.45 |
0.03
|
0.01
|
0.15-0.40
|
0.50
|
0.30
|
0.25
|
0.35
|
0.05
|
0.10
|
0.04
|
0.06
|
Mechanical Properties
|
Mechanical Properties
|
Tensile (MPa)
|
Yield (MPa)
|
Elongation % 2in
|
|
WPHY60 |
515-690
|
415
|
28
|
Production Range
| Grade Specification | Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 60 |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48"NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Application
