Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | ASME SA213 TP316L |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 Tons Per Month |
| Certification: | ISO, SGS, BV, ISO & SGS, ISO/CE/SGS | Steel Grade: | 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series |
|---|---|---|---|
| Type: | Seamless, Welded, Round Pipe/Tube | Standard: | ASTM, AISI, GB, JIS, DIN, EN |
| Length: | Customized | Thickness: | Customized |
| Technique: | Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them | Product Name: | Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube |
| Outer Diameter: | 6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm | Surface: | Annealing, 8K, Polishing Or Unpolishing, Morror/Satin |
| Finish: | Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright | Application: | Industrial, Construction, Decoration, Etc. |
| Certificate: | ISO, SGS, BV, Etc. | MOQ: | 1 Ton |
| Material: | Stainless Steel | Package: | Standard Export Package |
| Payment Term: | T/T, L/C, Western Union, Etc. | Shape: | Seamless Tube |
| Size: | Customized | Surface Treatment: | Polished |
| High Light: | Boiler Stainless Steel Seamless Tube,Stainless Steel Round Tube SA213,Heat Exchanger Seamless Welded Pipe |
||
Yuhong Special Steel has been engaged in austenitic stainless steel, nickel alloy steel (Hastelloy, Monel, Inconel, Inconel) seamless welded pipes and pipes for more than 25 years, with an annual sales of more than 80,000 tons of steel pipes and pipes. Our customers have covered more than 45 countries including, the United States, Canada, the United Kingdom, Germany, Italy, Chile, Colombia, Saudi Arabia, South Korea, Singapore, Australia, Poland, France, etc.
SA213 Tp316l is a heat exchange tube specification made of 316l austenitic stainless steel. YUHONG is a large supplier and manufacturer of all kinds of stainless steel pipes. The SA 213 standard covers ferritic and austenitic steel heat exchanger tubes. SA213 316l is a low carbon version of the 316 material. Therefore, SA213 Tp 316l has higher toughness but lower strength compared to 316 grade pipe. SA 213 Tp 316l pipes can be produced under resistance welding, electrofusion welding or cold drawing.
Standard Specification:
ASME SA213 / SA213M-11a: Standard Specification for Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat Exchanger Tubes
ASTM A269-10: Standard Specification for General Seamless and Welded Austenitic Stainless Steel Pipe
ASTM A312 / A312M-12: Standard Specification for Seamless, Welded, and Re-cold Worked Austenitic Stainless Steel Pipe
ASTM A511 / A511M-12: Standard Specification for Seamless Stainless Steel Mechanical Pipe
ASTM A789/A789M-10a: Standard Specification for General Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
ASTM A790/A790M-11: Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
DIN 17456-2010: Universal seamless round stainless steel pipe.
DIN 17458-2010: Seamless round austenitic stainless steel tube
EN10216-5 CT 1/2: Stainless steel seamless pipes and tubes
GOST 9941-81: Seamless cold-worked and warm-worked tubes made of corrosion-resistant steel.
Other standards such as BS and JIS can be supplied
Material Grade:
| Grade | UNS Designation | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum | Nitrogen | Niobium | Titanium | Other Elements |
| TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | -- | -- | -- | -- |
| American Standard |
Austenitic Steel: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Duplex Steel : S31803, S32101, S32205, S32304, S32750, S32760 Others: TP405, TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4162, 1.4301, 1.4307,1.4362, 1.4401, 1.4404, 1.4410, 1.4438, 1.4462, 1.4501, 1.4539, 1.4541, 1.4550, 1.4571, 1.4841, 1.4845,1.4878, 1.4948, |
| GOST Standard | 08Х17Т, 08Х13, 12Х13, 12Х17, 15Х25Т, 04Х18Н10, 08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18, 08Х18Н10, 08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т, 12Х18Н10Т, 12Х18Н12Т, 12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Seamless Pipe | 6.00mm-830mm | 0.5mm-48mm |
| SS 316L Tube | ASTM A213 / ASME SA 213 Gr 316L is a Standard Specification for SS Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | 316L Stainless Steel Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish SA 213 TP 316L Stainless Steel Tubing or Custom Finish as per customer's specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| Value Added Services |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| END | Plain End, Beveled End, Treaded SS 316L Tube |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | Stainless Steel 316L Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Tolerance |
|
| Marking |

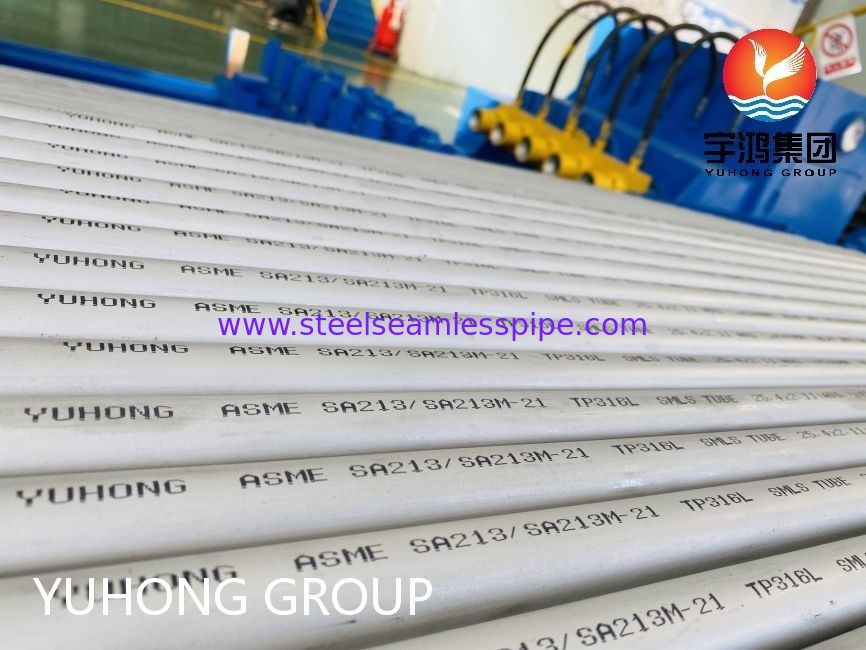

Marked Pipe Sample: SA 213 Gr 316L 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Test Certificate |
|
| SA213 316L SS Tubing Packaging | Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request |
| Uses & Application |
|
The tubing sizes and thicknesses usually furnished to this specification are 1⁄8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm], inclusive, in minimum wall thickness or, if specified in the order, average wall thickness. Tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.
Application:
