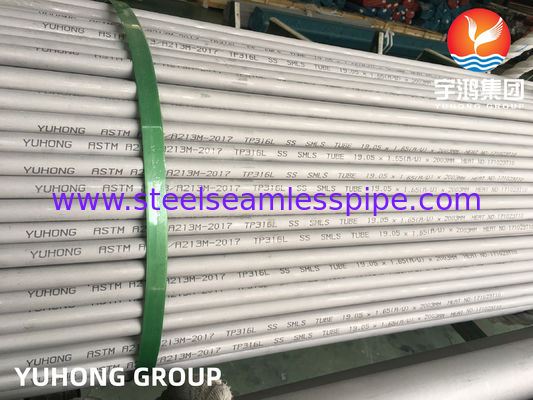

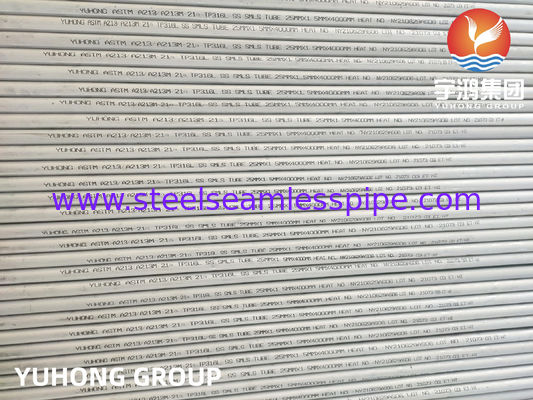

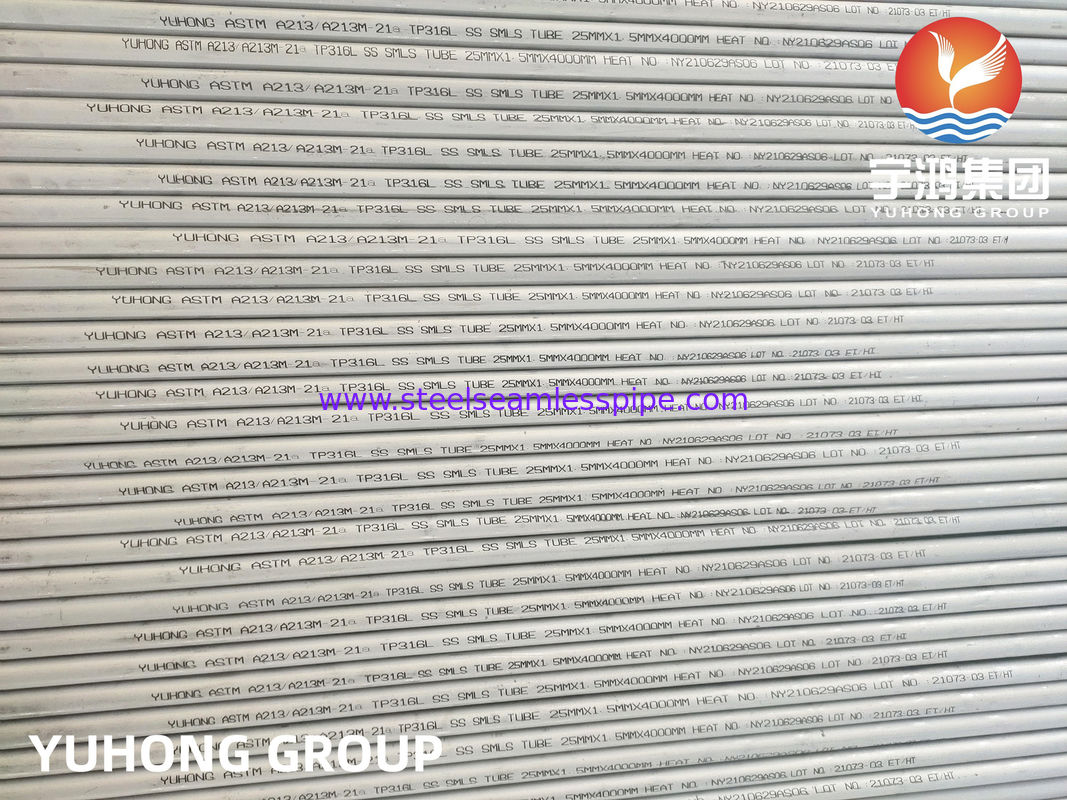

ASTM A213 TP316L Cold Drawn Stainless Steel Seamless Tube for Heat Exchanger and Boiler Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 TP316L

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	1500 Tons Per Month

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Steel Grade:	300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series	Type:	Seamless, Welded, Round Pipe/Tube
Standard:	ASTM, AISI, GB, DIN, JIS	Certification:	ISO, SGS, BV, ISO & SGS, ISO/CE/SGS
Length:	3000mm-6000mm, 6 Meters Or Customized, 18000max., 11.8m Or As Required., 8m	Thickness:	0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm
Technique:	Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them	Product Name:	Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube
Outer Diameter:	6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm	Surface:	Annealing, 8K, Polishing Or Unpolishing, Morror/Satin
Finish:	Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright	Material:	Stainless Steel
Shape:	Seamless Tube
Highlight:	Stainless Steel Round Tube Cold Drawn , Boiler Seamless Cold Drawn Steel Tube , TP316L Seamless Stainless Steel Tube

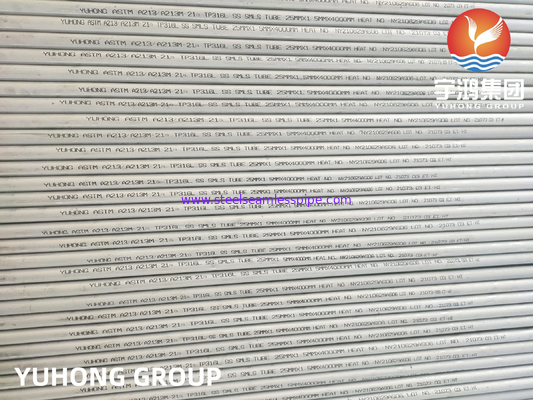

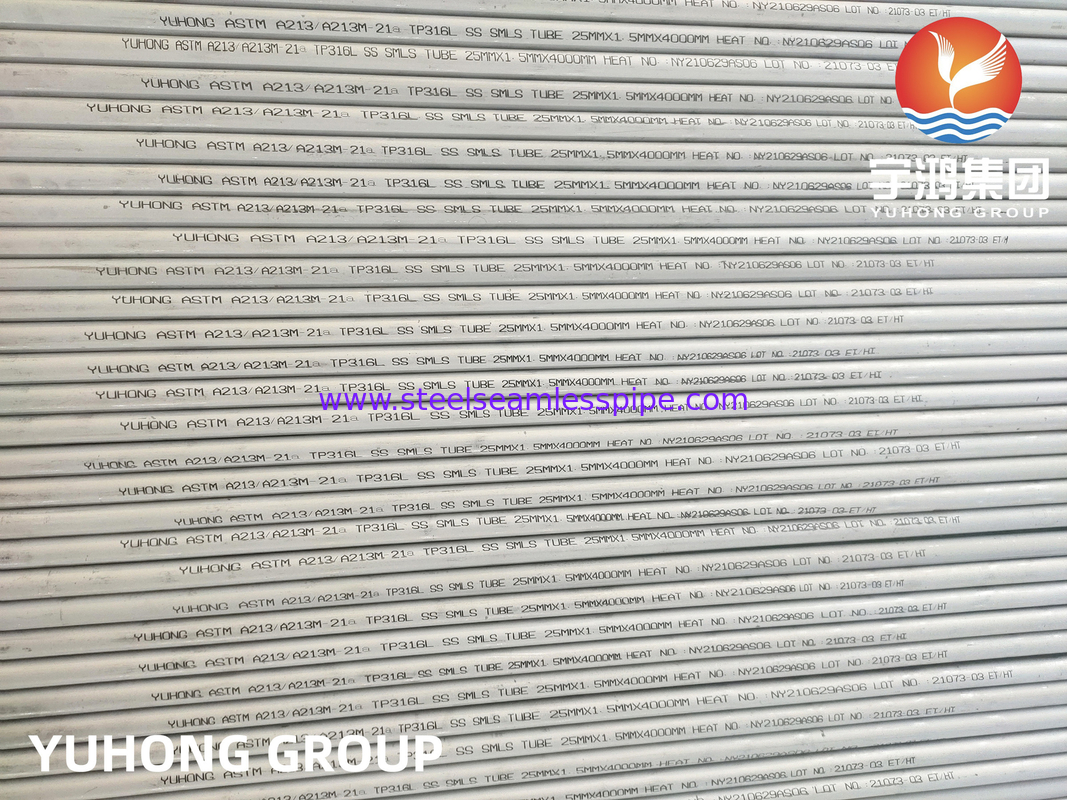

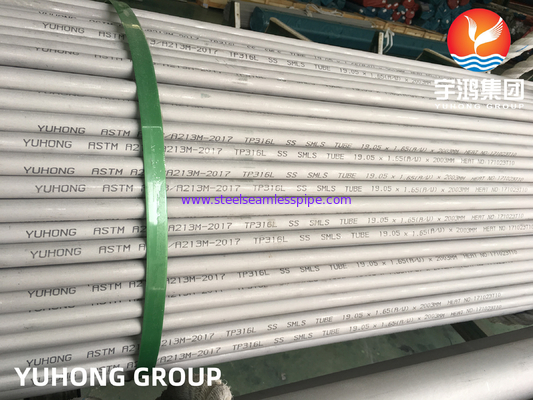

ASTM A213 TP316L Stainless Steel Seamless Tube

Cold drawn seamless tubing specifically designed for heat exchangers and boilers, manufactured from 316L austenitic stainless steel for superior performance in high-temperature applications.

Product Overview

SA213 TP316L is a specialized heat exchange tube specification utilizing 316L austenitic stainless steel. As a leading manufacturer and supplier of stainless steel pipes, we produce SA213 TP316L tubes that meet rigorous international standards for quality and performance.

The SA213 standard encompasses both ferritic and austenitic steel heat exchanger tubes. SA213 TP316L features a low carbon composition compared to standard 316 grade, providing enhanced toughness while maintaining excellent corrosion resistance properties.

Our manufacturing processes include resistance welding, electrofusion welding, and cold drawing techniques to ensure optimal product quality and dimensional accuracy.

Product Specifications

Available Sizes

ASME SA213 TP316L pipe is available in diameters ranging from ½" to 100". ERW and cold drawn seamless pipes typically feature ODs up to 24 inches, while electrofusion welded 316L stainless steel pipe accommodates diameters from 6 inches to 100 inches.

Product Variants

316L Stainless Steel Square Tube - Ideal for structural applications and high-pressure systems including hydraulic systems for high-temperature service
316L Stainless Steel Rectangular Tube - Complementary to square tube applications
316L Stainless Steel Seamless Tubing - Perfect for sensitive and precision-critical applications

We offer comprehensive product options including Electrofusion Welded (EFW), 316L Seamless, and 316L Welded Pipe types, all manufactured to international standards with rigorous quality testing.

Mechanical Properties

Grade	Tensile Stress (MPa) Min	Yield Strength 0.2% Proof (MPa) Min	Elongation (% in 50mm) Min	Rockwell B (HR B) Max	Brinell (HB) Max
SS 316L Tube	485	170	40	95	217
SS 316H Tube	515	205	40	95	217

Chemical Composition

Material	C	Mn	Si	P	S	Cr	Mo	Ni	N
SA213 TP 316L Tube	Max 0.03	Max 2.0	Max 0.75	Max 0.045	Max 0.03	16.0-18.0	2.00-3.00	10.0-14.0	Max 0.10
SA213 TP 316H Tube	0.04-0.10	0.04-0.10	Max 0.75	Max 0.045	Max 0.03	16.0-18.0	2.00-3.00	10.0-14.0	-

International Equivalents

Material	UNS No	Old British BS	EN/Euronorm No	EN/Euronorm Name	Swedish SS	Japanese JIS
SA213 TP 316L Tube	S31603	316S11	1.4404	X2CrNiMo17-12-2	2348	SUS 316L
SA213 TP 316H Tube	S31609	316S51	-	-	-	-

Applications

Food processing equipment, especially beer brewing, milk processing, and wine making
Kitchen benches, sinks, equipment and appliances
Building paneling, railings and decorative elements
Chemical containers, including transportation vessels
Heat exchangers for industrial processes
Woven or welded screens for mining, quarrying, and water filtration
Threaded fasteners and mechanical components
Spring manufacturing and precision components
Various industrial and commercial applications requiring corrosion resistance and high-temperature performance
