Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | UNS N02200 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 100 tons per month |

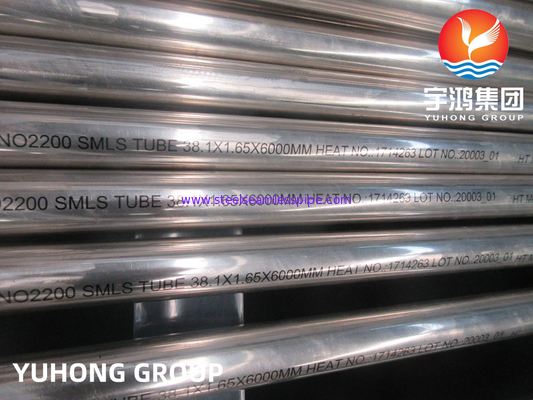

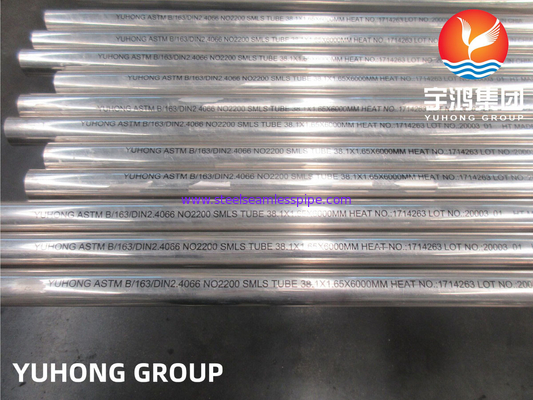

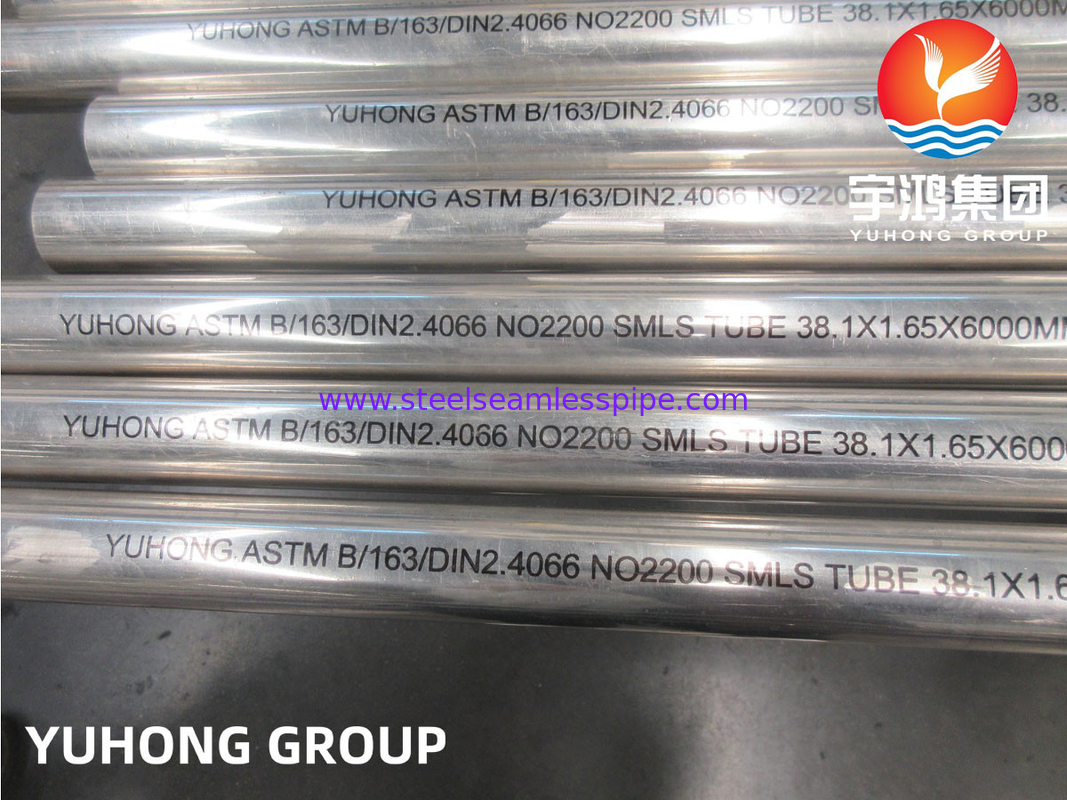

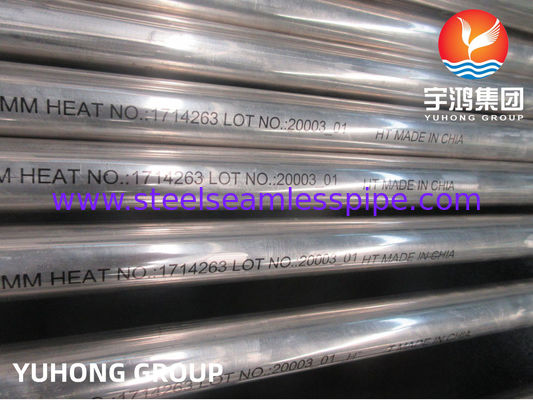

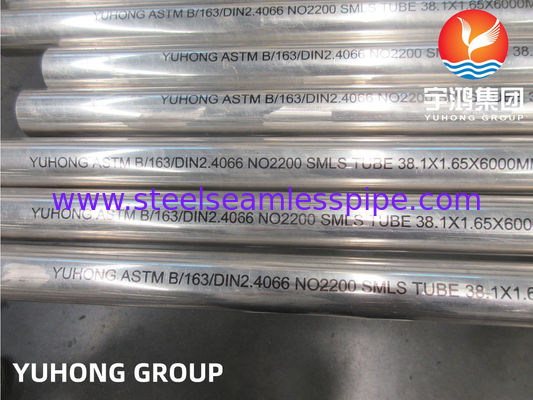

| Product Name: | Sameless Tube | Shape: | Round, Square, Rectangle |
|---|---|---|---|
| Standard: | ASTM B163 | Material: | UNS N02200 |
| Surface: | Annealing / Pickling / Polishing / Bright | NDT: | ET, HT, PT |
| High Light: | Oil Gas Refineries Nickel Alloy Tube,UNS N02200 Seamless Tube,Nickel Alloy 200 Steel Seamless Tube |
||
Abstract
Nickel 200 tubes are made of 99% nickel alloy, known as commercial pure nickel. The material has a minimum yield strength of 148MPa and a minimum tensile strength of 462MPa, but the material has very high corrosion resistance. The material consists of carbon, manganese, silicon, sulfur, copper, iron and 99% nickel. Applications where these ASTM B163 nickel 200 tubes can be used include chemical storage and processing, synthetic fiber production, and methods using fluorine and sodium hydroxide. However, beyond food processing, other applications include defence and aerospace. At the same time, these ASTM B163 tubes have excellent alkali resistance at different concentrations and temperatures.
ASTM B163 Nickel Alloy 200 Chemical Composition
| Cu | Ni | Fe | Mn | C | S | Si |
| 0.25 max | 99.0 min | 0.4 max | 0.35 max | 0.15 max | 0.01 max | 0.1 max |
ASTM B163 Nickel Alloy 200 Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.89 g/cm3 | 1370 °C (2550 °F) | Psi – 1,15,000 , MPa –790 | Psi – 52,000 , MPa – 355 | 40 % |
ASTM B163 Nickel Alloy 200 Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN | BS | GOST | AFNOR |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | Ni 99.2 | NA 11 | НП-2 | N-100M |
ASTM B163 Nickel Alloy 200 Physical Properties
| Grade | ASTM B163 Nickel 200 | |
|---|---|---|
| Density | 8.9 g/cm3 | |
| Melting Point | 1446 °C (2635 °F) | |
Application:
Oil & Gas
Petrochemical
Refineries
Fertilizers
Chemical
Construction
