Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG GROUP |
| Certification: | API, PED |
| Model Number: | WPB |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGITABLE |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 TONS PER MONTH |
| Material: | Inconel 625 | Special Alloys: | Cooper Nickel, Ni-based, Cu-based, Co-based, Fe-based |
|---|---|---|---|
| Size: | 1/2" - 10" | Manufacturing Standard: | ASME/ANSI B16.9, JIS, DIN, EN, API 5L, Etc |
| Surface Treatment: | Shot Blasted, Rust-proof Black Oil | Certificatio: | API, PED |
| NDT: | PT | ||
| High Light: | Shot Blasted Steel Pipe Cap,Inconel 625 Steel Pipe Cap,Steel Pipe Fittings B16.9 |
||

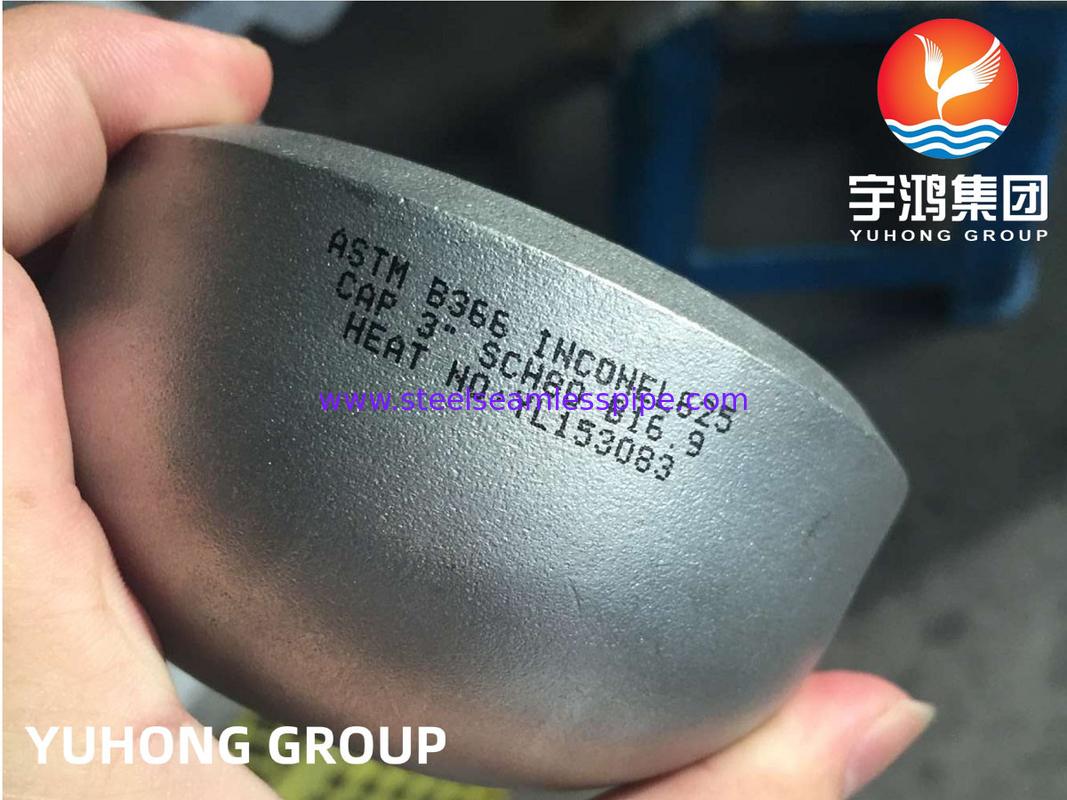

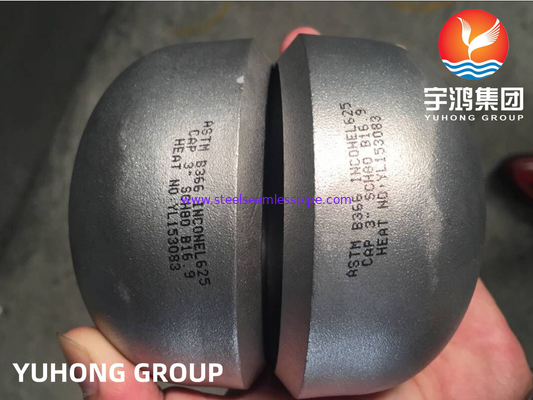

ASTM B366 Inconel 625 Cap Steel Pipe Fittings B16.9 Oil Gas Power Generation
Inconel 625 also known as WNR 2.4856 butt weld fittings, these alloy 625 butt weld fittings are a nickel-chromium-molybdenum alloy with good corrosion resistance in a wide range of corrosive media, particularly against pitting and crevice corrosion.UNS N06625 butt weld fittings are a favorable choice for seawater applications.
Chemical Composition (%) of ASTM B366 Inconel 625 CAP
| GRADE | Ni | C | Fe | Si | Mn | S | Al | Ti | Nb + Ta | P | Mo | Cr2 |
| Inconel 625 | 58.0 min | 0.10 max | 5.0 max | 0.50 max | 0.50 max | 0.015 max | 0.40 max | 0.40 max | 3.15–4.15 | 0.015 max | 8.0-10.0 | 20.0-23.0 |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.4 g/cm3 | 1350 °C (2460 °F) | Psi - 75,000 , MPa - 517 | Psi - 1,35,000 , MPa -930 | 42.5 % |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST | OR |
| Inconel 625 | N06625 | 2.4856 | NC22DNB4M | NiCr22Mo9Nb | NCF 625 | NA 21 | ХН75МБТЮ | ЭИ602 |
Application
Oil & Gas
Gas Processing
Petrochemical
Power Generation
Food Processing
Fertilizers
