Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API, PED |
| Model Number: | WP304 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 TONS PER MONTH |
| Materials: | WP304 | Size: | 1/8"NB TO 48"NB IN |
|---|---|---|---|
| Specification: | ASTM A403 | Dimension Standard: | ASME B16.9 |
| O.D.: | 1/8”NB To 48”NB | W.T.: | Schedule 10s - Schedule XXS |
| High Light: | Heat Exchanger Butt Weld Cap,Oil Gas Butt Weld Cap,WP304 Steel Pipe Fittings |
||

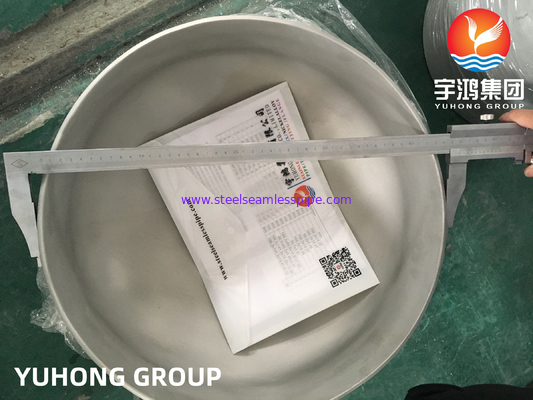

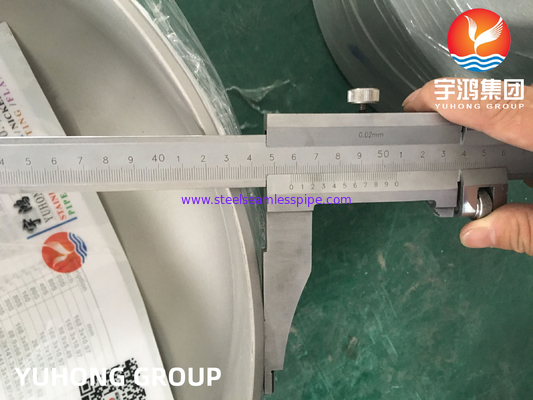

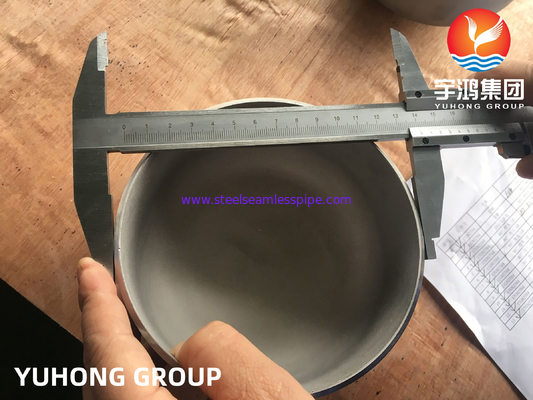

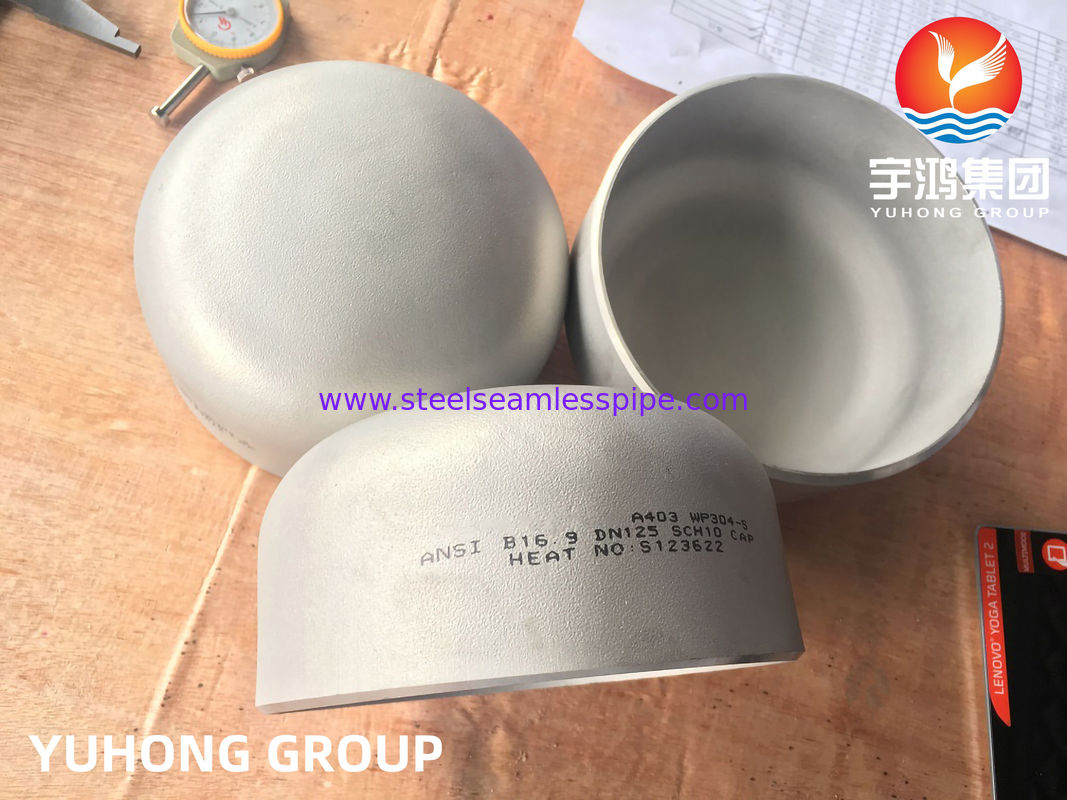

ASTM A403 WP304 Cap Butt Weld Fittings B16.9 For Oil Gas Heat Exchanger
Overwiew
A403 304 stainless steel covers the standard for forged austenitic stainless steel fittings for pressure piping applications. Materials for fittings shall include stainless steel forgings, stainless steel bars, stainless steel plates, or seamless or welded stainless steel pipe fitting products.
| Chemical Composition and Mechanical Property for 304/304L | |||||||||||
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | N | Mo | Tensile Strength (Min) |
Yield Strength (Min) |
|
| Mpa | Mpa | ||||||||||
| 304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–10.5 | 18.0–20.0 | 0.1 | / | 515 | 205 |
| 304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–12.0 | 18.0–20.0 | 0.1 | / | 485 | 170 |
| Grade | Tensile Strength (MPa) minimum | Yield Strength 0.2% Proof (MPa) minimum | Elongation (% in 50mm) minimum | Hardness | |
| Rockwell B (HR B) maximu | Brinell (HB) maximu | ||||
| Stainless Steel 304 Pipe Fittings | 515 | 205 | 40 | 92 | 201 |
| Stainless Steel | Tradename | UNS no. | Werkstoff No. | Density (g/cm3) |
| Stainless Steel 304 Pipe Fittings | 304 Stainless | S30400 | 1.4301 | 8.0 |
Application
Oil & Gas Industry
Heat Exchangers
Condensers
Nuclear Plants
Boilers
