ASTM A182 F304 Insert, Socket Weld Fitting B16.11, In High-Pressure Piping Systems

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ISO9001, PED, etc.
Model Number:	ASTM A182 - F304

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case / Carton
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	5000 pcs per month

Contact Now

All Products

Stainless Steel Seamless Pipe (286)

Stainless Steel Seamless Tube (275)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (28)

Needle Tube (102)

Fin Tube (619)

Heat Exchanger (16)

Heat Exchanger Tube (425)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (78)

Copper Alloy Tube (222)

Alloy Steel Tube (182)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (141)

Steel Fitting (797)

Steel Flange (583)

Others (388)

Cladding Parts (7)

Detailed Product Description

Size Range:	Commonly From ½" To 4" (ASME B16.11)	Pressure Rating:	Class 3000 / 6000 / 9000 (depending On System)
Connection Type:	Socket Weld (end Inserted And Fillet Welded)	Surface Finish:	Machined Finish For Clean Weld Preparation

ASTM A182 F304 Insert, Socket Weld Fitting B16.11, In High-Pressure Piping Systems

Name: ASTM A182 F304 Insert, Socket Weld Fitting B16.11, In High-Pressure Piping Systems
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A182 - F304
Price: 100000.00 USD
Availability: InStock

What Is ASTM A182 F304 Insert?

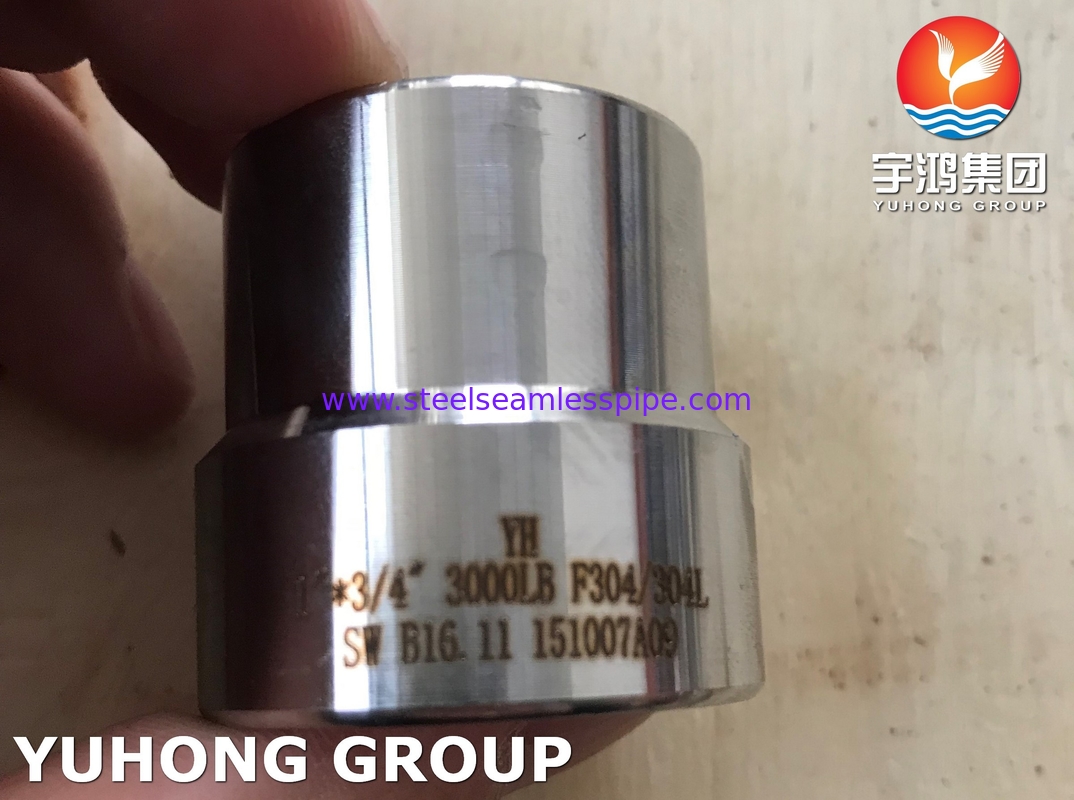

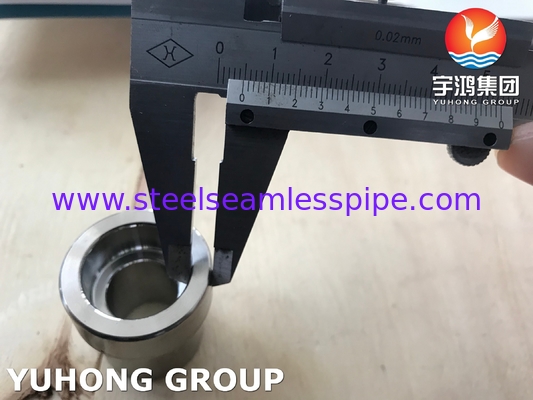

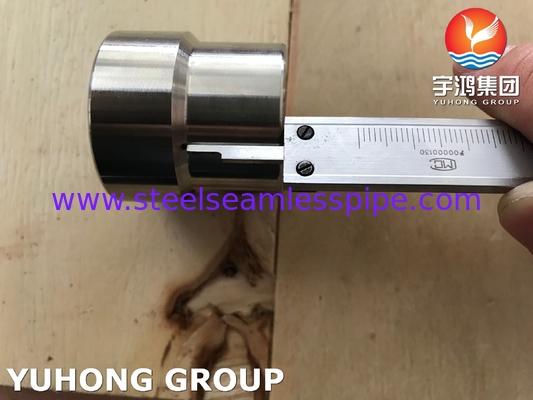

ASTM A182 F304 Insert is a forged stainless steel pipe fitting made from grade F304 (the forged version of 304 stainless steel), and is typically used as a socket weld fitting in high-pressure piping systems.

Definition & Description

Insert: A short-length socket weld fitting used to connect pipe ends by inserting them into the socket and welding around the outside.
Socket Weld: A type of welded joint where the pipe is inserted into a recessed area of the fitting, creating a strong, leak-proof connection ideal for high-pressure and high-temperature service.
Material: ASTM A182 F304 — forged austenitic stainless steel (similar to 304 stainless steel), offering excellent corrosion resistance, weldability, and mechanical strength.

Chemical Composition of A182 F304

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
304	min. max.	- 0.08	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 10.5	- 0.10
304L	min. max.	- 0.030	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 12.0	- 0.10

Mechanical Properties of A182 F304

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
304	515	205	40	92	201
304L	485	170	40	92	201
