Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM B366 UNS N10675 LAP JOINT STUB END |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood case/Pallet |
| Delivery Time: | according to quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 tons per month |
| Standard: | ASTM B366/ASME SB366 | Material: | UNS N10675;HASTELLOY B3 |
|---|---|---|---|
| Type: | Nickel Alloy Buttweld Lap Joint Stub End | Sizes: | 1/2''-24''(DN15-DN600) Or Custom Size |
| Thickness: | SCH10S-XXS | Packing: | Plywood Case/Pallet |
| High Light: | ASTM B366 Lap Joint Stub End,Hastelloy B3 Nickel Alloy Buttweld Fittings,Buttweld Lap Joint Stub End |
||
Overview:
Hastelloy B3 is a nickel-molybdenum alloy that is highly resistant to a wide range of corrosive environments, including both oxidizing and reducing acids. Hastelloy B3 lap joint stub end is a type of piping component used in industries where highly corrosive materials are handled, such as chemical processing, petrochemical, and oil and gas industries.

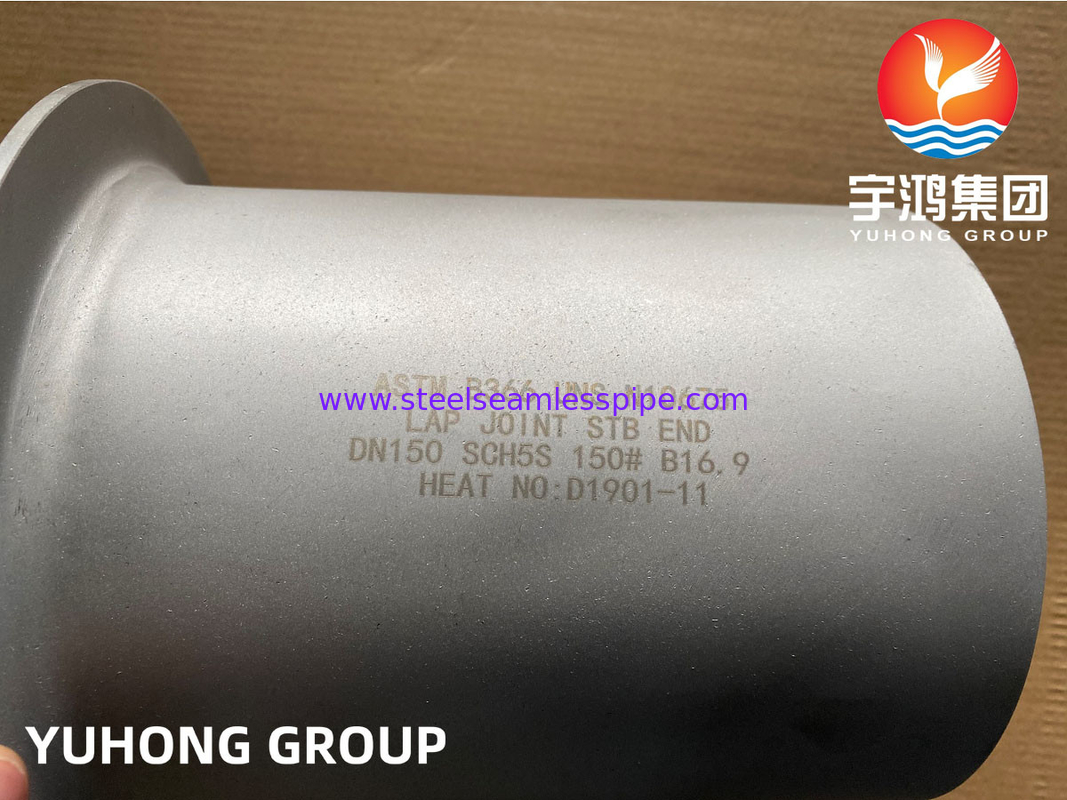

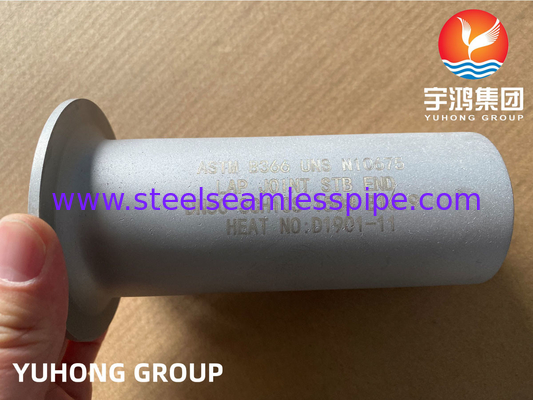

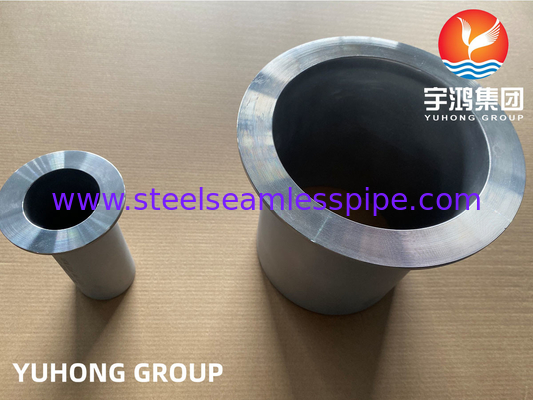

A lap joint stub end is a fitting used in combination with a lap joint flange, and together they form a leak-proof connection between two pipes. The Hastelloy B3 lap joint stub end is made of the same alloy as the pipes it is connected with, so it provides excellent corrosion resistance and durability.
Specification:
| Standard | ASTM B366 & Its equivalent ASME, DIN & EN Standard. |
| Grades | WPHB-3 |
| Size | 1/2''-24'' or custom size |
| Wall Thickness | SCH10S to SCH.XXS |
| End | Beveled End |
| Surface | Sand Blasting |
| Packing | Plywood case/Pallet |

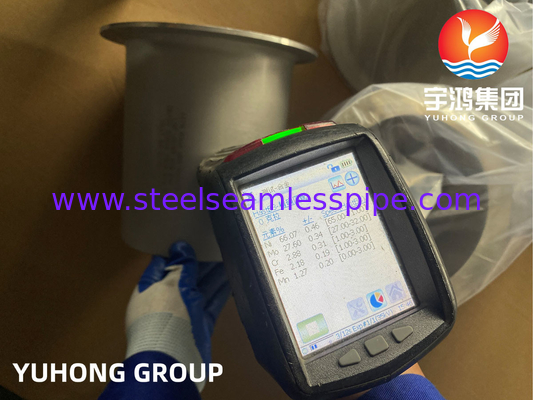

Chemical Composition:
| Grade | UNS | Ni | Cr | Mo | Fe | W | C | Si | Co | Mn | V | P | S | Ti | Cu | Al | Zr | Cb | Ta | Ni+Mo |
| WPHB–3 | N10675 | 65.0 min | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 3.0 max | 0.01 max | 0.1 max | 3.0 max | 3.0 max | 0.20 max | 0.30 max | 0.01 max | 0.20 max | 0.20 max | 0.50 max | 0.10 max | 0.20 max | 0.02 max | 94.0-98.0 |
Mechanical Properties:
| Grade | UNS |
Density g/cm3 |
Tensile Strength min, ksi (MPa) |
Yield Strength min, ksi (MPa) |
Elongation in 2 in. or 50mm, min (%) |
| WPHB–3 | N10675 | 9.22 | 110(760) | 51(350) | 40 |
Dimension:
 |
||||||||
| Nominal Size |
OD of Cylinder (mm) |
Length (mm) |
Radius of Fillet (mm) |
Diameter of Lap (mm) |
||||
| DN | NPS | OD | F | R | G | |||
| Max. | Min. | Long Type | Short Type | A | B max | |||
| 15 | 1/2 | 22.8 | 20.5 | 76 | 51 | 3 | 0.8 | 35 |
| 20 | 3/4 | 28.1 | 25.9 | 76 | 51 | 3 | 0.8 | 43 |
| 25 | 1 | 35.0 | 32.6 | 102 | 51 | 3 | 0.8 | 51 |
| 32 | 1 1/4 | 43.6 | 41.4 | 102 | 51 | 5 | 0.8 | 64 |
| 40 | 1 1/2 | 49.9 | 47.5 | 102 | 51 | 6 | 0.8 | 73 |
| 50 | 2 | 62.4 | 59.5 | 152 | 64 | 8 | 0.8 | 92 |
| 65 | 2 1/2 | 75.3 | 72.2 | 152 | 64 | 8 | 0.8 | 105 |
| 80 | 3 | 91.3 | 88.1 | 152 | 64 | 10 | 0.8 | 127 |
| 90 | 3 1/2 | 104.0 | 100.8 | 152 | 76 | 10 | 0.8 | 140 |
| 100 | 4 | 116.7 | 113.5 | 152 | 76 | 11 | 0.8 | 157 |
| 125 | 5 | 144.3 | 140.5 | 203 | 76 | 11 | 1.6 | 186 |
| 150 | 6 | 171.3 | 167.5 | 203 | 89 | 13 | 1.6 | 216 |
| 200 | 8 | 222.1 | 218.3 | 203 | 102 | 13 | 1.6 | 270 |
| 250 | 10 | 277.2 | 272.3 | 254 | 127 | 13 | 1.6 | 324 |
| 300 | 12 | 328.0 | 323.1 | 254 | 152 | 13 | 1.6 | 381 |
| 350 | 14 | 359.9 | 354.8 | 305 | 152 | 13 | 1.6 | 413 |
| 400 | 16 | 411.0 | 405.6 | 305 | 152 | 13 | 1.6 | 470 |
| 450 | 18 | 462.0 | 456.0 | 305 | 152 | 13 | 1.6 | 533 |
| 500 | 20 | 514.0 | 507.0 | 305 | 152 | 13 | 1.6 | 584 |
| 550 | 22 | 565.0 | 558.0 | 305 | 152 | 13 | 1.6 | 641 |
| 600 | 24 | 616.0 | 609.0 | 305 | 152 | 13 | 1.6 | 692 |
|
Notes:
|
||||||||
