Asme Sa179 Diameter 25.4mm Cs Tube With Embedded Type Fins Finned Tube

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	16mm heat exchanger finned tube

Payment & Shipping Terms:

Minimum Order Quantity:	100 kgs
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
Delivery Time:	20-80 days
Payment Terms:	L/C, T/T
Supply Ability:	800Tons/ month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Type:	Fin Tube, Heat Exchanger Tube, Stainless Steel Heating Equipment, Three Air Duct Condenser, Refrigerant Liquid Receiver	Standard:	ASME SA179
Tube Material:	Carbon Steel	Base Tube O.D.:	25.4mm

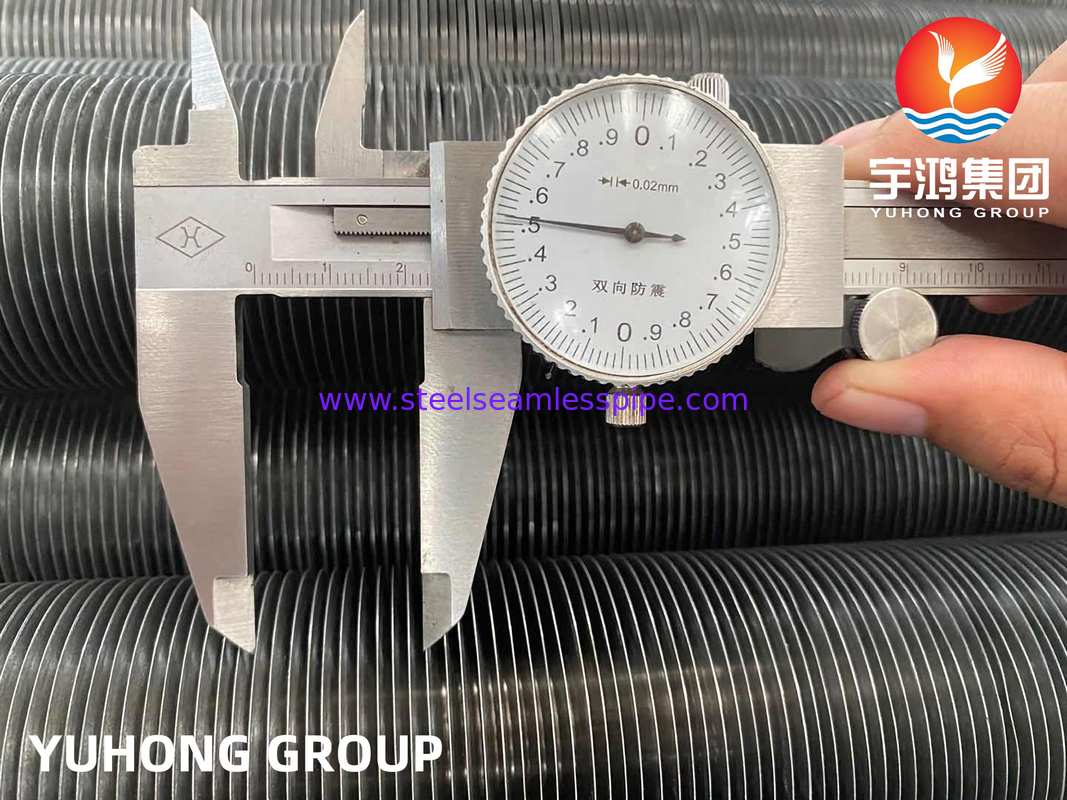

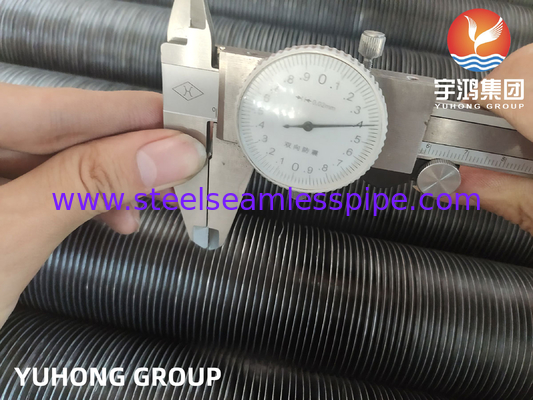

Fin Material:	1060 Aluminium Alloy	Fin Height:	16mm Max.
Fin Thickness:	0.3mm	Packing:	Iron Steel Frame Wooden Case
Bare Length:	110mm/110mm	Unfinned Length:	As Per Client's Request
Application:	Heat Exchanger, Cooler, Fluid Cooling

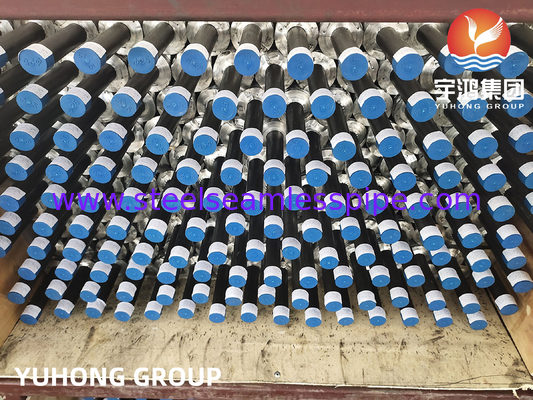

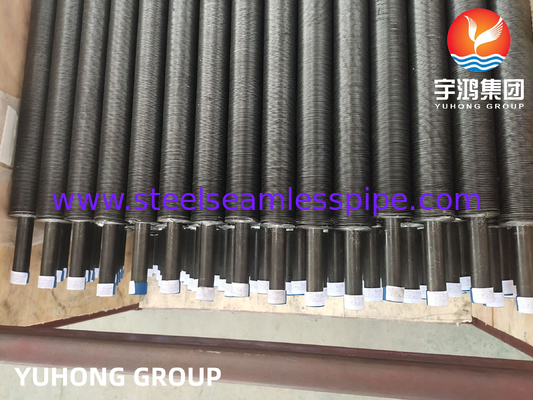

Asme Sa179 Diameter 25.4mm Cs Tube With Embedded Type Fins Finned Tube

Yuhong supply customised finned tubes to meet specific requirements. We are manufacturer, own complete line of finned tubes includes Extruded Fin Tubes, Spiral Welded Fin Tubes, Embedded Fin Tubes (G-Fin Tubes), L Fin Tubes, LL Fin Tubes, KL Fin Tubes (Knurled Fin Tubes), Square Fin Tubes (H Fin Tubes), Rectangular Fin Tubes (Double H-Fin Tubes), Longitudinal Fins High-frequency welded serrated finned tubes and high-frequency welded solid finned tubes.

ASTM A179 TUBES SPECIFICATIONS

Standards	ASTM, ASME and API
Size	1/2” NB to 36” NB
Thickness	3-12mm
Schedules	SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
Craft	Cold rolled and Cold drawn
Type	Seamless / ERW / Welded / Fabricated
Form	Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length	Min 3 Meters, Max18 Meters, or according to customer’s requirement
End	Plain End, Beveled End, Treaded

Chemical Composition (%) Max. :

C	Mn	P≤	S≤	Si≤
0.06-0.18	0.27-0.63	0.035	0.035	0.25

Mechanical properties:

Tensile Strength(Mpa)	Yield Strength(Mpa)	Elongation(%)	Hardness(HRB)
325 Min	180 Min	35 Min	72 max

ASTM A179 Tube Mechanical Properties:

A179 Mechanical properties
Tensile	Yield	Elongation	Hardness
Strength (Mpa)	Strength (Mpa)	(%)	(HRB)
≥325	≥180	≥35	≤72

Features:

Dimensional accuracy.
High strength
Durable
Corrosion resistance
Fine finish

Typical Application:

Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical

Inspection and Tests Performed:

Chemical Composition inspection, Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test

Surface Treatment:

Oil-dip, varnish, Passivation, phosphating, Shot Blasting
