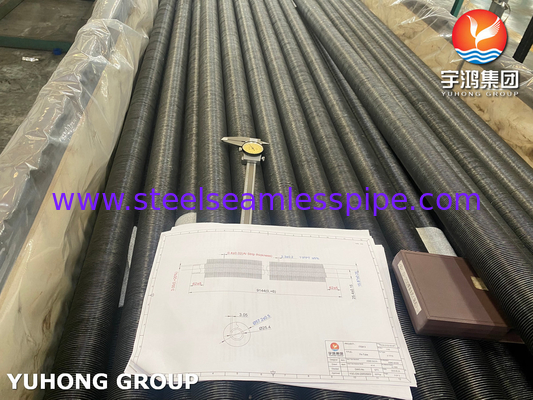

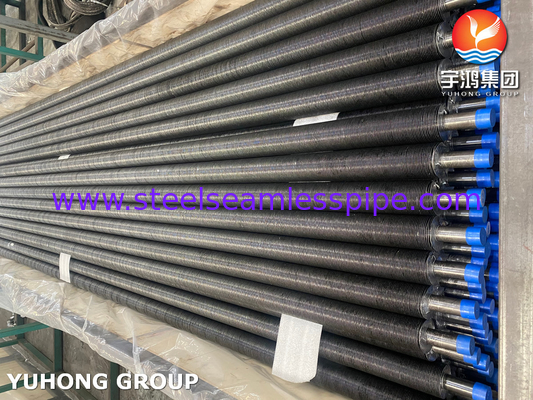

Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins

Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins

  • Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins
  • Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins
  • Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins
  • Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins
Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins
Product Details:
Place of Origin: China
Brand Name: Yuhong boiler tube
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model Number: ASTM A210 Gr A1 Seamless Medium Carbon-Molybdenum Alloy Steel Boiler
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
Delivery Time: 20-80
Payment Terms: L/C, T/T
Supply Ability: 800 Tons/ month
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Standard: ASME SA210, ASTM, ASTM A210-23, ANSI A210-23 Material: Grade A1
Type: G Type Specification: ASTM A210 Gr A1 Seamless Medium Carbon-Molybdenum Alloy Steel Boiler
Tube Thickness: 2mm To 16mm Tube OD: To 219mm
Fin Height: 0.25" (6.35mm) To 1.5"(38mm)
Highlight:

Embedded Aluminum Finned Tube

,

G Type Aluminum Finned Tube

,

Carbon Steel Tube ASME SA210

Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins



ASTM A210 Gr.A1 Carbon Steel Embedded G-Fin Tubes are commonly used in a variety of industrial applications, especially heat exchangers. The embedded G-fins on the tubes increase the surface area of the tubes, which improves the heat transfer efficiency of the tubes. These tubes are commonly used in power plants, chemical plants and other industrial processes where heat transfer is critical.

Standard Specification ASTM A210 / A210M, ASME SA210, A210 A1, SA210 A1
Grade Grade A-1
JIS G 3467 STFA 10
Size Range 1⁄2 in. to 16 in. [12.7 to 406.4mm]
Wall Thickness 1.5mm-50mm
Shape Round
Manufacturing method Hot and cold finished
Length max 25 m, Single / Double random length
Terms Mill test certificates will be issued according to EN10204.3 3.1 or 3.2
A210 GR.A1 tubes Shall be Seamless, and the testing shall be as per A 450 / A450M.
Common uses

Boiler Tubes, Seamless Steel Tubes, Steel Tubes, and Superheater Tubes.

ASTM A210 / A210M Grade A-1 Chemical Compositions



Chemical Components (%)
Grade C Si Mn P S Mo Cr V
A-1 ≤0.27 ≥0.10 ≤0.93 ≤0.035 ≤0.035 / / /

ASTM A210 / A210M Grade A-1 Mechanical Properties



Mechanical Properties
Grade Tensile Yield Elongation Hardness
Strength (Mpa) Strength (Mpa) (%) (HRB)
A-1 ≥415 ≥255 ≥30 ≤79

ASTM A210 / A210M Tube Wall Thickness Tolerance



Seamless, Cold-Finished Tubes
Outside Diameter Wall thickness Tolerance %
In. (mm) Over (+) Under (-)
1 ½ (38.1) and under 20 0
Over 1½ (38.1) 22 0

Application



Apply to Boiler Tubes, Seamless Steel Tubes, Steel Tubes, and Superheater Tubes.

Advantages of ASTM A210 A1 Type G Fin Tubes



- Improved Heat Transfer

- Compact design

- Resistance to Scaling

- Enhanced Strength

- Cost Effective



Asme Sa210 Grade A1 Carbon Steel Finned Tubes With Embedded G Type Aluminum Fins 0
