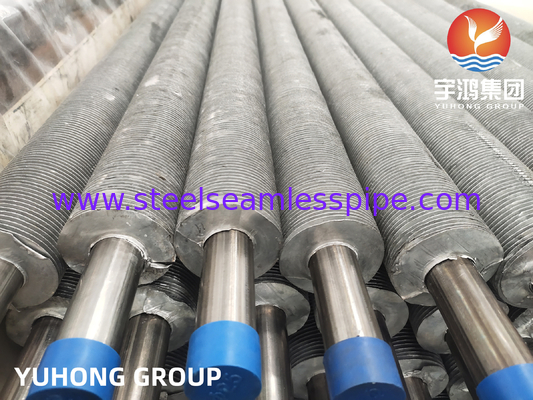

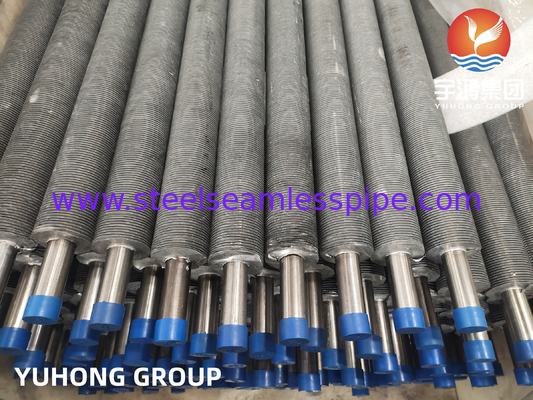

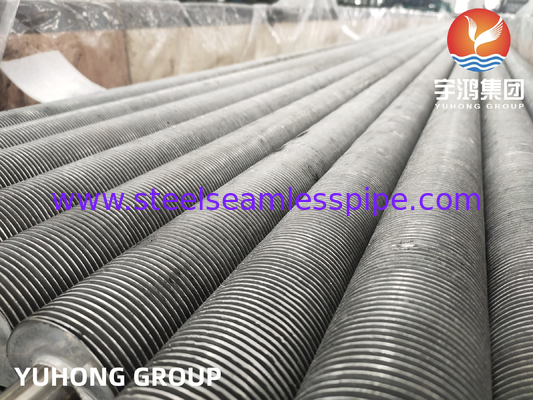

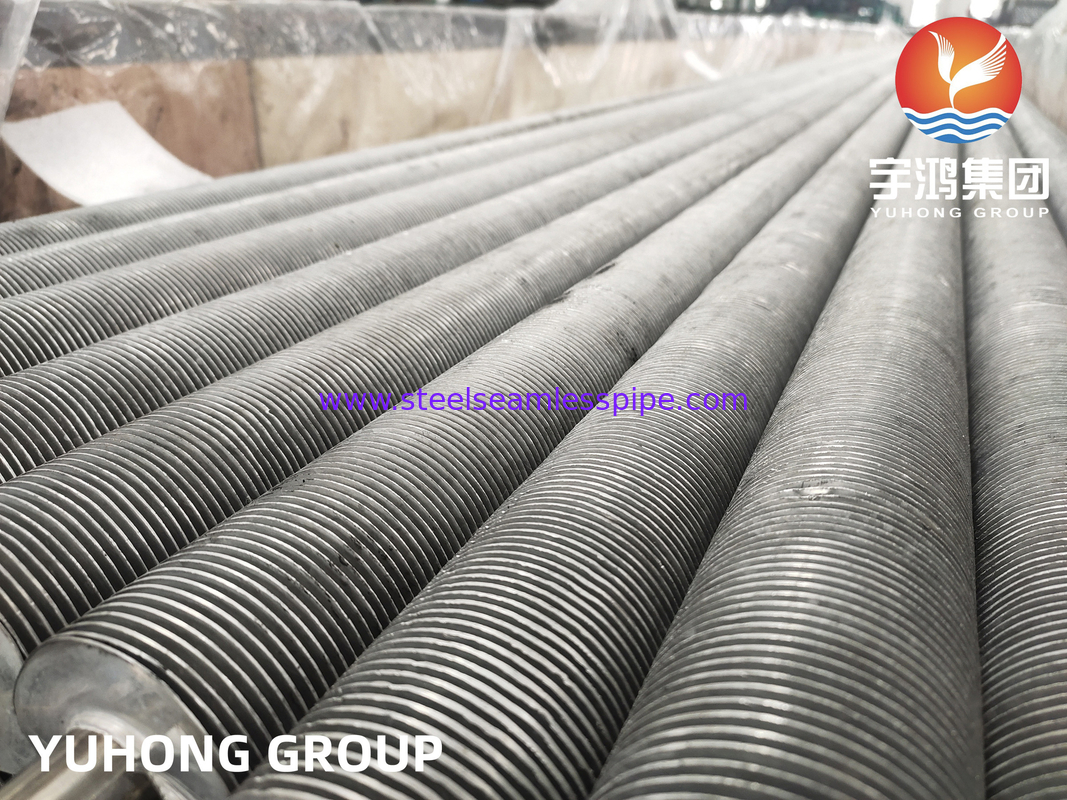

ASME SA249 TP304 AL Extruded T-Type Finned Tubes For Dry Oven Heat Exchange
Yuhong Group, with over a decade of experience in finned tube manufacturing, proudly produces and sells seamless stainless steel, duplex, and nickel tubes. Serving clients in 45 countries with annual sales exceeding 80,000 tons, our tubes are used across mining, power generation, petrochemical, food processing, paper manufacturing, and gas/liquid industries.
Product Overview
Our ASME SA249 TP304 AL extruded finned tubes for heat exchangers offer excellent chemical and mechanical properties, making them ideal for heat transfer processes. They feature high tensile strength, good yield strength, and excellent corrosion resistance, ensuring durability even in demanding operating conditions.
Made from TP304 AL (aluminum) material, these finned tubes are lightweight with high thermal conductivity and corrosion resistance. This makes them perfect for heat exchangers where efficient heat transfer and longevity are critical. Applications include power generation, chemical processing, oil and gas, HVAC systems, air coolers, condensers, evaporators, and other heat exchange equipment.
Key Features
- Extruded fins increase surface area for enhanced heat transfer efficiency
- Tight fin-to-tube contact ensures effective heat transfer and minimizes scaling risk
- Proper installation and sealing required for optimal performance
- Regular inspection and maintenance recommended to detect corrosion or damage
Technical Specifications
Tube Details:
- Tube Diameter: Outer diameter from 20mm to 219mm
- Tube Thickness: 2mm to 16mm
- Tube Material: Stainless steel, alloy steel, carbon steel, weather steel, duplex steel, super duplex steel, Inconel, high chrome, and high nickel
Fin Details:
- Fin Thickness: 0.8mm to 4mm
- Fin Height: Minimum 0.25" (6.35mm) to maximum 1.5" (38mm)
- Fin Density: Minimum 43 fins per meter, maximum 287 fins per meter
- Material: Carbon steel, stainless steel, alloy steel, weather steel, duplex steel, and chrome alloys
Chemical Composition - ASTM A249 TP304
| Material |
C |
Si |
Mn |
P |
S |
| ASTM A249 TP304 |
0.08 |
1 |
2 |
0.045 |
0.03 |
Mechanical Properties - ASTM A179, ASME SA179
| Grade |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation % |
Hardness, HRB |
| 304 |
515 |
205 |
35% |
≤72 |
Quotation Requirements
For quick quotation, please provide:
- Quantity (pieces)
- Base tube: diameter, thickness, length, and material specification
- Fins: material specification, type (solid or serrated), height, thickness, pitch, fin length, and bare section
- Welding preparation details if required
- Expected delivery date
Ordering Information
Payment: TT, LC
Delivery: 15-30 days after payment
Marking: Standard + steel type + size + furnace number + batch number

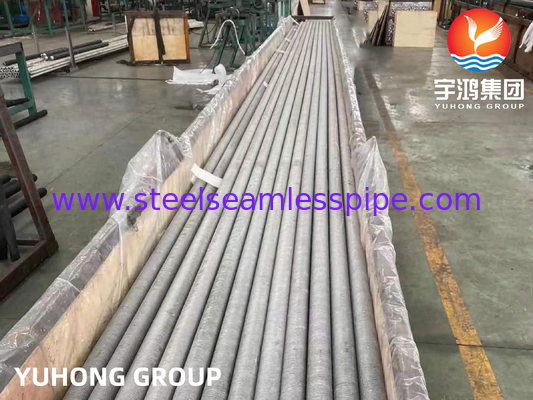

Packaging: Iron frame packaging box with desiccant for mainland transport or as required
Performance Benefits
Our extruded finned tubes undergo controlled deformation that optimizes contact pressure and heat transfer. The leg fins significantly enhance the base tube's corrosion resistance. These high-performance tubes withstand high thermal and mechanical loads with minimal maintenance, offering higher reliability, optimized surface area, reduced fan requirements, lower energy consumption, space savings, simplified installation, and cost efficiency.
