Extruded Finned Carbon Steel Tube for High Heat Transfer Efficiency in 100mm-6000mm Length

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	A179 AL1060

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE
Packaging Details:	Деревянный корпус /Железный корпус/Комплект с пластиковой крышкой
Delivery Time:	20-80 days
Payment Terms:	T/T,L/C
Supply Ability:	1500 Tons Per Month

Contact Now

All Products

Stainless Steel Seamless Pipe (322)

Stainless Steel Seamless Tube (315)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (147)

Fin Tube (686)

Heat Exchanger (22)

Heat Exchanger Tube (453)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (125)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (207)

Titanium Tube (17)

Bright Annealed Tube (167)

Boiler Tube (151)

Steel Fitting (838)

Steel Flange (631)

Others (404)

Cladding Parts (8)

Detailed Product Description

Type:	Fin трубка, трубка теплообменника	Application:	Теплообменники, конденсаторы, испарители
Tube Material:	Углеродистая сталь, нержавеющая сталь, медь и т.д., легированная сталь	Fin Material:	Алюминий, углеродистая сталь, нержавеющая сталь
Fin Height:	0mm-16mm，Up To 40 Mm	Color:	Серебряная спираль Finned Tube, BLACK, цвет металла
Connection Type:	Сварные, резьбовые, фланцевые	Fin Height:	2mm-25mm
Fin Pitch:	2mm-25mm	Fin Thickness:	0.1mm-1.5mm
Fin Type:	Жалюзи, обычные, зазубренные, волнистые	Material:	Медь, алюминий, нержавеющая сталь
Shape:	Круглые, квадратные, прямоугольные	Surface Treatment:	Полировка, анодирование, гальванизация
Tube Diameter:	6mm-76mm	Tube Length:	100mm-6000mm
Tube Material:	Углеродистая сталь, нержавеющая сталь, медь	Tube Wall Thickness:	0.3mm-3.0mm
Highlight:	6000mm Finned Carbon Steel Tube , Heat Transfer Finned Carbon Steel Tube , 100mm Finned Carbon Steel Tube

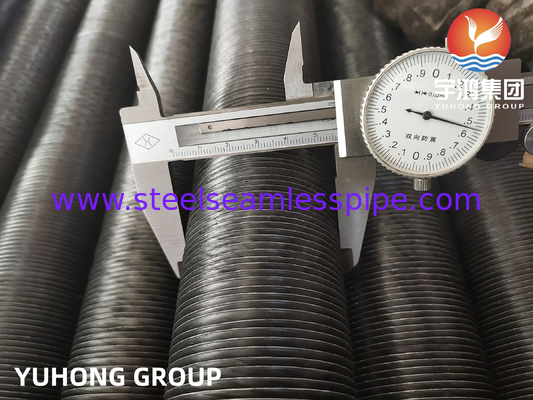

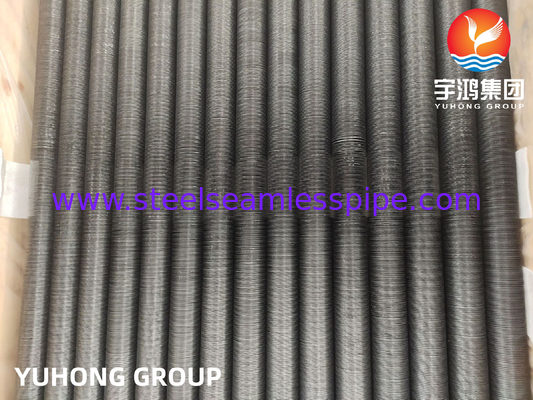

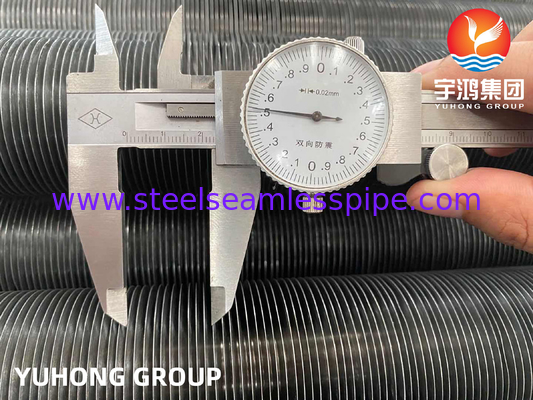

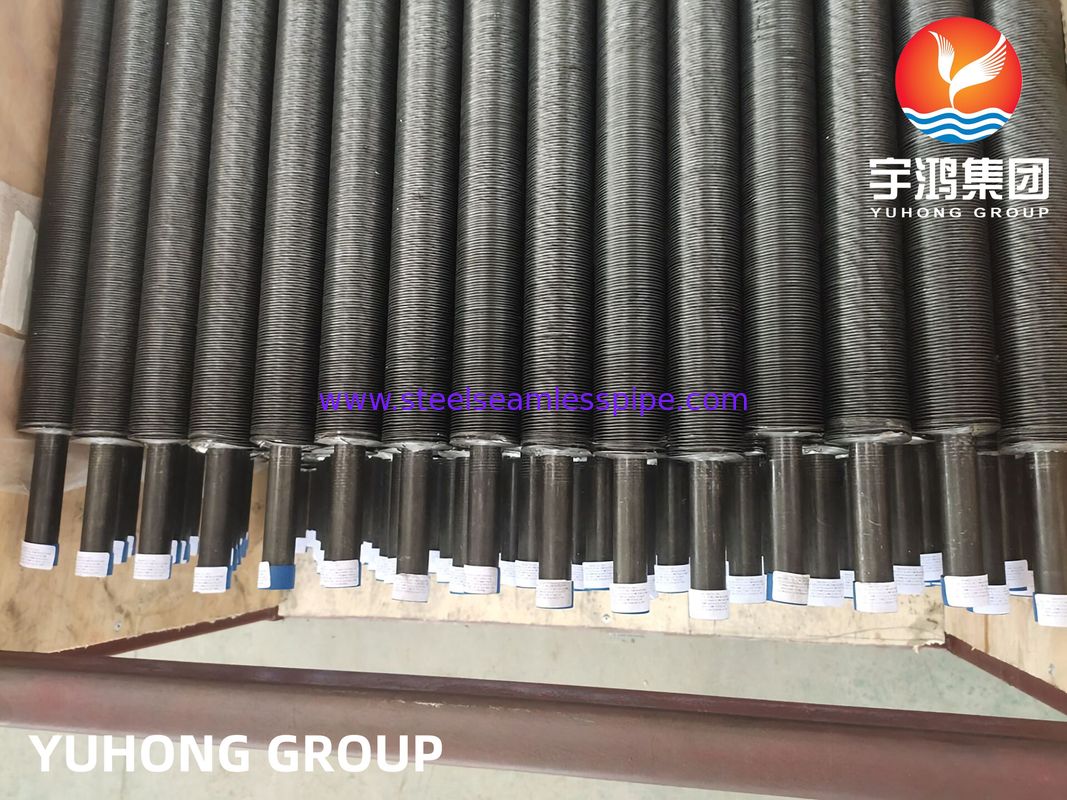

Extruded Finned Carbon Steel Tube For Heat Transfer

Available in lengths from 100mm to 6000mm for various heat exchanger applications.

Product Overview

ASTM A179 AL fin extruded finned tubes with L-type configuration for heat exchangers. These finned tubes enhance heat transfer efficiency by increasing the external surface area of seamless heat exchange tubes.

Technical Specifications

Chemical Requirements

Grade	C	Mn	Si	P	S
A179	0.06-0.18	0.27-0.63	-	0.035 max	0.035 max

Mechanical Properties

Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	HRB
180	325	35	/

Fin Details

Fin Thickness: Minimum 0.8mm to maximum 4mm
Fin Height: Minimum 0.25" (6.35mm) to maximum 1.5" (38mm)
Fin Density: Minimum 43 fins per meter, maximum 287 fins per meter
Materials: Carbon steel, stainless steel, alloy steel, weathering steel, duplex steel, and Incoloy

Key Advantages

High Thermal Conductivity: Large contact area between fins and tube surface ensures rapid heat transfer
High Mechanical Strength: Extrusion process creates strong bond between fins and tube surface
Easy Cleaning: Large gaps between fins prevent clogging and contamination
Corrosion Resistant: Excellent surface finish and corrosion resistance properties

Applications

Air conditioning and refrigeration systems, automotive engine cooling systems, chemical and petrochemical equipment, boilers, and power generation equipment.

Request a Quick Quote

Please provide the following information:

Quantity of pieces
Base tube specifications: diameter, thickness, length, and material specification
Fin specifications: material, type (solid or serrated), height, thickness, pitch, fin length, and bare section
Weld preparation details if required
Expected delivery date
