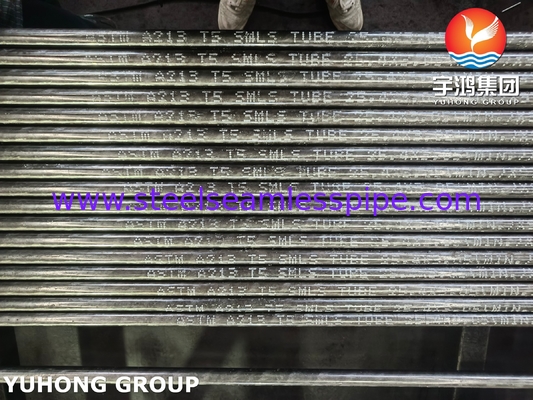

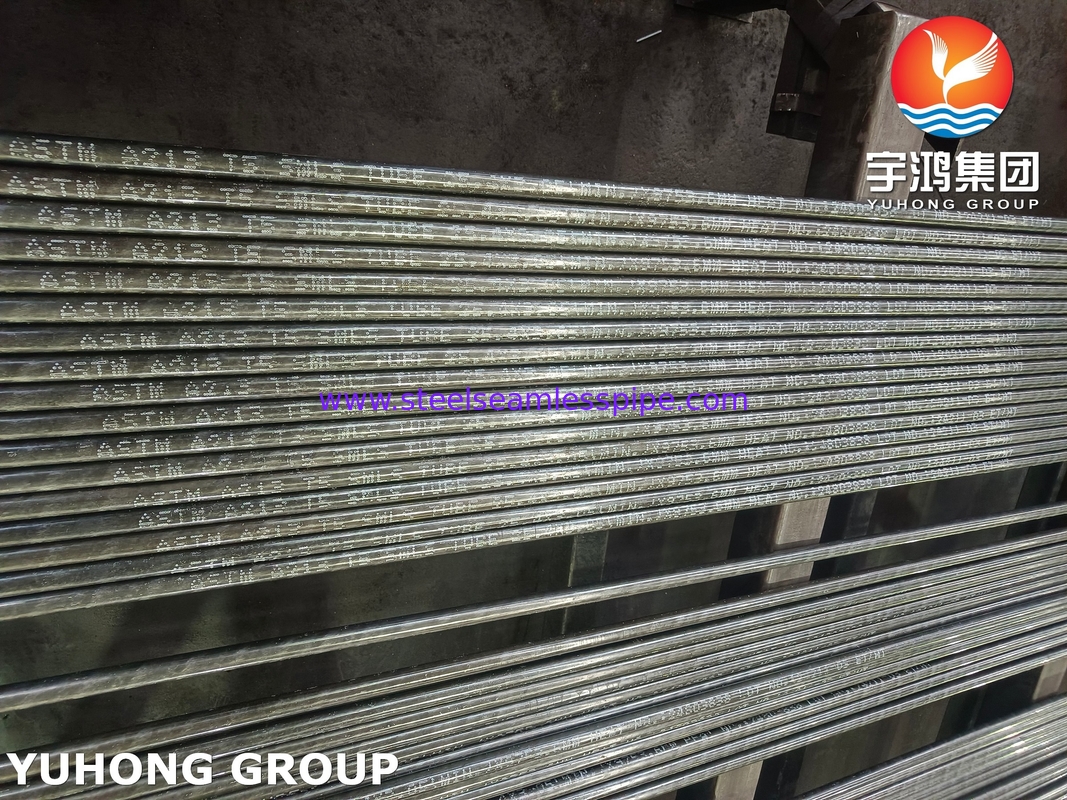

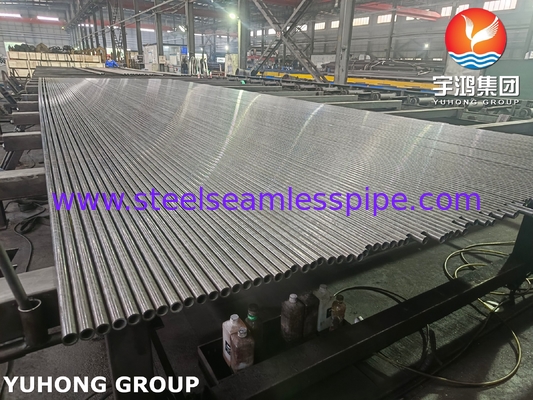

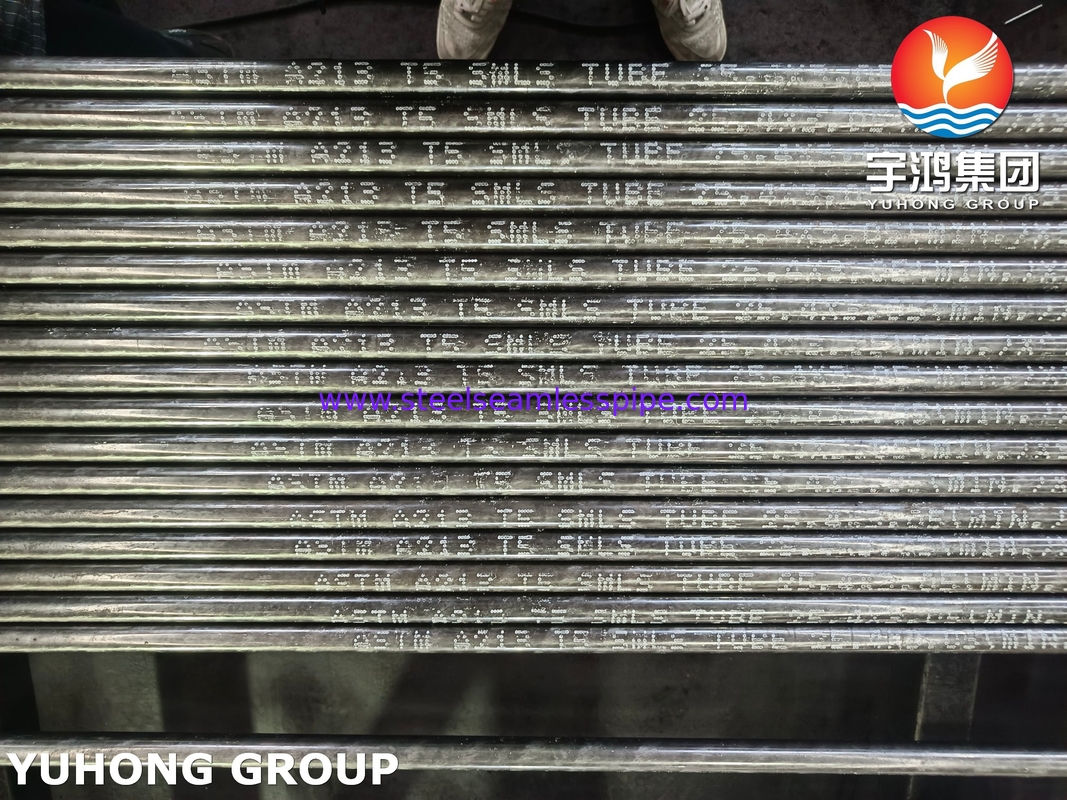

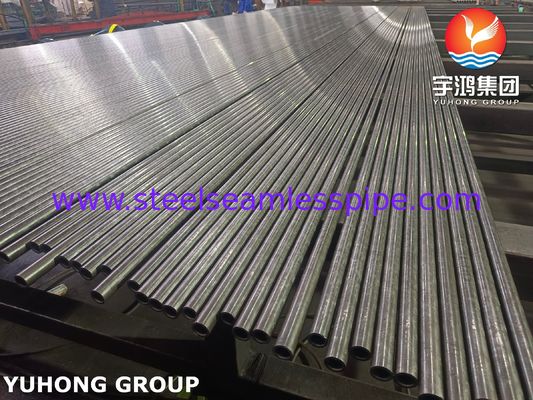

ASTM A213 / ASME SA213 T5 Alloy Steel Tubes for Boiler Heat Exchanger Application

ASTM A213 / ASME SA213 T5 Alloy Steel Tubes for Boiler, Heat Exchanger Application

The manufacturing process of ASTM A213 T5 alloy steel tube mainly includes steps such as raw material preparation, hot rolling (or cold drawing), heat treatment, inspection, and surface treatment. The standard for its manufacturing execution is ASTM A213/A213M "Specification for Seamless Iron and Austenitic Alloy Steel Tubes for Boilers, Superheaters, and Heat Exchangers", and the product also needs to comply with the requirements of TSG D7002 Pressure Pipeline Component Type Test Rules.

ASTM A213/ASME SA213 T5 Alloy Steel Tube Chemical Composition

ASTM A213 T5 Alloy Steel Key Performance Advantages

• High temperature strength: ASTM A213 T5 alloy steel has stable creep resistance below 540 ° C and can maintain stability in high temperature environments.
• Oxidation resistance: The chromium element contained in ASTM A213 T5 alloy steel forms a dense oxide film, which resists high-temperature oxidation and corrosion.
• Weldability: ASTM A213 T5 alloy steel should be preheated to 150 ° C~200 ° C during welding, and stress relief heat treatment is recommended after welding.
• Economy: Compared to high alloy steels such as T91/T92, ASTM A213 T5 alloy steel has a lower cost and is suitable for medium high temperature environments.

ASTM A213 / ASME SA213 T5 Alloy Steel Tube Application

• Petrochemical industry: ASTM A213 T5 alloy steel tubes are widely used in the petrochemical industry to transport high-temperature, high-pressure, corrosive media such as oil and gas, steam, chemicals, etc. Its excellent corrosion resistance and high temperature performance enable it to maintain stable performance in harsh working environments.
• Electricity: In the power industry, ASTM A213 T5 alloy steel tubes can be used for high-temperature and high-pressure steam and flue gas pipelines in thermal power plants, nuclear power plants, and other facilities. These pipelines need to withstand extremely high temperatures and pressures, and ASTM A213 T5 alloy pipes, with their excellent high-temperature and high-pressure resistance, can meet these stringent requirements.
• Shipbuilding: In the field of shipbuilding, ASTM A213 T5 alloy steel tubes are also widely used. Ships need to face various complex environmental conditions during navigation, including seawater corrosion, high temperature and pressure, etc. The corrosion resistance and high temperature performance of ASTM A213 T5 alloy steel tubes make them an ideal choice for shipbuilding.
• Metallurgical Machinery: In the fields of metallurgy and machinery, ASTM A213 T5 alloy steel tubes also play an important role. The working environment in these fields often requires extremely high performance of steel pipes, and ASTM A213 T5 alloy steel tubes, with their excellent mechanical properties and corrosion resistance, can meet these requirements and ensure the safe and stable operation of the project.
