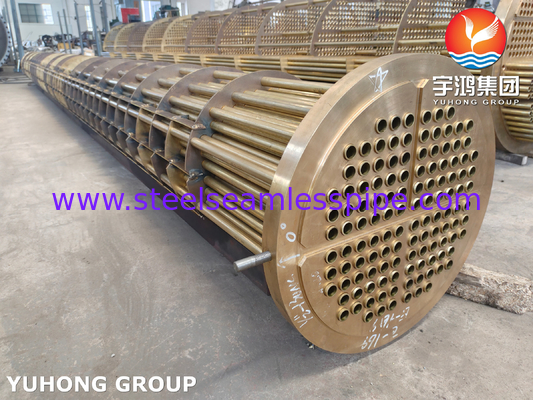

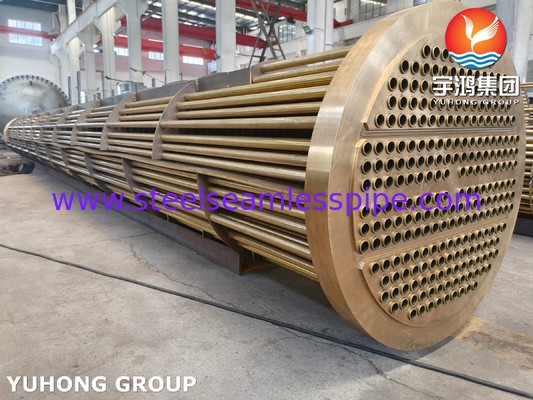

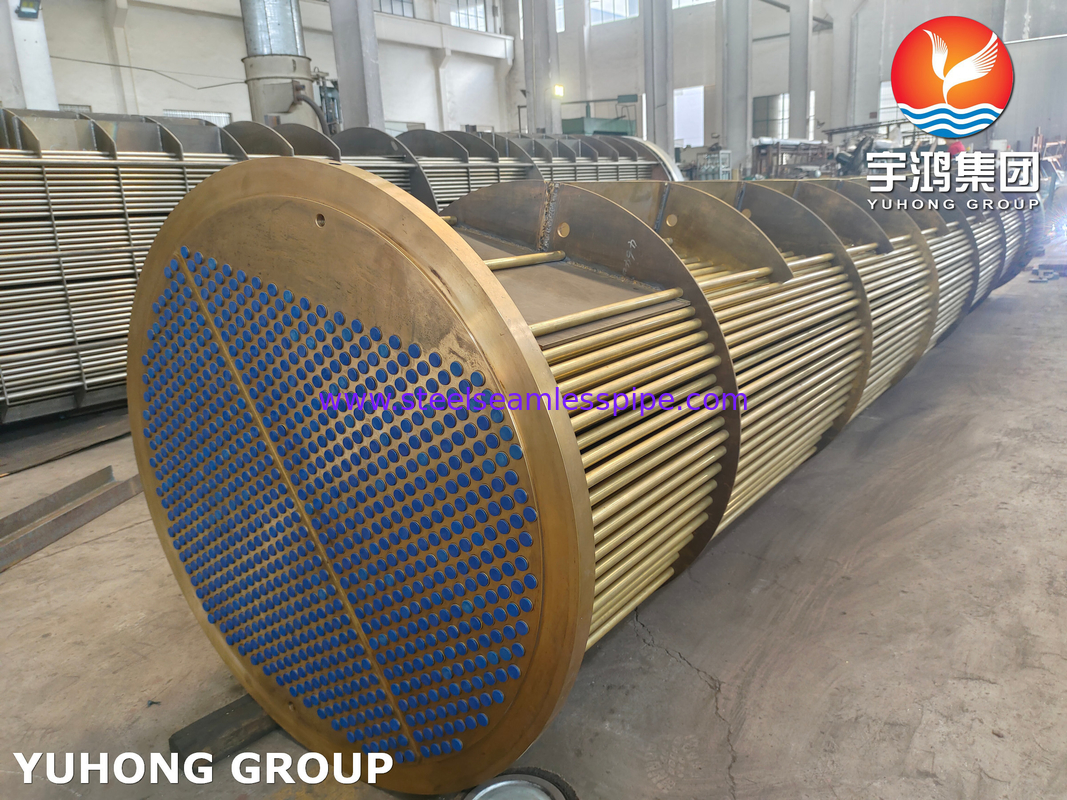

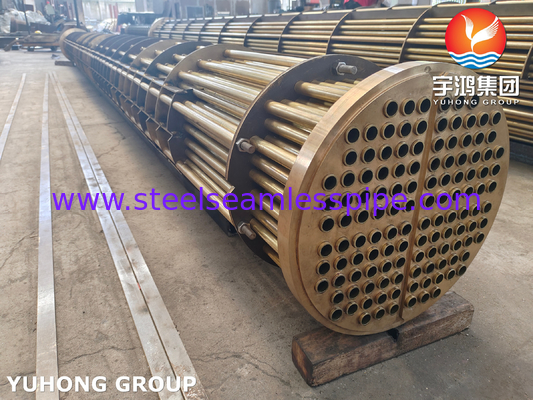

SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175

SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175

  • SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175
  • SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175
  • SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175
  • SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175
SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ASME U Stamp
Model Number: TUBE BUNDLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 0-1000000USD
Packaging Details: Wooden export crates
Delivery Time: 30-60DAYS
Payment Terms: T/T, L/C, D/A
Supply Ability: 15 SETS/MONTH
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Tube: SB111C70600 O61 Spacers: SA179
Tie Rod: SA36 Baffle: C46500(NAVAL BRASS)
Support Baffle: C46500(NAVAL BRASS) Impingement Plate: SA283 GR.C
Eye Bolt: CS
Highlight:

SB111 Copper Alloy Seamless Tube Bundle

,

C70600 Copper Alloy Seamless Tube Bundle

,

NACE MR0175 Heat Exchanger Tube Bundle

SB111 C70600 Copper Alloy Seamless Tube Bundle for Heat Exchanger NACE MR0175



SB111 C70600 Copper Alloy Seamless Tube Bundle



C70600 is a 90/10 Copper-Nickel alloy (CuNi 90/10), containing 90% copper and 10% nickel. It is highly resistant to corrosion, especially in seawater and brackish water environments, making it an excellent choice for heat exchanger tubes.

Property Details
Material C70600 (90% Copper, 10% Nickel)
Key Features High corrosion resistance, excellent thermal conductivity, good weldability
Applications Heat exchangers, condensers, marine environments, desalination plants
Standards ASTM B111
Advantages Resistance to stress-corrosion cracking and erosion-corrosion

SB111 C70600 Copper Alloy Seamless Tube Bundle Part list



-SA283 GRADE C JACK SCREW LUG

-SA283 GRADE C DOWEL PIN LUG

-SA283 GRADE C SEALING STRIP

-SA283 GRADE C SLIDING PLATE

-SA179 DUMMY TUBE

--SA283 GRADE C END PLATE

Component Function Material Properties
Jack Screw Lug Alignment and securing of the heat exchanger Moderate strength, good machinability
Dowel Pin Lug Ensures precise alignment of components Durable under moderate stress
Sealing Strip Prevents fluid or gas leakage Flexible, resistant to deformation
Sliding Plate Allows thermal expansion during operation Resistant to repetitive stress
End Plate Encloses and secures the tube bundle Structurally strong under pressure

SB111 C70600 Copper Alloy Seamless Tube Bundle Specific Requirements and Treatment



- KILLED CS, NORMALIZED, NACE MR0175/0103, HIC&SSC RESISTANT

Requirement Details Purpose
Killed Carbon Steel Deoxidized steel (e.g., with silicon or aluminum) Reduces voids, improves toughness and ductility
Normalized Heat Treatment Heating above critical temperature and air cooling Refines grain structure, improves mechanical properties
NACE MR0175 Compliance Material resistant to H2S environments Prevents hydrogen-induced cracking (HIC) and sulfide stress cracking (SSC)
HIC Resistance Material resistant to internal cracks caused by hydrogen diffusion Ensures structural integrity in sour environments
SSC Resistance Resistance to cracking under tensile stress and H2S exposure Prevents premature failure in pressure vessels



Common Copper and Copper-Alloy Grades for Heat Exchanger Tubes



Grade Standard Composition Properties Applications
C70600 (90/10 CuNi) ASTM B111 Cu 90%, Ni 10% - Excellent seawater corrosion resistance.<br>- High thermal conductivity.<br>- Good strength. Marine heat exchangers, desalination plants, offshore oil & gas systems.
C71500 (70/30 CuNi) ASTM B111 Cu 70%, Ni 30% - Superior corrosion resistance compared to 90/10 CuNi.<br>- Higher mechanical strength. High-pressure marine heat exchangers, chemical processing industry.
C44300 (Admiralty Brass) ASTM B111 Cu 70%, Zn 29%, Sn 1% - Excellent corrosion resistance in non-aggressive waters.<br>- Good resistance to dezincification. Power plant condensers, HVAC systems, low-corrosion water environments.
C68700 (Aluminum Brass) ASTM B111 Cu 76%, Zn 22%, Al 2% - Better corrosion resistance than standard brasses.<br>- Suitable for high-velocity seawater. Ship condensers, oil refineries, desalination plants.
C12200 (DHP Copper) ASTM B111 Cu ≥ 99.9%, P ≤ 0.04% - High thermal conductivity.<br>- Excellent soldering and brazing properties. Domestic and industrial heat exchangers, refrigeration, and air-conditioning systems.
C11000 (Electrolytic Tough Pitch Copper) ASTM B68/B75 Cu ≥ 99.9% - Very high thermal conductivity.<br>- Good electrical conductivity.<br>- Less corrosion resistance. Electrical heat exchangers, low-corrosion environments.
C28000 (Muntz Metal) ASTM B111 Cu 60%, Zn 40% - High corrosion resistance.<br>- Good mechanical strength. Industrial heat exchangers, condensers, and piping systems.



SB111 C70600 Copper Alloy Seamless Tube Bundle For Heat Exchanger NACE MR0175 0
