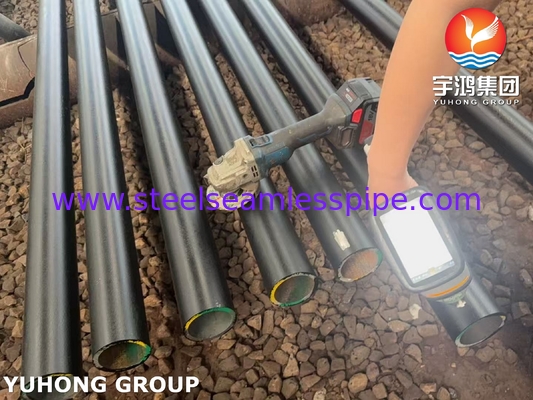

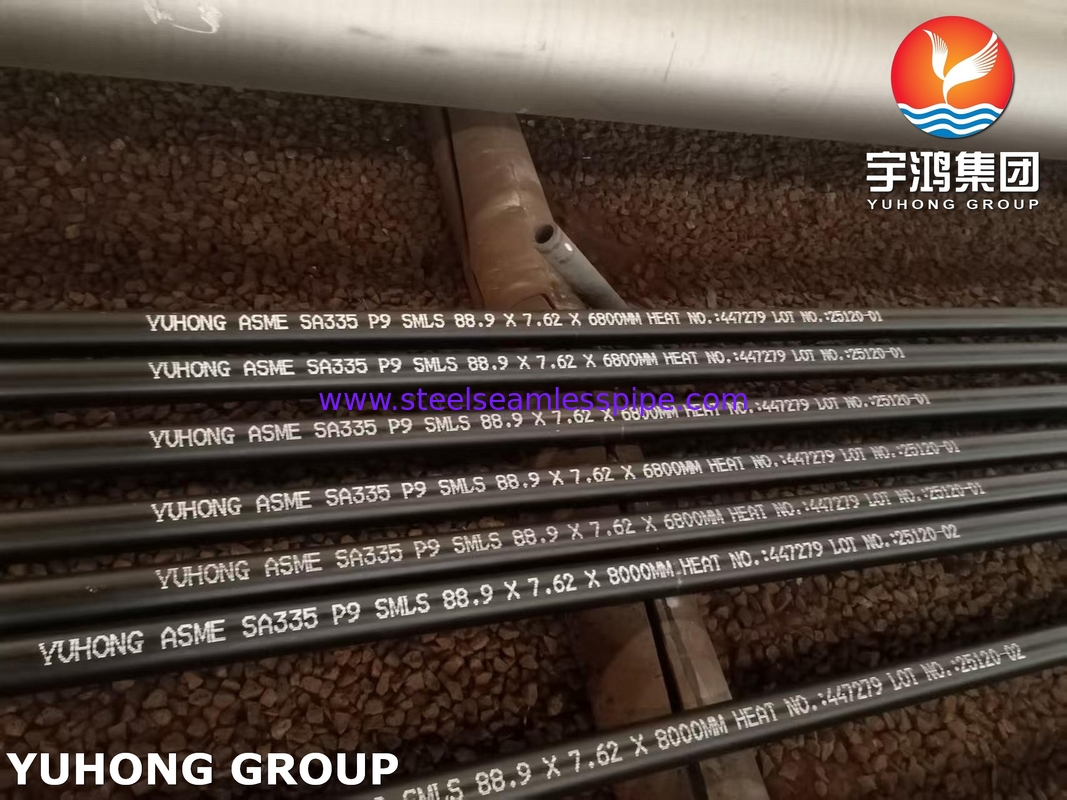

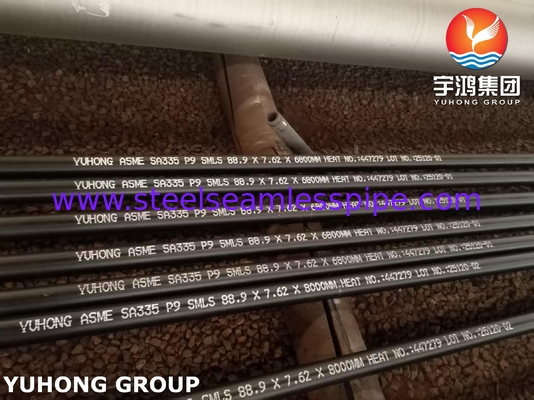

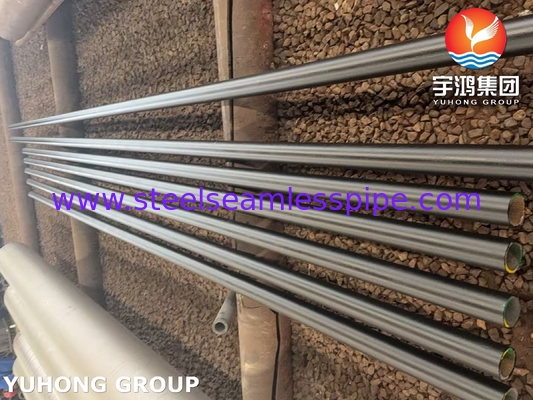

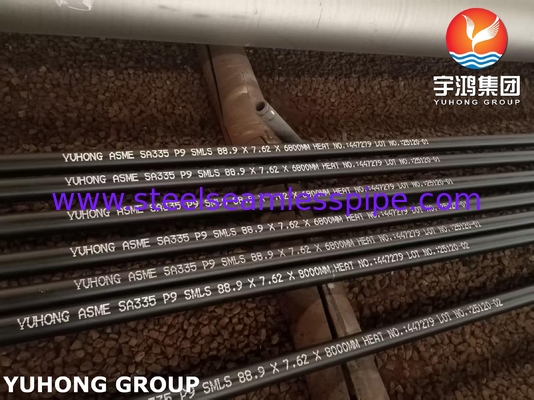

ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM

ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM

  • ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM
  • ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM
  • ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM
  • ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM
ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A335 P9
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 5-80 Days
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 1500 tons / Month
Contact Now
All Products
Stainless Steel Seamless Pipe (286)
Stainless Steel Seamless Tube (275)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (102)
Fin Tube (619)
Heat Exchanger (16)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (78)
Copper Alloy Tube (222)
Alloy Steel Tube (182)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (141)
Steel Fitting (797)
Steel Flange (583)
Others (388)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM A335 Material: P9
Type: Seamless Technique: Hot Rolled
Surface: Black Painting Application: Boiler/Heat Exchanger/Oil&Gas
Highlight:

ASTM A335 Alloy Steel Pipe

,

88.9MM Alloy Steel Pipe

,

P9 Alloy Steel Pipe

 ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM





ASTM A335 P9 is a standard specification for seamless ferritic alloy steel pipe for high temperature applications. The pipe is commonly used in power plants, refineries, and other industrial applications under high temperature and pressure conditions.



ASTM A335 P9 seamless pipe is made of a combination of chromium and molybdenum, which provides excellent corrosion resistance and high temperature strength. It is available in a variety of sizes and specifications to meet different application needs.



Its high temperature resistance: It can withstand temperatures up to 600°C, making it ideal for high temperature applications.



The alloy composition of the pipe provides excellent corrosion resistance, ensuring long-lasting durability in harsh environments.









ASTM A335 Gr P9 Composition

C, % Mn, % P, % S, % Si, % Cr, % Mo, %
0.015 max 0.30-0.60 0.025 max 0.025 max 0.50 max 4.00-6.00 0.45-0.65





ASTM A335 P9 Properties

Tensile Strength, MPa Yield Strength, MPa Elongation, %
415 min 205 min 30 min





Heat Treatment Requirements

  P5, P9, P11, and P22
Grade Heat Treatment Type Normalizing Temperature Range F [C] Subcritical Annealing
or Tempering
Temperature Range F
[C]
ASTM A335 P5 Pipe(b,c) Full or Isothermal Anneal
  Normalize and Temper ***** 1250 [675]
  Subcritical Anneal (P5c only) ***** 1325 - 1375 [715 - 745]
ASTM A335 P9 Pipe Full or Isothermal Anneal
  Normalize and Temper ***** 1250 [675]
ASTM A335 P11 Pipe Full or Isothermal Anneal
  Normalize and Temper ***** 1200 [650]
ASTM A335 P22 Pipe Full or Isothermal Anneal
  Normalize and Temper ***** 1250 [675]
ASTM A335 P91 Pipe Normalize and Temper 1900-1975 [1040 - 1080] 1350-1470 [730 - 800]
  Quench and Temper 1900-1975 [1040 - 1080] 1350-1470 [730 - 800]





Tensile Requirements

  Seamless
  Alloy Steel ASTM A335/SA335 P-5 Pipe Alloy Steel ASTM A335/SA335 P-9 Pipe Alloy Steel ASTM A335/SA335 P-11 Pipe Alloy Steel ASTM A335/SA335 P-22 Pipe Alloy Steel ASTM A335/SA335 P-91 Pipe
Tensile Strength, min., psi
ksi 60 60 60 60 85
MPa 415 415 415 415 585
Yield Strength, min., psi
ksi 30 30 30 30 60
MPa 205 205 205 205 415







ASTM A335 Gr P9 Equivalent Material





ASTM ASME JIS G 3458 UNS BS DIN ISO ABS NK LRS
A335 P9 SA335 P9 STPA 26 S50400 3604 P1 629-470   2604 II TS38









ASTM International BSi - British Standards institute Material
ASTM A335 Gr. P5 Pipe 3604/625 5% Cr 1/2% Mo
ASTM A335 Gr. P9 Pipe 3604/629 9% Cr 1% Mo
ASTM A335 Gr. P11 Pipe 3604/621 1 1/4% Cr 1/2% Mo
ASTM A335 Gr. P12 Pipe 3604/620 1% Cr 1/2% Mo
ASTM A335 Gr. P22 Pipe 3604/622 2 1/4% Cr 1% No











 Application



  • Off-Shore Oil Drilling Companies
  • Condensers
  • Heat exchangers
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Pulp and Paper Industry








ASTM A335 P9 Ferritic Alloy Steel Pipe For High Temperature 88.9MM X 7.62MM 0
