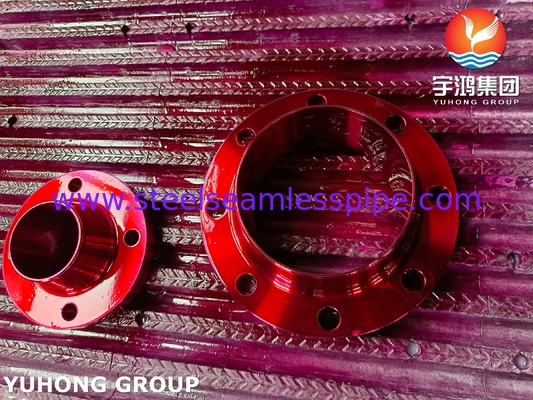

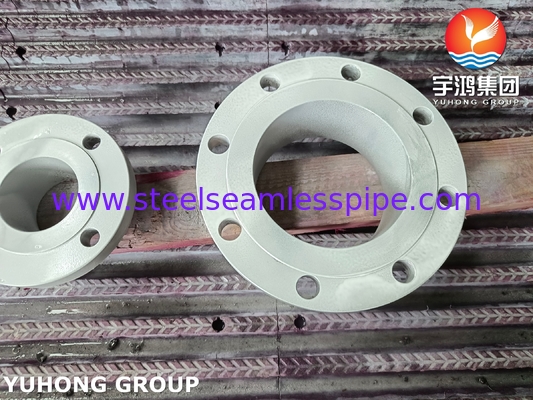

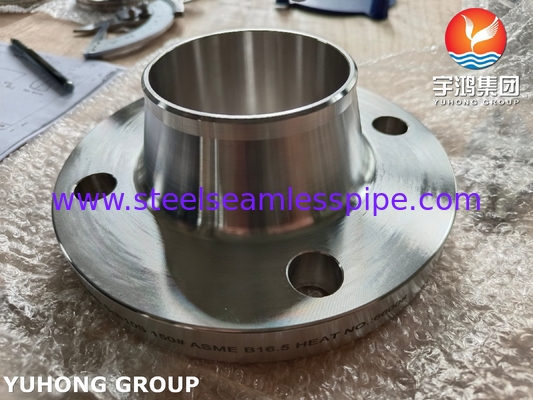

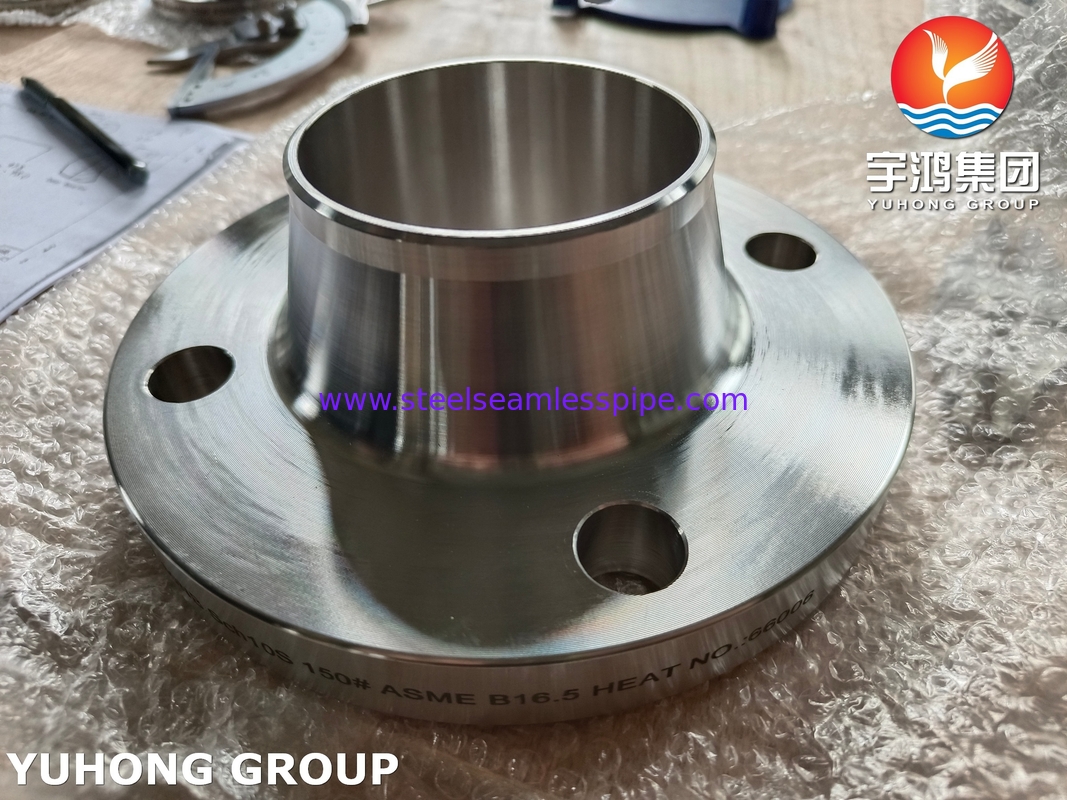

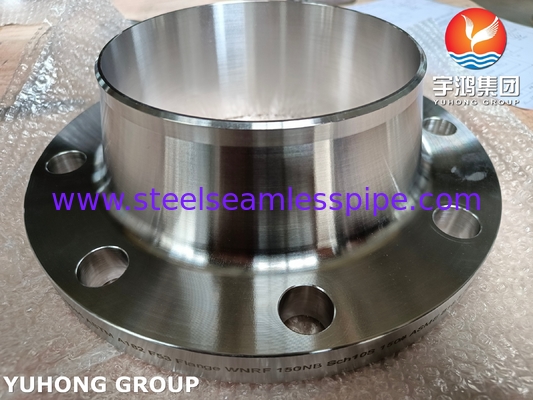

ASTM A182 / ASME SA182 F53 Duplex Stainless Steel Flange B16.5

ASTM A182 / ASME SA182 F53 Duplex Stainless Steel Flange B16.5

ASTM A182 specification covers forged low alloy and stainless steel piping fittings used in pressure systems, including flanges, fittings, valves, and similar parts that conform to specified dimensions or size standards. And it covers various grades of low-alloy steels as well as ferritic, martensitic, austenitic, and ferritic austenitic stainless steels.

The tensile strength of ASTM A182 F53 duplex steel flange is usually high and can meet the requirements for use in high-pressure environments. Its tensile strength is generally greater than or equal to 800 MPa, which means that the flange can withstand large external forces without breaking when subjected to tensile force, ensuring the stability and safety of the equipment; The yield strength is the maximum stress that a flange material can withstand before undergoing plastic deformation. The yield strength of ASTM A182 F53 duplex steel flange is usually greater than or equal to 550MPa, and a higher yield strength allows the flange to have higher resistance to pressure or heavy loads.

ASTM A182 Duplex Stainless Steel Flange Heat Treatment

ASTM A182 F53 Duplex Stainless Steel Flange Advantages

• High strength allows for lightweight design
• Extremely long service life in chloride-containing environments, reducing maintenance and replacement costs
• Resistant to stress corrosion cracking, providing excellent safety and reliability
• Excellent toughness

ASTM A182 Duplex Stainless Steel Chemical Composition

ASTM A182 F53 Comparison with similar duplex stainless steels

• VS F51 (UNS S31803, standard duplex steel 2205): F53 is the most commonly used duplex stainless steel, with lower corrosion resistance and strength than F53, making it more suitable for applications with moderate requirements but strict cost control.
• VS F55 (UNS S32760, Zeron 100): F55 adds copper and tungsten on the basis of F53, with corrosion resistance (PREN>40) and strength comparable or slightly higher than F53, especially better resistance to sulfuric acid corrosion, and higher cost.
• VS F53 (UNS S32750, 2507): F53 is a representative of super duplex stainless steel, achieving the best balance in corrosion resistance (especially chloride pitting resistance) and strength, and is currently one of the most widely used super duplex stainless steel grades.

ASTM A182 F53 Duplex Stainless Steel Flange Main Application Areas

• Marine and Offshore Engineering
• Oil and gas (upstream&downstream)
• Chemical and Petrochemical Industry
• Pulp and paper industry
• Flue gas desulfurization (FGD)
• Key connection points with high pressure/strength
