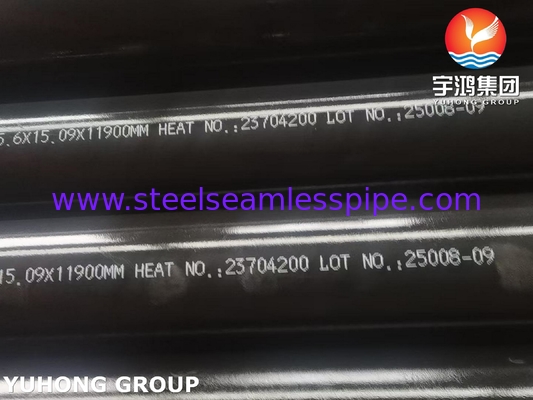

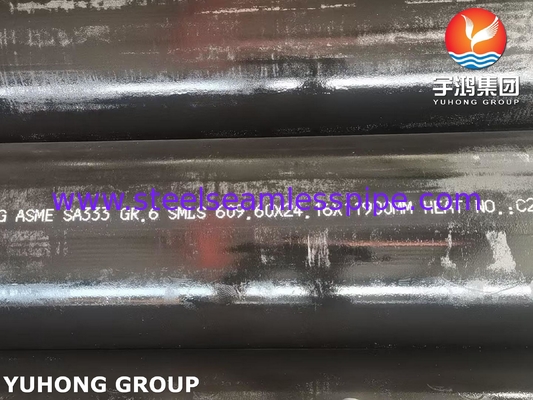

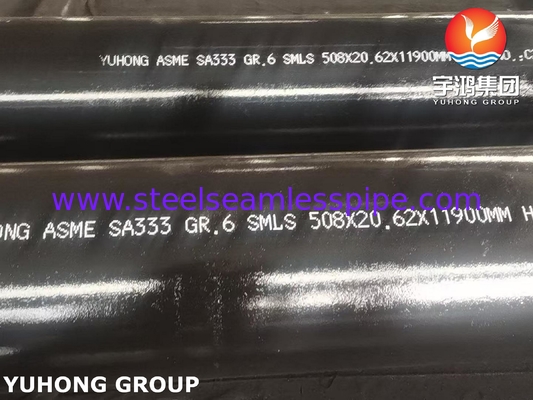

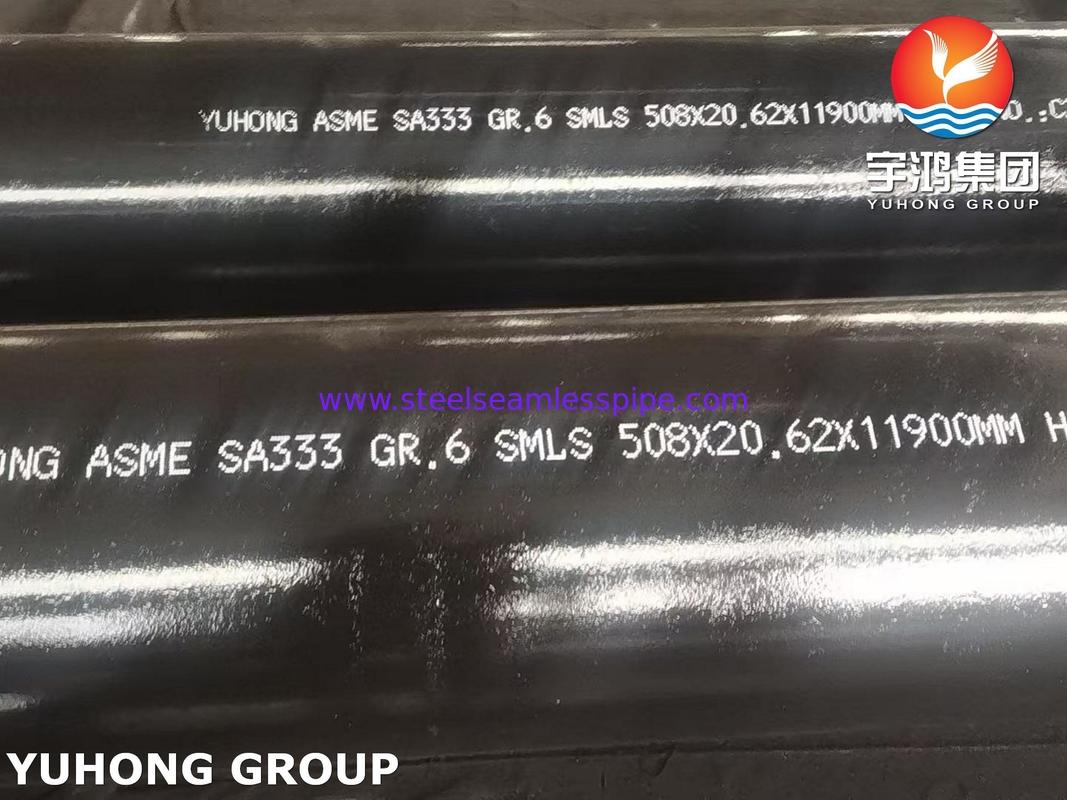

ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature

ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature

  • ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature
  • ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature
  • ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature
  • ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature
ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SA333 Grade 6
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: Negotiable
Packaging Details: Plywooden Case /Iron Case
Delivery Time: 15-30days
Payment Terms: L/C,T/T
Supply Ability: 1500 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Standard: ASME SA333 Material​: Carbon Steel
Grade​: Grade 6 Type: Seamless, Welded
Application: Low Temperature Service Size Range​: Customize
Highlight:

ASME SA333 Grade 6 carbon steel pipe

,

seamless carbon steel pipe for low temperature

,

carbon steel pipe with notch toughness

ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature Service with Required Notch Toughness
Product Specifications
Attribute Value
Standard ASME SA333
Material Carbon Steel
Grade Grade 6
Type Seamless, Welded
Application Low Temperature Service
Size Range Customize
YUHONG GROUP specializes in manufacturing ASME-certified carbon steel pipes for critical low-temperature applications. With 30+ years of expertise, our ASME SA333 Grade 6 Seamless Carbon Steel Pipes deliver reliable performance in cryogenic environments down to -45°C.

Chemical Composition Requirements for ASME SA333 Grade 6 Carbon Steel Pipe
Element Requirement (%) Key Notes
Carbon (C) ≤0.30 Lower carbon improves weldability
Manganese (Mn) 0.29-1.06 Adjusted per heat treatment
Phosphorus (P) ≤0.025 Strict control for low-temp toughness
Sulfur (S) ≤0.025 Minimized for ductility
Silicon (Si) ≥0.10 Deoxidizer for quality control
Nickel (Ni) ≤0.40 Controlled for cost efficiency
Chromium (Cr) ≤0.30 Limited for cryogenic stability
Copper (Cu) ≤0.40 Prevents hot shortness
Vanadium (V) ≤0.08 Grain refinement additive
Molybdenum (Mo) ≤0.12 Trace amounts permitted

ASME SA333 Grade 6 Mechanical Properties
Property Requirement
Tensile Strength (min) 415 MPa (60,000 psi)
Yield Strength (min) 240 MPa (35,000 psi)
Elongation (min) Longitudinal: 30%
Transverse: 16.5%

Quality Assurance
  • 100% Non-Destructive Testing: UT/RT per ASME Section V
  • Traceability: EN 10204 3.1 certificates with heat number tracking
  • Dimensional Precision:
    • OD: ±1% or ±0.5mm
    • WT: +20%/-12.5%

ASME SA333 Gr.6 Seamless Carbon Steel Pipe - Application Highlights
LNG/LNG Storage & Transportation
  • Reliable performance at -45°C for:
    • LNG storage tanks
    • Cryogenic transfer pipelines
    • Regasification terminal piping
Petrochemical Processing
  • Ideal for:
    • Ethylene/LPG cryogenic piping
    • Liquid nitrogen/oxygen delivery systems
    • Refinery cold box exchangers
Power Generation
  • Critical uses in:
    • Nuclear plant auxiliary cooling lines
    • Thermal power plant condenser systems

ASME SA333 Gr.6 Seamless Carbon Steel Pipe - Key Application Advantages
1. Guaranteed Low-Temperature Performance
  • Certified Charpy V-notch impact ≥20J at -45°C
  • Optimized Mn content (0.29-1.06%) ensures ductility in cryogenic service
  • Ultra-low P/S (≤0.025%) prevents brittle fracture
2. Industry-Specific Reliability
  • LNG Systems: Complies with EN 14620 for storage/transfer
  • Petrochemical Plants: Resists thermal cycling in ethylene units
  • Power Generation: Meets ASME BPVC Section VIII for condensers
3. Fabrication Advantages
  • No preheat required for welding
  • Compatible with SMAW/GTAW/SAW processes
  • Tight dimensional tolerances
4. Manufacturer Assurance
  • ASME-certified production with full traceability
  • Custom solutions: Electropolishing (Ra≤0.8μm), VCI packaging
  • 30+ years of cryogenic piping expertise

ASME SA333 Grade 6 Seamless Carbon Steel Pipe for Low Temperature 0
