ASTM A179 Embedded G-Type AL Fin Tube Carbon Steel Heat Exchanger Tube

ASTM A179 Embedded G-Type AL Fin Tube Carbon Steel Heat Exchanger Tube

With decades of production and export experience in this field, YUHONG GROUP is proud to say that we can handle kinds of projects, such as heat exchanger / boiler projects, marine projects, oil & gas projects etc. Every year we sell more than 80000 tons of stainless steel pipes and tubes. Our products have been well known among the customers around the world. YUHONG GROUP has build long term relationship with these valuable clients, which already cover more than 65 countries.

What are fin tubes?

Fin tubes are a type of heat exchanger that is used in many different industries. These tubes have a finned surface, which increases their surface area and allows them to transfer heat more efficiently. This makes them ideal for applications where high heat transfer rates are required, such as in power plants and refrigeration systems.

Fin tubes are made from a variety of materials, including copper, aluminum, and stainless steel. They are available in a range of sizes and shapes and can be customized to meet the specific needs of each application.

One of the key benefits of fin tubes is their ability to operate efficiently at high temperatures and pressures. This makes them suitable for use in a wide range of applications, including air conditioning, heat exchangers, and radiators.

In addition to their high thermal performance, fin tubes are also durable and long-lasting. They are resistant to corrosion and can withstand the harsh environments often found in industrial settings. This makes them a cost-effective solution for many different industries.

Chemical Composition of ASTM A179​

Short Description

G Type Embedded Finned Tube is that the fin strip is tension wound and placed in the groove cut into the tube with appr, 0.4mm groove depth, then the bottom of the fin is guided into the groove and backfilled with base tube Firmly.

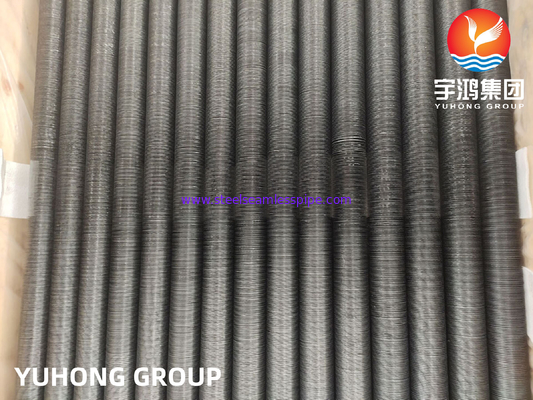

G Type Embedded Finned Tube

G Type Embedded Finned Tube is that the fin strip is tension wound and placed in the groove cut into the tube with appr, 0.4mm groove depth, then the bottom of the fin is guided into the groove and backfilled with base tube Firmly, finally lock the fins in place by rolling the grooves enclosed in the bottom of the fins. The maximum operating temperature of G Type Embedded Finned Tube can reach 400°C.

G Type Embedded Finned Tube Quick Details

Core tube material:
1. Carbon steel: A179, A192, SA210 Gr A1/C, A106 Gr B
2. Stainless steel: TP304/304L, TP316/TP316L/316Ti, A789 S31803/S2205
3. Copper: UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10
Fin material:
1. Aluminum (Alu.1100, Alu.1060)
2. Copper.
3. Steel
Fin type: Solid plain
Fin Tube Type: G Type Embedded

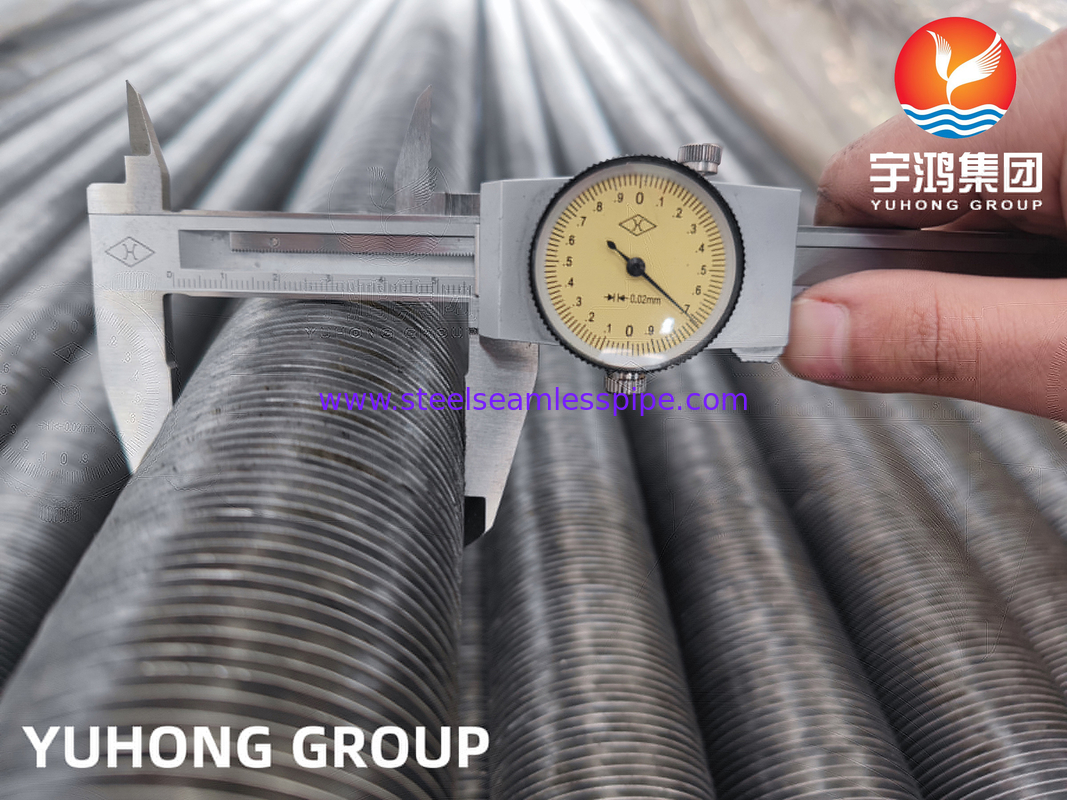

Outer diameter (OD): 16mm Min~50.8mm max.
Tube length: up to 18,000 mm.
Fin height: 16.5mm max.
Fin thickness: generally 0.4mm~0.6mm
Fin pitch: 2.1mm minimum (12FPI)

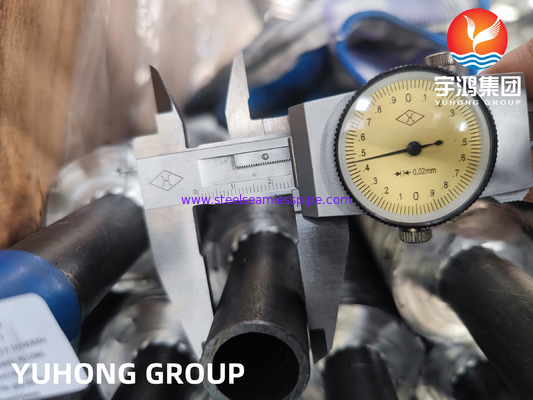

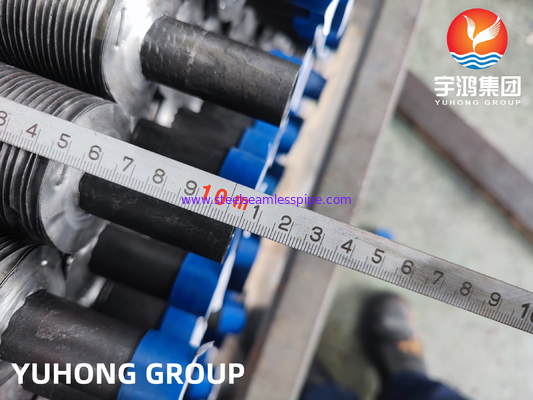

Surface Protection: Both bare ends shall be zinc or aluminum metallized by electrospray arc system coating.
Accessories: Tube support boxes, clamps or spacer boxes (materials: aluminium, zinc and stainless steel).

Advantages

Transferring heat from a hot fluid into a colder fluid through a tube wall is the reason many of us use finned tubes.

But you may ask, what is the major advantage of using a finned tube? Why can’t you just use a regular tube to make this transfer? Well you can but the rate will be much slower.

By not using a finned tube the outside surface area is not significantly greater than the inside surface area. Because of that, the fluid with the lowest heat transfer coefficient will dictate the overall heat transfer rate. When the heat transfer coefficient of the fluid inside the tube is several times larger than that of the fluid outside the tube the overall heat transfer rate can be greatly improved by increasing the outside surface area of the tube.

Finned tubes increase outside the surface area. By having a finned tube in place, it increases the overall heat transfer rate. This then decreases the total number of tubes required for a given application which then also reduces overall equipment size and can in the long-run decrease the cost of the project. In many application cases, one finned tube replaces six or more bare tubes at less than 1/3 the cost and 1/4 the volume.
