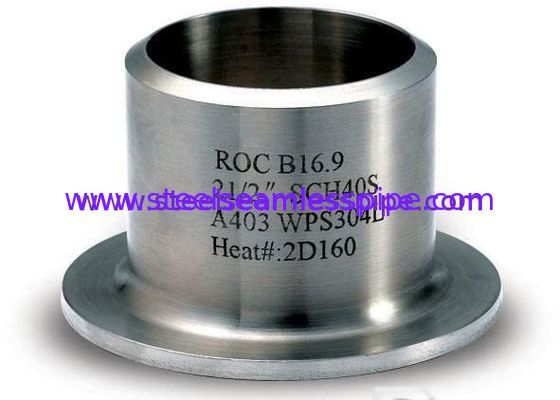

Flange lap joint in welding , steel lap joint flange for pipes and tube, 1/2" to 60" , SCH40/ SCH80, SCH160 ,XXS B16.9

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A234 WPB , ASTM A860, ASTM A420ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10 DAYS
Payment Terms:	L/C AT SIGHT,T/T
Supply Ability:	1500 TONS PER MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (346)

Stainless Steel Seamless Tube (343)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (745)

Heat Exchanger (35)

Heat Exchanger Tube (476)

Heat Exchanger Tube Bundle (54)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (108)

Copper Alloy Tube (258)

Alloy Steel Tube (220)

Titanium Tube (21)

Bright Annealed Tube (166)

Boiler Tube (161)

Steel Fitting (876)

Steel Flange (677)

Others (412)

Cladding Parts (9)

Detailed Product Description

Wall Thickness:	SCH 5S - SCH XXS	Material:	WPB , WPC , WPHY 42, WPHY 46, WPHY52, WPHY 56, WPHY 60 , WPHY 65 , WPHY 70 , WPHY 80
Size Range:	1/4" To 100"	Outside Diameter:	0.84" To 12.75"
Inside Diameter:	0.546" To 12"	Overall Length:	3" To 10"
Highlight:	steel strip coil , car trim strip

Flange lap joint in welding , steel lap joint flange for pipes and tube

Products information:

Size : 1/8"NB TO 100"NB

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer

Materials

Stainless Steel Reducer - SS Reducer

ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer - CS Reducer

ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer

ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer

ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy Reducer

Standard

ASTM / ASME SB 336.
UNS 10276 (HASTELLOY C 276 Reducer)
UNS 2200 (NICKEL 200 Reducer),
UNS 2201 (NICKEL 201 Reducer),
UNS 4400 (MONEL 400 Reducer),
UNS 8020 (ALLOY 20 Reducer),
UNS 8825 (INCONEL 825 Reducer),
UNS 6600 (INCONEL 600 Reducer),
UNS 6601 (INCONEL 601 Reducer),
UNS 6625 (INCONEL 625 Reducer),

Value Added Services

Hot Dip Galvanizing
Epoxy Coating

Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B

Carbon Steel Pipe Fitting - Lap Joint

Standard

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall and Lap Thickness	Lap Diameter G	Fillet Radius R	Overall Length	Pipe Schedule	Weight in Pounds
1/2	0.84	0.622	0.109	1.38	0.12	3	40	0.3
3/4	1.05	0.824	0.113	1.07	0.12	3	40	0.4
1	1.32	1.05	0.133	2	0.12	4	40	0.75
1 1/4	1.66	1.38	0.14	2 .50	0.19	4	40	1.1
1 1/2	1.9	1.61	0.145	2.88	0.25	4	40	1.25
2	2.38	2.07	0.154	3.63	0.31	6	40	2.25
2 1/2	2.88	2.45	0.203	4.13	0.31	6	40	3.5
3	3.5	3.07	0.216	5	0.38	6	40	4.75
3 1/2	4	3.55	0.226	5.5	0.38	6	40	6
4	4.5	4.03	0.237	6.12	0.44	6	40	7.25
5	5.56	5.05	0.258	7.31	0.44	8	40	12
6	6.63	6.07	0.28	8.5	0.5	8	40	16
8	8.63	7.98	0.322	10.63	0.5	8	40	23
10	10.75	10.02	0.365	12.75	0.5	10	40	36
12	12.75	12	0.375	15	0.5	10	*	47

Extra Strong

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall and Lap Thickness	Lap Diameter G	Fillet Radius R	Overall Length	Pipe Schedule	Weight in Pounds
1/2	0.84	0.546	0.147	1.38	0.12	3	80	0.38
3/4	1.05	0.724	0.154	1.69	0.12	3	80	0.51
1	1.32	0.957	0.179	2	0.12	4	80	1
1 1/4	1.66	1.28	0.191	2.5	0.19	4	80	1.25
1 1/2	1.9	1.5	0.2	2.88	0.25	4	80	1.75
2	2.38	1.93	0.218	3.63	0.31	6	80	3
2 1/2	2.88	2.32	0.276	4.13	0.31	6	80	4.5
3	3.5	2.9	0.3	5	0.38	6	80	6.5
3 1/2	4	3.36	0.318	5.5	0.38	6	80	7.75
4	4.5	3.83	0.337	6.19	0.44	6	80	9.5
5	5.56	4.81	0.375	7.31	0.44	8	80	17
6	6.63	5.76	0.432	8.5	0.5	8	80	23
8	8.63	7.63	0.5	10.63	0.5	8	80	32
10	10.75	9.75	0.5	12.75	0.5	10	60	53
12	12.75	11.75	0.5	15	0.5	10	*	62
