Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, BV, ISO, TUV, PED, DNV, ASTM |
Model Number: | ASTM B677/ASME SB677 UNS NO8904/TP904L SMLS PIPE |
Minimum Order Quantity: | 500KGS |
---|---|
Price: | Negotiable |

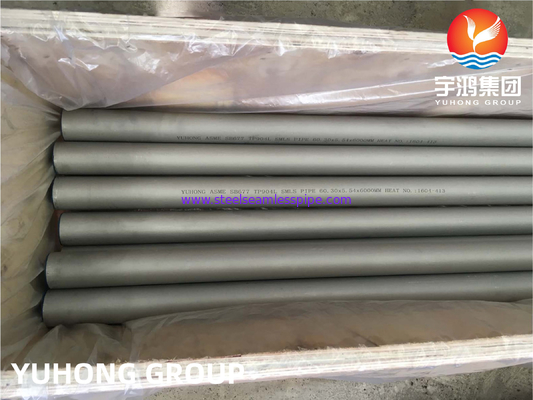

Packaging Details: | Ply-wooden case packing, with plastic caps on both ends. |
Delivery Time: | according to quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 Tons Per Month |
Material: | UNS NO8904/904L | Standard: | ASTM B677/ASME SA677 |
---|---|---|---|
NDT Test: | Eddy Current Test, Hydrostatic Test, UT, IGC, Grain Size Test , | Tube Finish: | Pickled & Annealed, Bright Annealed |
Packing: | Ply Wooden Case | Length: | 6M Or Specified Length As Required |
High Light: | seamless stainless steel tube,stainless steel seamless pipes |
Overview:
904L is a non-stabilised low carbon high alloy austenitic stainless steel. The addition of copper to this grade gives it greatly improved resistance to strong reducing acids, particularly sulphuric acid. It is also highly resistant to chloride attack - both pitting / crevice corrosion and stress corrosion cracking. This grade is non-magnetic in all conditions and has excellent weldability and formability. The austenitic structure also gives this grade excellent toughness, even down to cryogenic temperatures. 904L does have very substantial contents of the high cost ingredients nickel and molybdenum. Many of the applications in which this grade has previously performed well can now be fulfilled at lower cost by duplex stainless steel 2205 (S31803 or S32205), so it is used less commonly than in the past.
Specification:
Standard Specification | ASTM B677 & Its equivalent ASME, DIN & EN Standard |
Size | 1/4'' to 4-1/2'' or as customer required |
Wall Thickness | 25BWG to 10BWG or as customer required |
SS Seamless Pipe Length |
Single Random Length 5 to 7 mtr |
Seamless SS Pipe Surface Finish | Cold Finish, Bright, Polished, Annealing, Pickling, or as per client requirements |
Manufacturing types | Seamless, Welded, ERW, EFW |
Manufacturing Shapes | Round |
Manufacturing Technology | Hot / Cold Formed |
Test Reports | Eddy Current Testing, O.P Testing, Radiography Testing, Corrosion Testing, Micro Testing, Macro Testing, IGC Testing, Ultrasonic testing, Liquid Penetrate testing, etc. |
Technique | Cold Rolled Hot Rolled |
Chemical Composition:
Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Cu |
904L | NO8904 | 0.02 max | 2.00 max | 0.04 max | 0.03 max | 1.00 max | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | 1.0-2.0 |
Mechanical Properties:
Grade | Tensile Strength, min, ksi (MPa) |
Yield Strength, |
Elongation in 2 in. |
Hardness |
Solutioning Temperature, |
|
Rockwell | Brinell/Vickers | |||||
904L | 71(490) | 31(215) | 35 | 90HRB | 192HBW/200HV | 2000(1100) |
Equivalent Grades:
Standard | WERKSTOFF NR. | Unified Numbering System | European Standards | AFNOR | British Standards | GOST | Japanese Standards |
904L | 1.4539 | NO8904 | X1NiCrMoCu25-20-5 | Z2 NCDU 25-20 | 904S13 | - | SUS 890L |
Applications:
1.Cooling equipment for seawater
2.Gas washing
3.Control and instrumentation
4.Heat exchangers
5.Oil and gas industry
6.Pharmaceutical production
7.Wiring in electrostatic precipitators
8.Chemical processing of sulphuric, phosphoric and acetic acids
9.Condenser tubes
