Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI |
Model Number: | ASTM A234 WPB-S LR/SR 90DEG ELBOW |
Minimum Order Quantity: | 1PC |
---|---|
Price: | discussion |

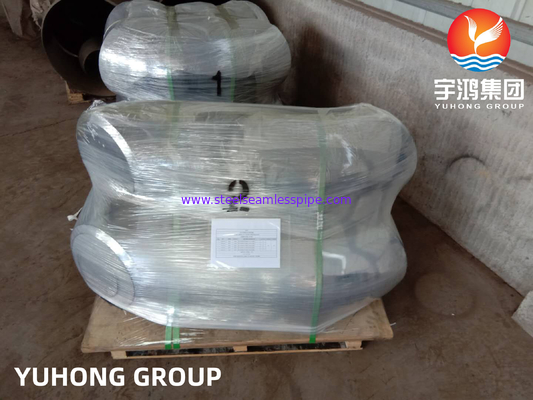

Packaging Details: | Ply-wooden Case Or Iron Case |
Delivery Time: | according to quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 TONS PER MONTH |
Standard: | ASTM A234 | Grade: | WPB-S |
---|---|---|---|
Material: | Carbon Steel | Type: | Elbow |
Size: | Customized Size | Degree: | 45 90 180 |
High Light: | carbon steel fittings,butt welding fittings |
Overview

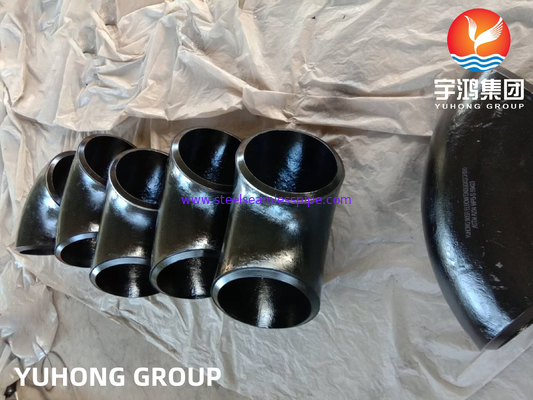

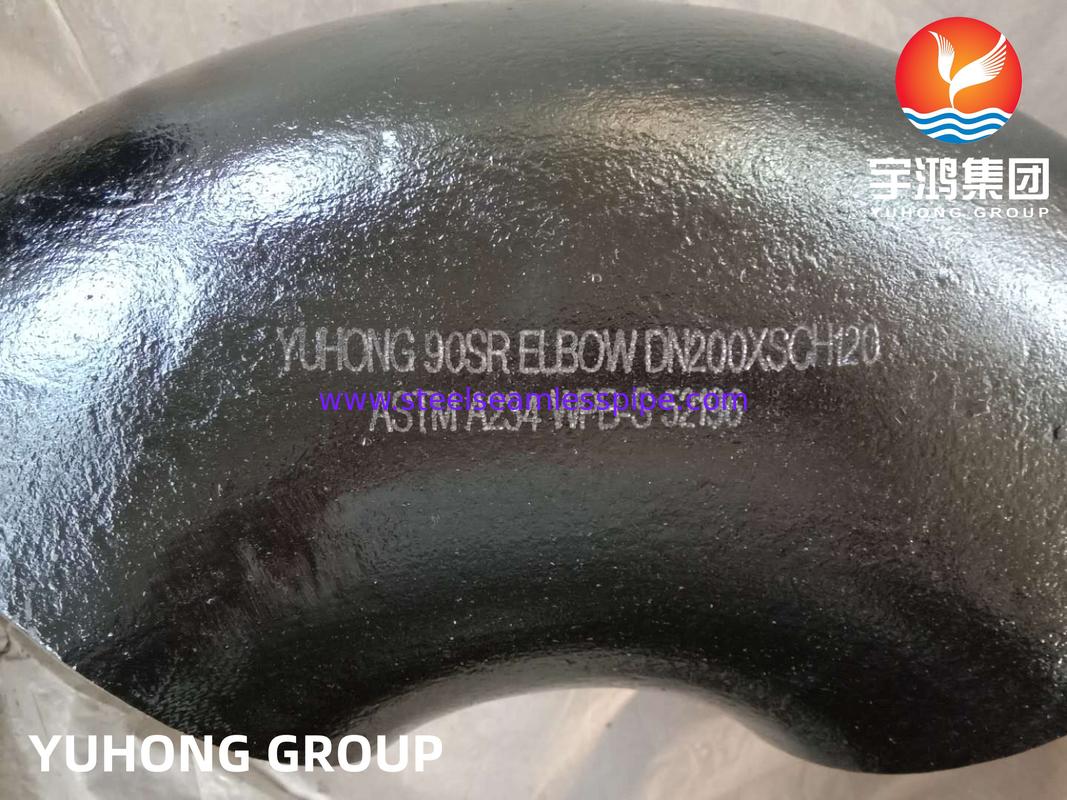

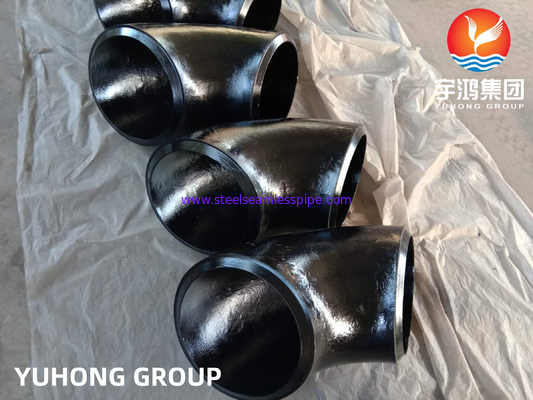

Steel elbow is used to be installed between two lengths of pipe or tube allowing a change of direction,usually these carbon steel elbows distinguished by connection ends, The ends may be machined for butt welding , threaded or socketed, so the carbon steel elbows are consist of butt weld,thread elbow socket elbow and other series.the material is selected according to the application use such as high temperature use,sanitary fitting,regular industrial use etc.
Specfication
Product Name |
Pipe elbow |
Size |
1/2"-36" seamless, 26"-110" welded |
Standard |
ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc. |
Wall thickness |
STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
Elbow |
30° 45° 60° 90° 180°,etc |
Radius |
LR/long radius/R=1.5D,SR/Shrot radius/R=1D |
End |
Bevel end/BE/buttweld |
Surface |
nature color, varnished, black painting, anti-rust oil etc. |
Material |
Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc. |
Pipeline steel: ASTM 1860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. |
|
Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 etc. |
|
Advantages |
ready stock,faster delivery time;available in all sizes,austomized;high quality |
Chemical Composition
Grade |
C |
Mn |
P |
S |
Si |
Cr |
Mo |
Ni |
Cu |
V |
Nb |
WPB |
0.3 |
0.29-1.06 |
0.05 |
0.058 |
0.1min |
0.4 |
0.15 |
0.4 |
0.4 |
0.08 |
0.02 |
Mechanical Properties
Tensile Requirements |
WPB |
WPC, WP11CL2 |
WP11CL1 |
WP11CL3 |
Tensile Strength, min, ksi[MPa] |
60-85 |
70-95 |
60-85 |
75-100 |
(0.2% offset or 0.5% extension-under-load) |
[415-585] |
[485-655] |
[415-585] |
[520-690] |
Yield Strength, min, ksi[MPa] |
32 |
40 |
30 |
45 |
[240] |
[275] |
[205] |
[310] |
Applications
1. Petrochemical Industry
2. Aviation and Aerospace Industry
3. Pharmaceutical Industry
4. Gas Exhaust
5. Power Plant
6. Ship Building
7. Water Treatment
