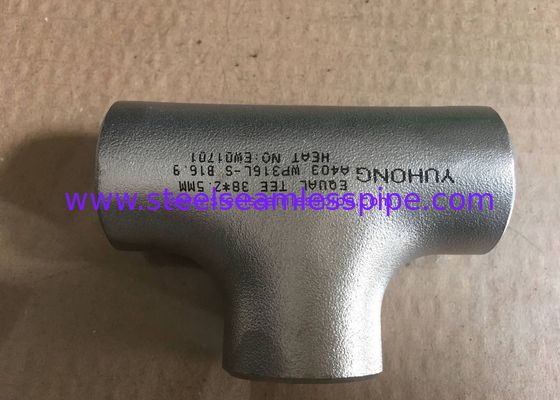

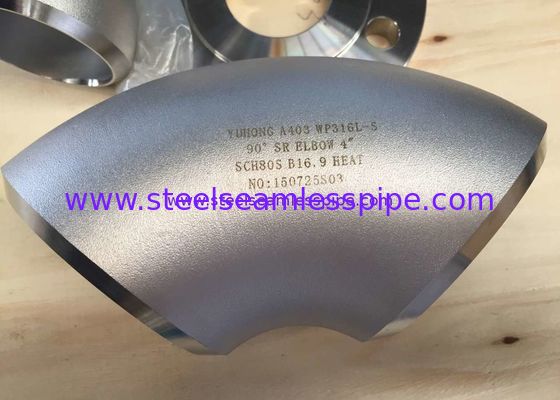

Metal Butt Weld Fittings ASTM B366 UNS N08904 1/2" - 60" SCH40 SCH80 SCH160 XXS B16.9

Metal Butt Weld Fittings ASTM B366 UNS N08904 1/2" - 60" SCH40 SCH80 SCH160 XXS B16.9
Metal Butt Weld Fittings ASTM B366 UNS N08904 1/2" - 60" SCH40 SCH80 SCH160 XXS B16.9 Metal Butt Weld Fittings ASTM B366 UNS N08904 1/2" - 60" SCH40 SCH80 SCH160 XXS B16.9 Metal Butt Weld Fittings ASTM B366 UNS N08904 1/2" - 60" SCH40 SCH80 SCH160 XXS B16.9 Metal Butt Weld Fittings ASTM B366 UNS N08904 1/2" - 60" SCH40 SCH80 SCH160 XXS B16.9

Large Image :  Metal Butt Weld Fittings ASTM B366 UNS N08904 1/2" - 60" SCH40 SCH80 SCH160 XXS B16.9

Product Details:
Place of Origin: China
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B366 UNS N08904,N06625,N08825,UNS N10276
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10 DAYS
Payment Terms: L/C AT SIGHT , T/T
Supply Ability: 1500 TONS PER MONTH
Detailed Product Description
Material: UNS N08904,N06625,N08825,UNS N10276 Standard: ASTM B366
Surface: Black Painting Or Other Color Coating Size: 1/4" To 100" Sch10s To XXS
High Light:

butt welding fittings

,

forged steel fittings

Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L

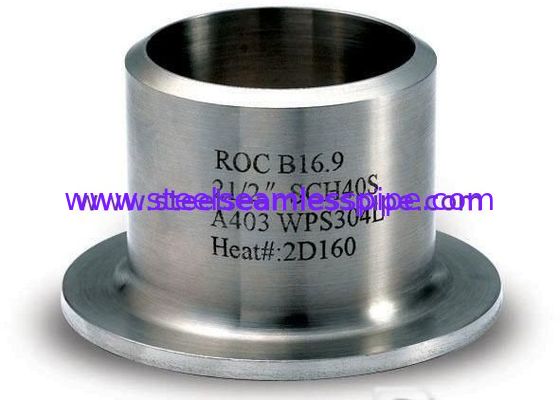

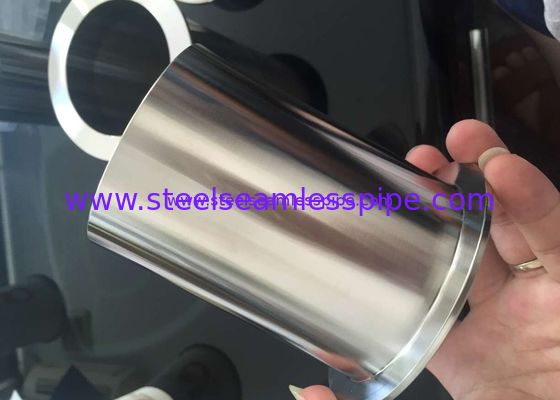

Stub ends ANSI B 16.9
Stub Ends are fittings used in place of welded flanges where rotating back up flanges are desired. They are also called Lap Joints and Vanstone Flared Laps. A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint. Our high quality stub ends (Butt weld fittings) are tested and verified for durability, accuracy and precision. The stub ends are manufactured in all standard dimensions. The stub ends are provided with a standard weld bevel and can be available in squared, flanged, victaulic and threaded ends. We offer stub ends at highly competitive prices.
Butt Weld Fittings,Stub Ends,A234-WP11 A234-WP22 A234-WP5, A234-WP9, A234-WP91,Type A,Type B,Type C,Type D,B16.9


Prosaic Steel & Alloys manufactures a wide range of stub ends (pipefitting) made of materials - exotic metals, nickel, cupro-nickel, Stainless Steel etc., of various grades. Prosaic Steel & Alloys manufactures & supplies high quality stub ends (pipe fittings) that can be used for various applications. Our stub ends are tested and verified for durability, accuracy and precision.
Prosaic Steel & Alloys manufactures seamless stub ends of long & short radius to MSS and ANSI B 16.9 standard from Schedules 10 to 160.
Prosaic Steel & Alloys designs & manufactures subtends (pipe fitting) of special type made according to drawing on request.

Material: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6, 316L, 304L, 321, 321H.
Size: 1/2" - 24"
Types: Type A, Type B, Type C, Type D
Manufacturing standard: ASME/ANSI B16.9, JIS, DIN, EN, API 5L, etc.
Surface treatment: Shot blasted, rust-proof black oil

INCHES METRIC
N.B. O.D. At Bevel F Rad. Of Fillet R Dia of Lap G O.D. Of Barrel   N.B. O.D. At Bevel F Rad. Of Fillet R Dia of Lap G O.D. Of Barrel
          Max. Min.           Max. Min.
1
-
2
0.84 3 1
-
8
1 3/8 0.9 0.81 15 21.34 76.2 3.18 34.93 22.76 20.55
3
-
4
1.05 3 1
-
8
1 11/16 1.11 1.02 20 26.67 76.2 3.18 42.86 28.09 25.88
1 1.32 4 1
-
8
2 1.38 1.28 25 33.4 101.6 3.18 50.8 34.95 32.61
1 1/4 1.66 4 3
-
16
2 1/2 1.72 1.63 32 42.16 101.6 4.76 63.5 43.59 41.38
1 1/2 1.9 4 1
-
4
2 7/8 1.97 1.87 40 48.26 101.6 6.35 73.03 49.94 47.47
2 2.38 6 5
-
16
3 5/8 2.46 2.34 50 60.33 152.4 7.94 92.08 62.38 59.54
2 1/2 2.88 6 5
-
16
4 1/8 2.97 2.84 65 73.03 152.4 7.94 104.78 75.34 72.24
3 3.5 6 3
-
8
5 3.6 3.47 80 88.9 152.4 9.53 127 91.34 88.11
3 1/2 4 6 3
-
8
5 1/2 4.1 3.97 90 101.6 152.4 9.53 139.7 104.04 100.81
4 4.5 6 7
-
16
6 3/16 4.59 4.47 100 114.3 152.4 11.11 157.16 116.66 113.51
5 5.56 8 7
-
16
7 5/16 5.68 5.53 125 141.3 203.2 11.11 185.74 144.35 140.51
6 6.63 8 1
-
2
8 1/2 6.74 6.59 150 168.28 203.2 12.7 215.9 171.27 167.49
8 8.63 8 1
-
2
10 5/8 8.74 8.59 200 219.08 203.2 12.7 269.88 222.07 218.29
10 10.75 10 1
- 2
12 3/4 10.91 10.72 250 273.05 254 12.7 323.85 277.19 272.26
12 12.75 10 1
-
2
15 12.91 12.72 300 323.85 254 12.7 381 327.99 323.06
14 14 12 1
-
2
16 1/4 14.17 13.97 350 355.6 304.8 12.7 412.75 359.92 354.81
16 16 12 1
-
2
18 1/2 16.18 15.97 400 406.4 304.8 12.7 469.9 410.97 405.61
18 18 12 1
-
2
21 18.19 17.97 450 457.2 304.8 12.7 533.4 462.03 456.41
20 20 12 1
-
2
23 20.24 19.97 500 508 304.8 12.7 584.2 514.1 507.21
22 22 12 1
-
2
25 1/4 22.24 21.97 550 558.8 304.8 12.7 641.35 564.9 558.01
24 24 12 1
-
2
27 1/4 24.24 23.97 600 609.6 304.8 12.7 692.15 615.7 608.81


904L APPLICATION :

Production and transport of sulfuric acid
Metal pickling in sulfuric acid
Production and concentration of phosphoric acid
Use in seawater, brackish water, condensers, heat exchangers and pipe work in general
Paper and allied industries
Gas washing
Chemical and pharmaceutical industries


Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L
