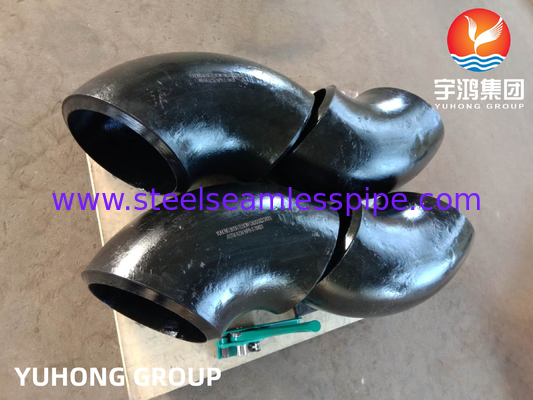

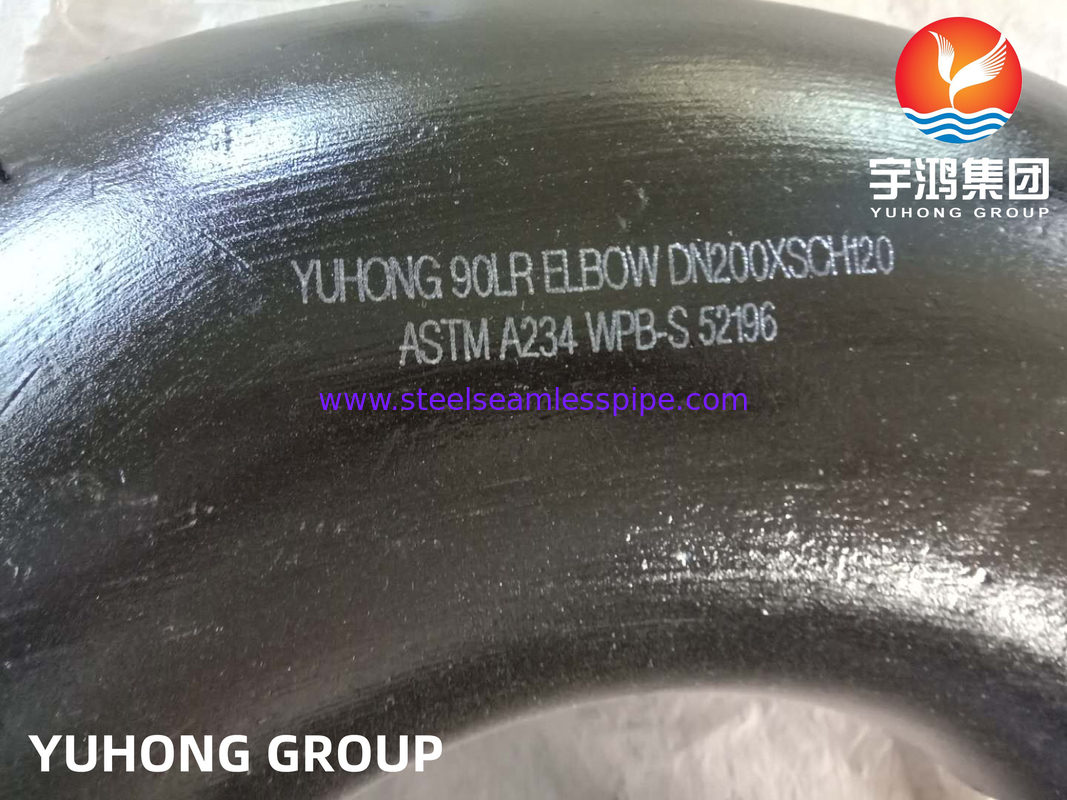

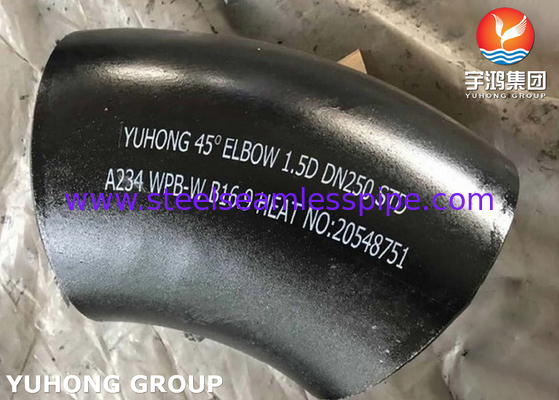

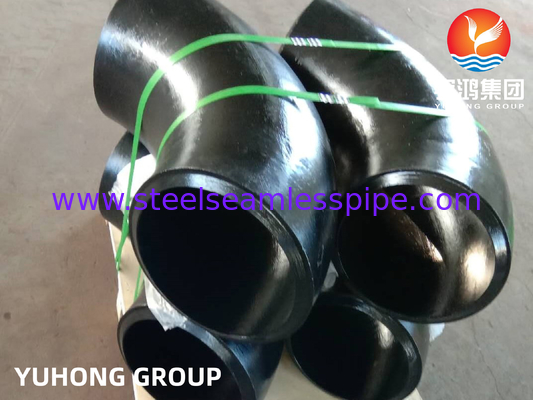

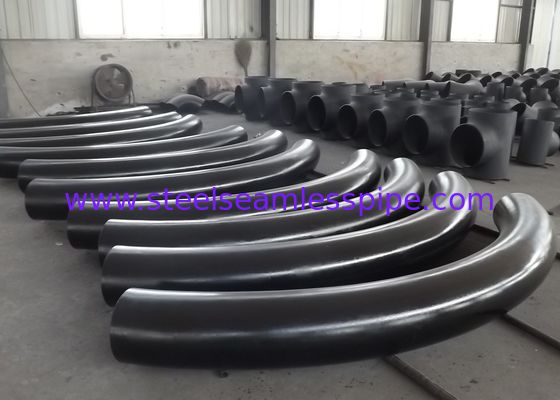

Carbon Steel Forged Steel Fittings ASTM A234 WPB-S LR 45 / 90 Degree Bend

Carbon Steel Forged Steel Fittings ASTM A234 WPB-S LR 45 / 90 Degree Bend

  • Carbon Steel Forged Steel Fittings ASTM A234 WPB-S LR 45 / 90 Degree Bend
  • Carbon Steel Forged Steel Fittings ASTM A234 WPB-S LR 45 / 90 Degree Bend
  • Carbon Steel Forged Steel Fittings ASTM A234 WPB-S LR 45 / 90 Degree Bend
  • Carbon Steel Forged Steel Fittings ASTM A234 WPB-S LR 45 / 90 Degree Bend
Carbon Steel Forged Steel Fittings ASTM A234 WPB-S LR 45 / 90 Degree Bend
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A234 WPB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: According to export standard
Delivery Time: 7 days
Payment Terms: T/T, L/C
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Size: 2'', 3'', 4'', 6'', 8'' SURFACE: Black
Radius: 1.5D , 2.5D, 5D, 3D Material: Carbon Steel
High Light:

butt welding fittings

,

forged steel fittings



ASTM A234 WPB LR 45,90 degree elbow fitting 8" SCH80 BW B16.9 , Black Painting,2.5D,5D





Standard



Nominal
Pipe Size
Outside
Diameter
Inside
Diameter
Wall
Thickness
Center
To End
Pipe
Schedule
Weight
Pounds
1/2 0.84 0.622 0.109 0.62 40 0.09
3/4 1.05 0.824 0.113 0.75 40 0.1
1 1.32 1.05 0.133 0.88 40 0.22
1 1/4 1.66 1.38 0.14 1 40 0.33
1 1/2 1.9 1.61 0.145 1.12 40 0.43
2 2.38 2.07 0.154 1.38 40 0.85
2 1/2 2.88 2.47 0.203 1.75 40 1.7
3 3.5 3.07 0.216 2 40 2.5
3 1/2 4 3.55 0.226 2.25 40 3.4
4 4.5 4.03 0.237 2.5 40 4.5
5 5.56 5.05 0.258 3.12 40 7.5
6 6.62 6.06 0.28 3.75 40 11.7
8 8.62 7.98 0.322 5 40 23.3
10 10.75 10.02 0.365 6.25 40 40.9
12 12.75 12 0.375 7.5 * 61.4
14 14 13.25 0.375 8.75 30 78.1
16 16 15.25 0.375 10 30 101
18 18 17.25 0.375 11.25 * 128
20 20 19.25 0.375 12.5 20 159
24 24 23.25 0.375 15 20 231
30 30 29.25 0.375 18.5 * 358
36 36 35.25 0.375 22.25 * 518
42 42 41.25 0.375 26 * 707
48 48 47.25 0.375 29.88 * 1,000











Extra Strong



Nominal
Pipe Size
Outside
Diameter
Inside
Diameter
Wall
Thickness
Center
To End
Pipe
Schedule
Weight
Pounds
1/2 0.84 0.546 0.147 0.62 80 0.15
3/4 1.05 0.742 0.154 0.75 80 0.16
1 1.32 0.957 0.179 0.88 80 0.28
1 1/4 1.66 1.28 0.191 1 80 0.45
1 1/2 1.9 1.5 0.2 1.12 80 0.61
2 2.38 1.94 0.218 1.38 80 1.2
2 1/2 2.88 2.32 0.276 1.75 80 2
3 3.5 2.9 0.3 2 80 3.3
3 1/2 4 3.36 0.318 2.25 80 4.5
4 4.5 3.83 0.337 2.5 80 6.2
5 5.56 4.81 0.375 3.12 80 10.5
6 6.62 5.76 0.432 3.75 80 17
8 8.62 7.63 0.5 5 80 34.3
10 10.75 9.75 0.5 6.25 60 53.5
12 12.75 11.75 0.5 7.5 * 77.6
14 14 13 0.5 8.75 * 100
16 16 15 0.5 10 40 134
18 18 17 0.5 11.25 * 170
20 20 19 0.5 12.5 30 209
24 24 23 0.5 15 * 302
30 30 29 0.5 18.5 20 475.1
36 36 35 0.5 22.25 20 686.1
42 42 41 0.5 26 * 936.1
48 48 47 0.5 29.88 * 1250




Product range :



Size : 1/8"NB TO 100"NB

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer








Materials






Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy Reducer











        Standard



  • ASTM / ASME SB 336.
  • UNS 10276 (HASTELLOY C 276 Reducer)
  • UNS 2200 (NICKEL 200 Reducer),
  • UNS 2201 (NICKEL 201 Reducer),
  • UNS 4400 (MONEL 400 Reducer),
  • UNS 8020 (ALLOY 20 Reducer),
  • UNS 8825 (INCONEL 825 Reducer),
  • UNS 6600 (INCONEL 600 Reducer),
  • UNS 6601 (INCONEL 601 Reducer),
  • UNS 6625 (INCONEL 625 Reducer),







     Value Added Services

  • Hot Dip Galvanizing
  • Epoxy Coating

Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B
