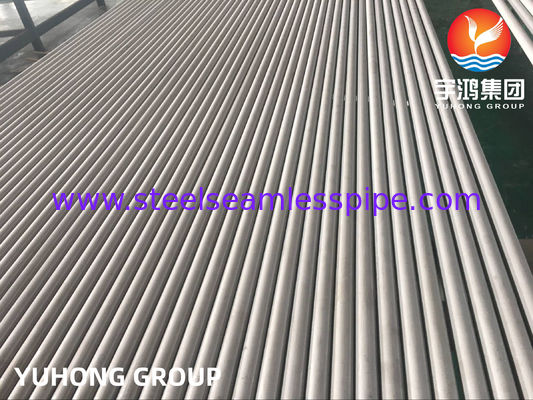

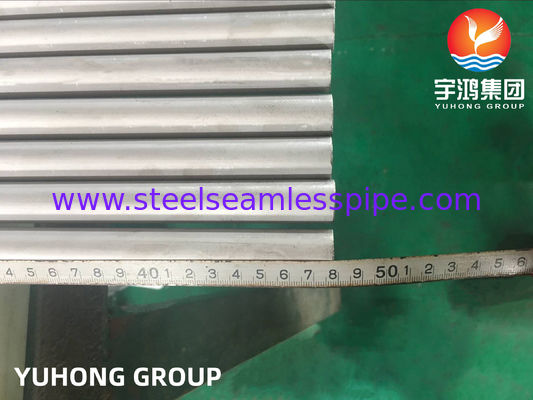

3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321

3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321

  • 3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321
  • 3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321
  • 3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321
  • 3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321
  • 3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321
3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321
Product Details:
Place of Origin: CHINA, JAPAN, THAILAND, UK, USA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case
Delivery Time: 10-15 DAYS
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CUSTOMER'S REQUEST
Contact Now
Detailed Product Description
Standard: ASTM A213, ASME SA213 NDT: Eddy Current Test, Hydrostatic Test, UT, IGC, Grain Size Test
Type: Mill Finished, Polished, Bright Annealed Material: TP321 / TP321H
Origin: CHINA, JAPAN Model: TP304/304L , TP316L , TP310S,TP321
High Light:

heat recovery pipe

,

seamless stainless steel tube

3/4" 16BWG 20FT SS Seamless Tube Corrosion Resistance Heat Exchanger Condernser Air Cooler Material TP304 TP316 TP321







Material Grade:







Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter   BWG
25 22 20 18 16 14 12 10
  Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch   Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429
12.7 1/2   0.214 0.263 0.356 0.457 0.612 0.754
15.88 5/8   0.271 0.334 0.455 0.588 0.796 0.995
19.05 3/4   0.327 0.405 0.553 0.729 0.895 1.236
25.4 1   0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4   0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2   0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4       1.342 1.774 2.244 2.894 3.5
50.8 2       1.549 2.034 2.574 3.334 4.03
63.5 2 1/2       1.949 2.554 3.244 4.214 5.13
76.2 3       2.345 3.084 3.914 5.094 6.19
88.9 3 1/2       2.729 3.609 4.584 5.974 7.27
101.6 4         4.134 5.254 6.854 8.35
114.3 4 1/2         4.654 5.924 7.734 9.43
Form of Tube: Straight & U-bend & Finned & Coiled
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81.
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client

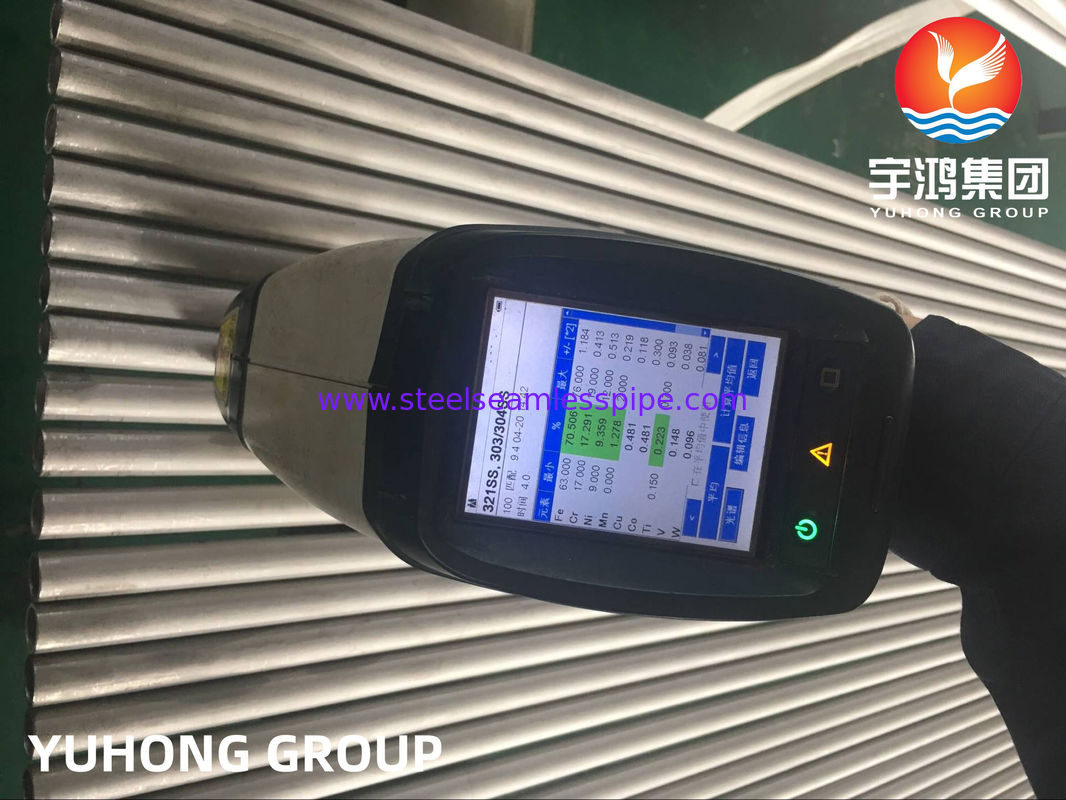

Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •
