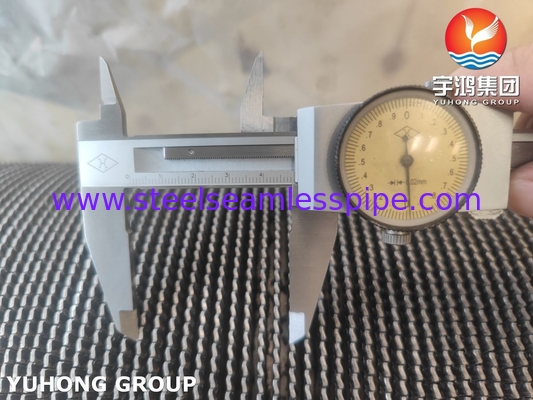

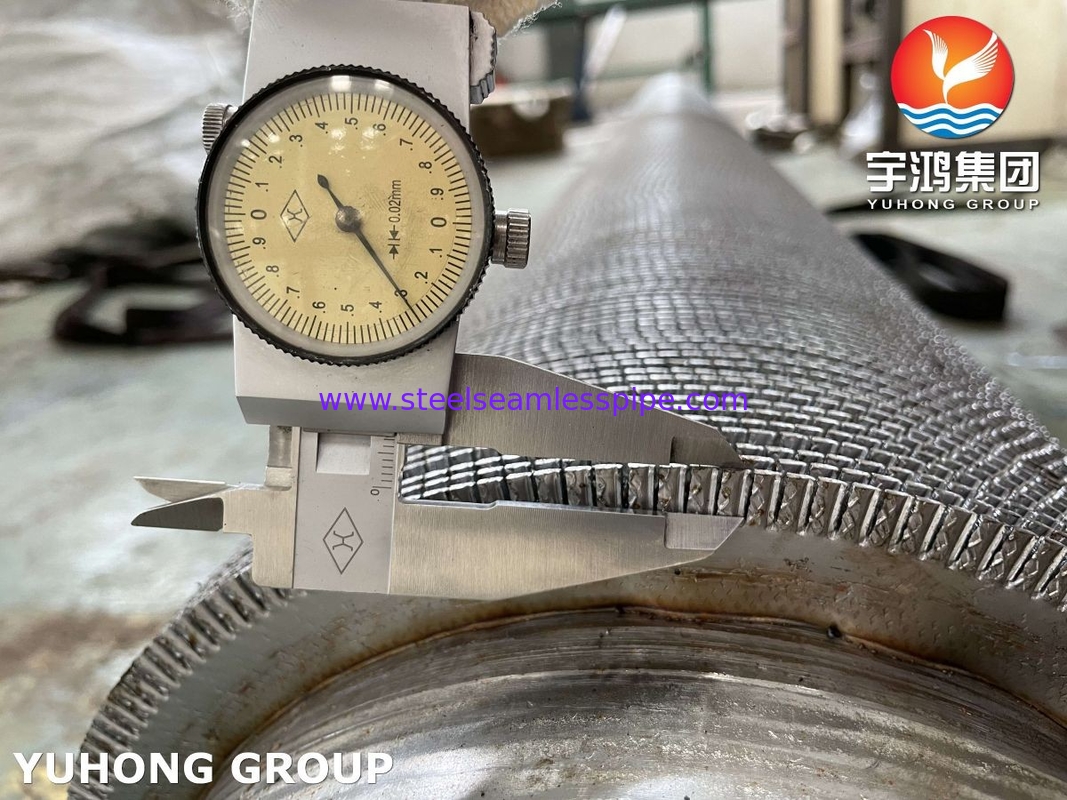

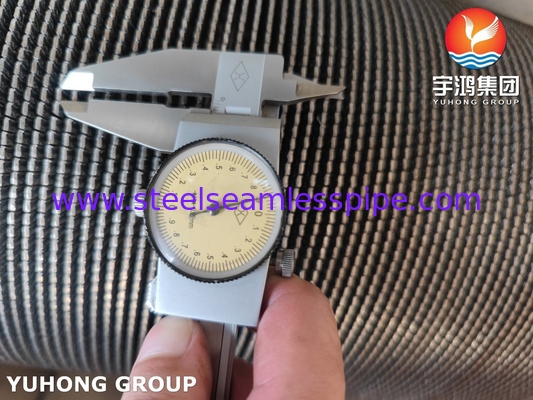

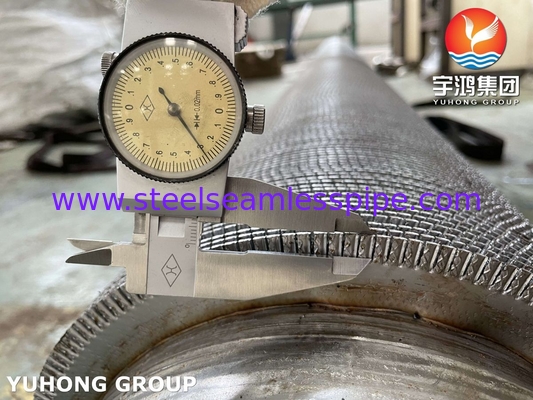

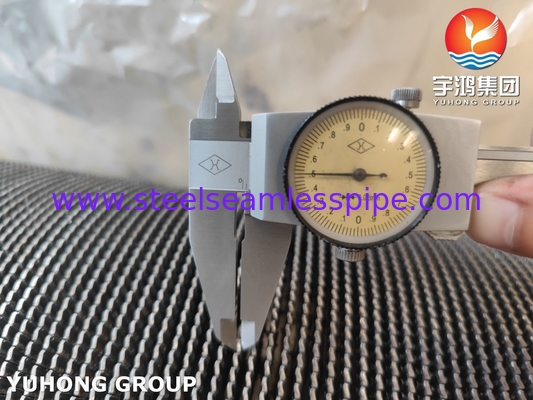

Heat Exchanger Fin Tube ASTM A312 TP304 SUS 304 1.4301 OD 1/4''~8'' LENGTH 9116MM
HFW Solid Finned Tubes short for High Frequency Welded Helical Spiral Solid Finned Tube
Helical Finned Tubes provide the designer with high thermal efficiency and compact design solutions for a whole range of heat exchangers where clean flue gases are used. Helical finned Tubes are manufactured in both Solid and Serrated type.
Helical Solid Finned Tubes are manufacturer by helically wrapping continuous fin strip on tube. HF Resistance Welding Usually Employs Frequency Of 400 kHz. The fin wound around the tube And Continuous weld. The fin strip is wounded spirally onto the tube and welded continuously with a high frequency electrical process to the base tube along the spiral root. The fin strip held under tension and confined laterally as it is formed around the tube, thereby ensuring that the strip is in forceful contact with the base tube surface. A continuous weld is applied at the point where the fin strip first begins to bend around the tube diameter, using the gas metal arc welding process.
For a given tube or pipe size, the desired heat transfer surface area per unit length of tube can be obtained by specifying the appropriate fin height, fin thickness and /or number of fins per meter of length.
HFW Solid Finned Tube
This welded steel finned tube configuration can be used for any practically heat exchanger application, and is particularly suited to high temperature and high pressure applications. The important features of this configuration are efficient, effective bond of fin to tube under all conditions of temperature and pressure, and ability to withstand high fin-side temperatures.
A continuous helical fin is attached to the base tube by high frequency electric resistance welding in order to give an efficient and thermally reliable bond.
Technical Details/Base Tube Details
Tube Diameter : 20 mm OD Min to 219 mm OD Max.
Tube Thickness : Minimum 2 mm up to 16mm
Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.
Fin Details
Fins Thickness : Min. 0.8 mm to Max. 4 mm
Fins Height : Min 0.25” (6.35 mm) To Max.1.5” (38 mm)
Fin Density : Min 43 Fins Per Meter To Max. 287 Fins Per Meter
Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy.
For a rapid quotation, plz send with following requirement:
Number of pieces,
base tube: Diameter, thickness, length and material specification.
Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
Delivery period required.
Keywords: Fin tubes, Finned tube, Finned Pipe Helical Finned Tubes, Solid fin tubes, Serrated finned tube, Helical Serrated Finned Tubes, Tubos Aletados
|
*These are the most common fin/tube patterns. We have more than 20 different plate fin and tube combinations. Contact me for more information and options.
|
|
Helical Fin Surface
(Tube OD – Available Helical Fin Height on the Tube)
|
|
5/8″ – 3/8″, 1/2″ and 7/16″
|
1″ – 3/8″, 1/2″ , 7/16″ and 5/8″
|
1 1/4″ – 3/8″, 1/2″ , 7/16″ and 5/8″
|
|
15.875mm – 9.525mm, 12.7mm and 11.113mm
|
5.4mm – 9.525mm, 12.7mm, 11.113mm and 15.875mm
|
31.75mm – 9.525mm, 12.7mm, 11.113mm, and 15.875mm
|
- “L” Footed, Embedded and other helical fin attachment options are available.
- Contact me about the availability of 1 1/4″ (31.75mm) tube material
|
|
General H type Fin production capacity
|
General specifications of H type fin tubes
|
|
Production Facility: 6 finning machines;
Daily capacity up to 20 tons;
|
Tube OD: 73 mm max.
Tube Length: 18 meters max.
Fin Thickness: 1.5mm ~3.5mm
Fin Pitch: 10mm Min.
|
Manufacturing Process
Square or Rectangular H Fins are welded on a steel base tube. We call it H Fin Type Tubing.
Acceptance Criteria
Approved drawing and the delivery conditions (TDC) of clients.
Additional Services
Tube swaging, elbows, bends(90° / 180° or as per client's design).
Quality Tests
The Square or Rectangualr H Finned Tube quality is assured by hydrostatic or pneumatic tests, eddy current tests and tensile tests in order to verify the mechanical bonding between inner tubes and outer fins.
Surface Coating
Outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.
Delivery Condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of Square or Rectangualr Fin Tube.
Applications:
- Economizers ,
- Heat exchangers
- Marine boilers
-
-
Specifications:
|
Items
|
General Materials
|
Popular ASTM /ASME Materials
|
|
Core Tube Material
|
Carbon Steel
Alloy Steel
Heat Resistant Steel,
Stainless Steel
|
1. Carbon Steel: A106 / A179 /A192 / A210 etc...
2. Stainless Steel: TP304/304L,TP316/TP316L, TP347 etc...
3. Alloy Steel: P5,T5,P9,T9,T11,T22
|
|
Fin
Material
|
Carbon Steel
Stainless Steel
|
1. Carbon Steel
2. Stainless Steel:
TP409/410,TP304/304L,TP316/TP316L etc...
|
Dimensions Data Sheet We're Supplying.
| General Descriptions of H-fins |
Popular Specifications we make |
| Tube OD(mm) |
25mm to 73mm |
| Tube Wall thickness(mm) |
2.5mm Min. |
| Tube length(mm) |
18000mm Max. |
| Fin thickness(mm) |
1.5mm to 3.5mm |
| Fin pitch(mm) |
10mm Min. |
| Please email us for more information. |
Competitive Advantage:
- We have more than 10,000 square meters workshop, including 6 H-FIN TYPE finning machines, daily extrusion capacity up to 20 tons.
- The Square of YUHONG Fins H-Finned Tubes are the preferred tube choice for high pressure boilers.
- Fins can be manufactured by stamping process in almost any shape and size.
- In-line fin and tube spacing allows for cleaning with excellent choice in sooting or fouling atmospheres.
- Fin height and spacing are limited only by heat transfer considerations.
- Fins and tubing can be similar or dissimilar metals.
-
-
