Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | 45DEGREE LONG RADIO ELBOW ASME SA-860 WPHY-65 OD 10'' SCH100 ASME B16.9 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | NEGOTIABLE |

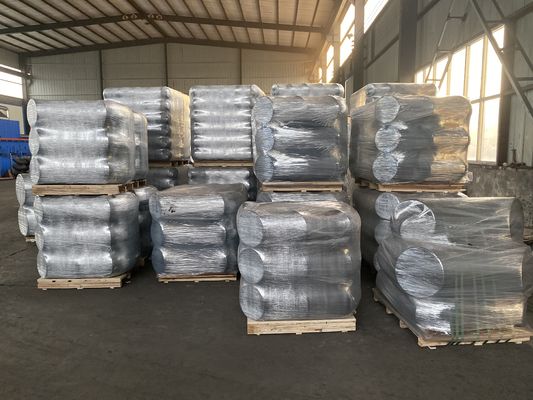

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| STANDARD: | ASME SA860, ASTM A860 | MATERIAL: | WPHY 42, WPHY 46, WPHY 52 WPHY 56 WPHY 60 WPHY 65 WPHY 70 |
|---|---|---|---|
| SPECIFICATION: | 45DEGREE LONG RADIO ELBOW ASME SA-860 WPHY-65 OD 10'' SCH100 ASME B16.9 | NDT: | MT , PMI , RT |
| Application: | B16.9, B16.49 | Material: | Carbon Steel |
| Shape: | Equal,Reducing,Round,malleable Pipe Fittings,Elbow | Thickness: | STD,DIN,SCH40,SGP,sch10-xxs(2-60mm) |
| Keyword: | Carbon Steel Pipe Elbow,Pipe Fitting,90 Degree Elbow | ||
| High Light: | ASME B16.9 Steel Pipe Fittings,ASME SA 860 Steel Pipe Fittings,ASME SA 860 long radio elbow |
||

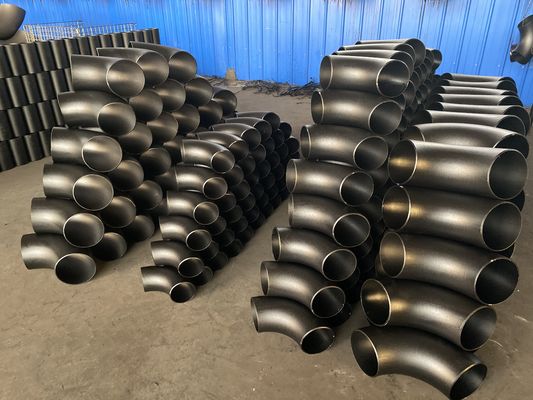

45DEGREE LONG RADIO ELBOW ASME SA860 WPHY65 OD 10'' SCH100 ASME B16.9 90018
We are one of the biggest projects pipeline products supplier in China, Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
ASTM A860 is the standard specification for wrought high-strength ferritic steel butt-welding fittings of seamless and electric fusion-welded construction. These pipe fittings shall be furnished in accordance with the dimensions of ASME B16.9(for sizes NPS 14 and smaller) or MSS SP 75(for sizes NPS 16 through NPS 48). They can be further categorized into 6 grades: WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70. Pipe fittings manufactured to ASTM A860 are usually used with API 5L line pipes and ASTM A694 high-strength forged flanges in high-pressure gas and oil transmission and distribution systems.
ASTM A860 CARBON STEEL PIPE FITTINGS SPECIFICATIONS :
Specifications : ASTM A860 / ASME SA860
Range : ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Variants : Carbon Steel Pipe Fittings
Type : Seamless / Welded / Fabricated.
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Grades : WPBW, WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65 & WPHY 70.
| The Chemical Composition of ASTM A860, % | |
| Carbon | ≤0.20*A |
| Manganese | 1.00-1.45 |
| Phosphorus | ≤0.030 |
| Sulfur | ≤0.010 |
| Silicon | 0.15-0.40*B |
| Nickel | ≤0.50*C |
| Chromium | ≤0.30*C |
| Molybdenum | ≤0.25*C |
| Copper | ≤0.35*C |
| Titanium | ≤0.05 |
| Vanadium | ≤0.10 |
| Columbium | ≤0.04 |
| Vanadium plus Columnium | ≤0.12 |
| Aluminum | ≤0.06 |
| The Mechanical Properties of ASTM A860 | |||
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| WPHY 65 | 515-690 | 415 | 28% |
Material, Manufacture, Heat Treatment & Tests
The high-strength pipe fittings of ASTM A860 shall be made from fully killed fine-grain material made by a melting process that is intended to produce rounded, well dispersed, fine sulphide inclusions, that promote good notch toughness, assists in the resistance to hydrogen induced cracking, and for weldability suitable for field welding. The starting raw material may consist of plate, sheet, forgings, bar, seamless and fusion-welded pipes.

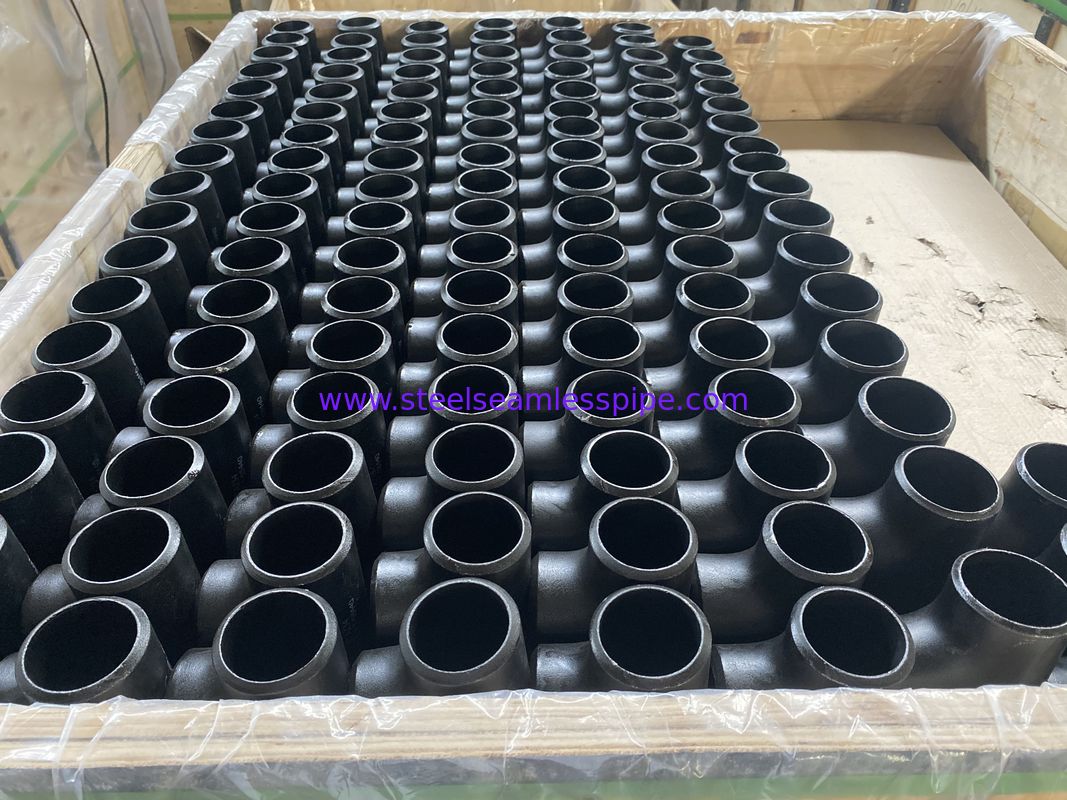

All fittings shall be heat treatment by one of the methods of normalizing, quenching, tempering or stress relieving. The regular tests & inspections mainly include radiographic examination, ultrasonic test, Charpy V-Notch test, hardness test, etc. Especially, butt-weld tees manufactured by cold forming process shall be liquid penetrant or magnetic particle examined.
Application :
