EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting

EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting

  • EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting
  • EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting
  • EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting
  • EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting
EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: 90DEGREE ELBOW EN10253-2 13CrMo4-5 TYPE A 508 * 17.5 MM BUTT WELDING PIPE FITTING
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
NDT: MT , PMI , RT Material: Carbon Steel
Shape: Elbow Connection: Welding
Technics: Butt Weld Type: Elbow,Nipple,Pipe Threaded,Reducer,elbow.tee
Standard: ANSI,DIN,ASME,JIS,gb And So On Color: Black
Thickness: STD,DIN,SCH40,SGP,sch10-xxs(2-60mm) Keyword: Pipe Fitting
High Light:

13CrMo4-5 90 Degree Hose Elbow

,

EN10253-2 90 Degree Hose Elbow

,

EN10253-2 Buttweld Fitting

90DEGREE ELBOW EN10253-2 13CrMo4-5 TYPE A 508 * 17.5 MM BUTT WELDING PIPE FITTING



We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



1 Scope
1.1 This part of EN 10253 specifies the technical delivery requirements for seamless and welded buttwelding fittings (elbows, concentric and eccentric reducers, equal and reducing tees, caps) made of austenitic and austenitic–ferritic (duplex) stainless steel without specific inspection requirements.
It specifies:

  • steel grades;
  •  mechanical properties;
  •  dimensions and tolerances;
  •  requirements for inspection and testing;
  •  inspection documents;
  •  marking;
  •  handling and packaging.
Specification EN 10253/1
EN 10253/2 Type A – reduced load factor
EN 10253/2 Type B – full load factor
Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Under Third Party Inspection Agency Like DNV, LLOYDS, SGS, TUV, ABS ETC / Laboratory Test Certificate From NABL Approved Lab.
Delivery Conditions As Normalized and Tempered - BR / N / Q /T, Machined, Rolled, Thermomechanical Rolled / Formed, Normalizing Rolled
Dimension Standard MSS SP44, ANSI B16.48, ANSI B16.36, ANSI B16.28, ANSI B16.47, ANSI B16.5
Make Process Rolled, Forged, Machining
Types EN 10253 Elbow
2d Outer Diameter & Wall Thickness Size 1/2" NB To 60" NB (Nominal Bore Size)
Wall Thickness: from 1 mm to 100 mm
Packaging Plastic End Caps / Bundle / Wooden Box / Loose / Plastic Cloth Wraps / Wooden Pallet / Beveled Protector





1.2 Limitation of use
The allowed pressures and temperatures are the responsibility of the customer according to the state of the art and in application of the safety coefficients in the application regulations, codes and standards. In common, joint coefficient is used in the calculation of the thicknesses of components which include one or several butt welds, other than circumferential:
for equipment subject to random non-destructive testing: 0,85;
for equipment not subject to non-destructive testing other than visual inspection: 0,7.
1.3 Unless otherwise specified in this part of EN 10253 the general technical delivery requirements in EN 10021 apply.



The En 10253-2 Fittings has certain technical delivery requirements such as the types, markings, the steel grade, the package, the dimensions and so on. It is easy for the customer to know the details by the specification. The Bend En 10253-2-type A is similar to the type A elbow but the bend is longer, eliminating the sudden pressure on the walls. The DIN En 10253 2 Type B Elbow is short and it can excerpt much pressure at turns. However, our BS En 10253-2 Type B Elbow and other fittings are made up of superior quality and undergo careful testing so that our customers can get the best products.



Dimension Chart Of En 10253-2 Type A Elbow

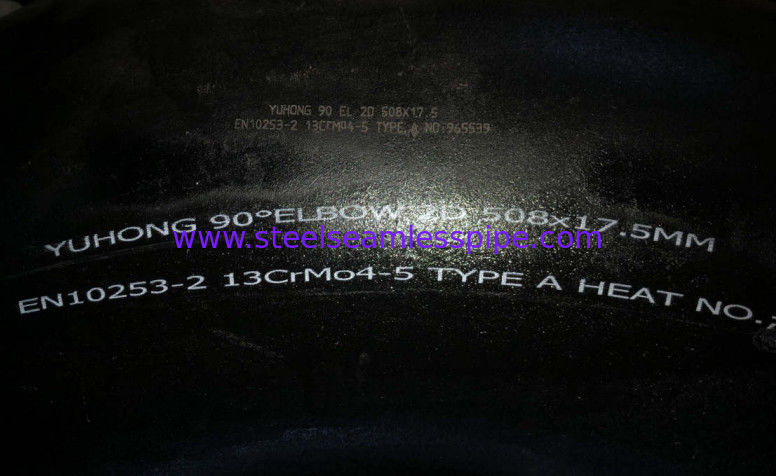

EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting 0

EN 10253-1, Bauart 3, 90°
DN D T F B
15 21,3 2,0 29 38
20 26,9 2,3 29 43
25 33,7 2,6 38 56
32 42,4 2,6 48 70
40 48,3 2,6 57 83
50 60,3 2,9 76 106
65 76,1 2,9 95 132
80 88,9 3,2 114 159
100 114,3 3,6 152 210
125 139,7 4,0 190 262
150 168,3 4,5 229 313
200 219,1 6,3 305 414
250 273,0 6,3 381 518
300 323,9 7,1 457 619



Application Of En 10253-2 Elbow

  • Gas Scrubbing Plants
  • Pulp and Paper Processing Industries
  • Seawater Cooling Devices
  • Wiring In Electrostatic Precipitators
  • Oil Refinery
  • Acetic, Phosphoric and Sulphuric Acid Processing Plants
  • Architectural railings

EN10253-2 13CrMo4-5 90 degree hose elbow Buttweld Fitting 1
